21/12/2024

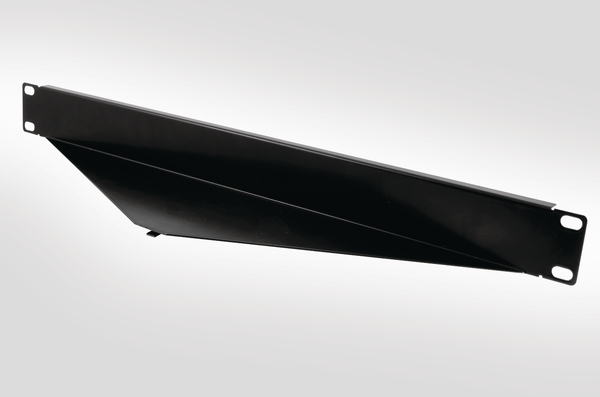

Angled Panel Horizontal Cover and 1U Blanking Panel
Art.-No. 854-40273 | APA-COVER1UCN |  Details

1U Angled Patch Panel Cover

    • Suitable for use with all HellermannTyton Angled Panels
    • Manufactured from 1.6mm matt black powder coated mild steel
    • 1U blanking panel to aid separation from other equipment
    • Supplied with Cage Nuts
    Add to watchlist
    Downloads
    Colour Black (BK)
    PART DESCRIPTION APA-COVER1UCN
    Package Content packed in box
    Product Description The HellermannTyton Horizontal Cover and 1U Blanking Panel is manufactured from 1.6mm matt balck powder coated mild steel and is ideally suited for use centrally within the rack or panel. Specifically designed to fit all HellermannTyton angled panels the horizontal cover and 1U blanking plate removes access to the rear cables and maintains the air flow integrity within the cabinet/rack. The horizontal cover and 1U blanking plate is supplied with Cage Nuts as standard, the panel is also available with a Rack Snap Mountings, 12 – 24 rack screws or without fixings if required.
    Product Family Angled Panel Horizontal Cover and 1U Blanking Panel
    Product Group Cable Management Accessories
    Short Description Angled Panel Horizontal Cover and 1U Blanking Panel
    Type APA-COVER1UCN

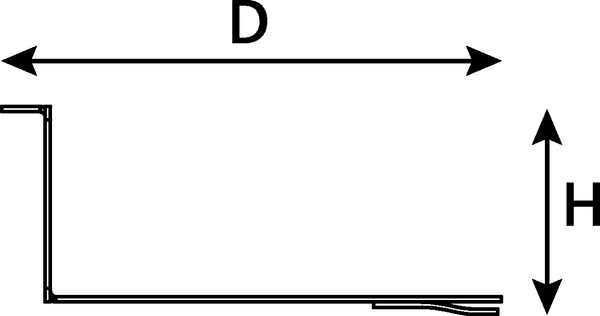

    Depth (D) 103mm
    Height (H) 44mm

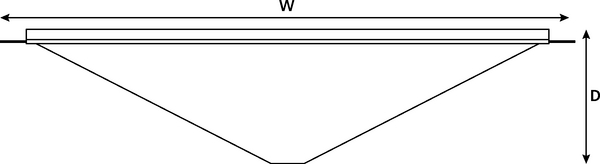

    Width (W) 483mm
    Country of Origin GB

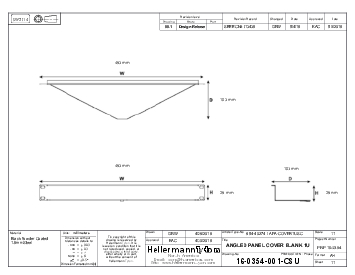

    Dimensions W x H x D 483 mm x 44 mm x 103 mm
    GTIN-13 / EAN 5022660123146
    ETIM 7.0 Key EC000022
    ETIM 8.0 Key EC000022
    ETIM 9.0 Key EC000022
