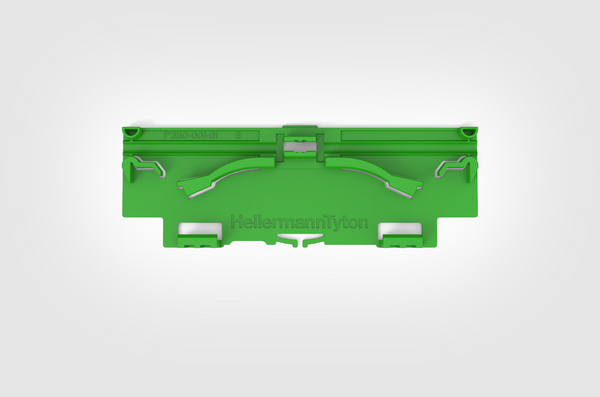

3A Splitter/Splice Protector Holders
Art.-No. 857-41018
| BRIDGE-3A/SP64-10
|
Details
- Used to secure different types of splice protector within the splice tray
- 9 options available for the most common applications
- Optical splitter/3A or ANT option
More products in this product group:
| Colour | Green (GN) |
| Material | Polyamide 6.6 (PA66), Polyamide 6.6 V0, UV-resistant (PA66V0UV), Polyamide 6.6 V0, UV-resistant (PA66V0W), Polyamide 6, UV-stabilised (PA6UV), Polyamide 6.6, UV-resistant (PA66W), Polyamide 6.6, UV-stabilised (PA66UV) |
| PART DESCRIPTION | BRIDGE-3A/SP64-10 |
| Pack Cont. | 10pcs. |
| Package Content packed in | bag |
| Product Family | Fibre Splice Tray Accessories |
| Product Group | 3A Splitter/Splice Protector Holders |
| Short Description | 3A Splitter/Splice Protector Holders |
| Splice Capacity | 2 |
| Technical Description | The Splice Protector Holders (Splice Bridges) are colour coded for easy identification and allow for different types of splice protectors in the tray. Inserts are suitable for use with HellermannTyton Hellipse NZDF-SE-A/SE-B, IR-SE and Hellapon Medium (Style C)/Small and Hellamass Large trays. The optical splitter splice bridges will accept 1 x 60 x 12 x 4mm optical splitters plus 2 3A splices. All trays accept 2 splice protector holders excluding the Hellamass Large which accepts 12 inserts. |
| Type | BRIDGE-3A/SP64-10 |
