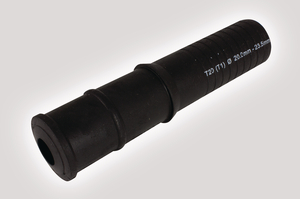

Cablelok T20 20.5-23.5mm x10
Art.-No. 857-50182 | CABLELOK-T20-10 |  Details

T Series Cablelok

    • Cable range coverage from 20.0mm to 23.5mm
    • Seals to in excess of 6m head of water
    • Highly repeatable installation - the quality of the seal is not dependant on the skill of the engineer
    • Ideal for use in hazardous areas as no heat or gas is required for installation
    • Supplied in multiples of 10
    • Supplied with installation lubricant sachets
    Show more
    Add to watchlist
    Downloads
    Cable ∅ max 23.5mm
    Cable ∅ min 20.0mm
    Colour Black (BK)
    Content 10 x CABLELOK-T20(T1), 20 x Lubricating Wipes
    Material Chloroprene Rubber (CR)
    PART DESCRIPTION CABLELOK-T20-10
    Pack Cont. 10pcs.
    Package Content packed in bag
    Port T
    Port count 1
    Product Description HellermannTyton’s patented Cablelok mechanical seal enables fast safe cable installation, providing a highly repeatable and consistent seal between the cable and the closure port with excellent non-leak performance. Tested to in excess of 6m head of water, the Cablelok does not rely on the skill and experience of the engineer to achieve the required seal, whilst installation times are typically reduced by up to 90%.
    Product Family T Port Series
    Product Group T Port Cablelok
    Short Description Cablelok T20 20.5-23.5mm x10
    Technical Description The T20 Port Cablelok is a mechanical seal manufactured from external grade flexible polychloroprene designed to be used with the range of HellermannTyton dome closures. The T20 cablelok provides a seal for cables within a cable range of 20.0mm – 23.5mm.
    Type CABLELOK-T20-10
    Variant Round - T
    Hazardous Goods No
    Country of Origin GB
    Customs Number 40169300
    GTIN-13 / EAN 5022660102349
    Packaging 1 - Height (m) 0.381m
    Packaging 1 - Length (m) 0.254m
    Packaging 1 - Qty 10
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0m³
    Packaging 1 - Weight (kg) 0.2kg
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000879
    ETIM 9.0 Key EC000879
    UNSPSC Key 43202218
    Cat6A & Cat6 Connectivity Cat6A & Cat6 Connectivity

    Cat6A & Cat6 Connectivity

    HellermannTyton offer an extensive range of connectivity solutions to meet the demands of any installation project. HellermannTyton provide a full end to end solution in Category 6A and Category 6 formats.

    Cat6A & Cat6 Connectivity >
    Cablelok Cablelok

    Cablelok

    Cablelok is a unique and patented 100% mechanical seal which provides the environmental sealing of cable entering a HellermannTyton closure. The sealing is achieved by a number of internal lip seals, which are compressed onto the cable during installation.

    Cablelok >
