CCP with 1 LC DX PC Adaptor
Art.-No. 857-01231 | CCPA-M11LX/BK-0 |  Details

Customer Connection Point.

    • 1 x LC/PC Duplex Adaptor
    • Fibre management for 2 x 3A or 2 x ANT splices

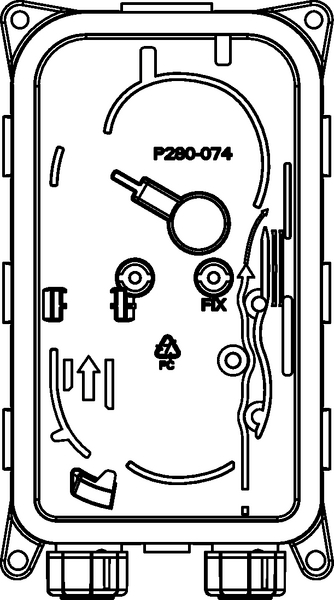

    • Integral positive fibre management and fibre storage capacity

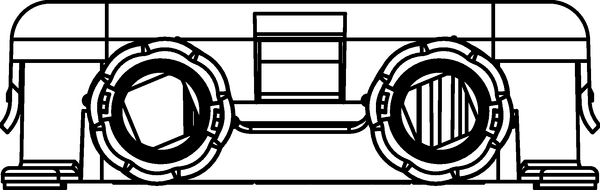

    • Separate inbound/outbound access points
    • Cable entry seal 4.0 - 6.0mm

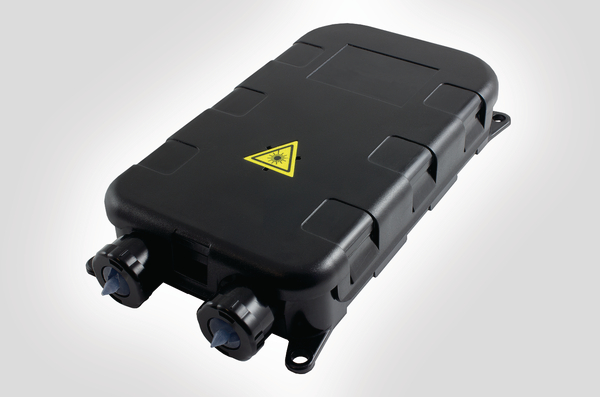

    • Fully detachable snap on lid
    • IP68/IK08 Rated
    Show more
    Add to watchlist
    Downloads CAD-Download
    Application The Customer Connection Point closure has been designed to be used as an external building entry point. The closure can be wall/facade mounted or put in to a buried chamber (located at the property boundary or just outside the point of access) providing an external building entry point and network test point.
    Cable ∅ max 6.0mm
    Cable ∅ min 4.0mm
    Colour Black (BK)
    Connector Colour Blue (BU)
    Content 1 x LC/PC Duplex Adaptor
    Cable Entry Kit 4.0 - 6.0mm
    Breather Membrane
    Laser Label
    Material Polycarbonate (PC)
    PART DESCRIPTION CCPA-M11LX/BK-0
    Package Content packed in box
    Product Description 1 LC DX PC Adaptor.
    Product Family Fibre Optic External Enclosure
    Product Group Customer Connection Point
    Short Description CCP with 1 LC DX PC Adaptor

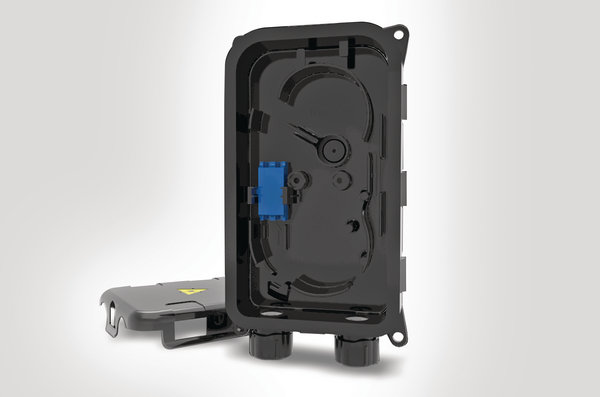

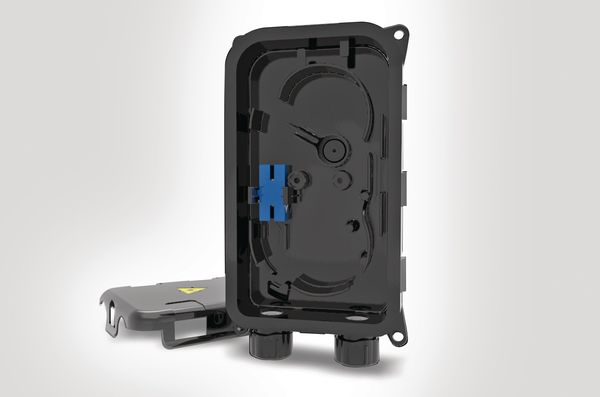

    Technical Description The Customer Connection Point (CCP) is manufactured from V0 and UV stable black polycarbonate and has a fully detachable snap on lid. The closure has 2 separate cable access points which are sealed with a silicon cable entry kit (cable diameter range 4.0mm - 6.0mm) to maintain the IP68 rating. A gortex breather membrane is fitted to the lid to prevent condensation forming in the base of the closure. The CCP can also be surface mounted to the wall with an optional sealed rear cable entry/exit point enabling the drop cable to pass directly into the premises. The unit is supplied with 1 x LC/PC Duplex adaptor and provides splice management for 2 x 3A or 2 x ANT splices. Internal fibre management features ensure that a 30mm minimum bend radius is maintained within the closure and provides fibre storage capacity for any excess fibre.
    Type CCPA-M11LX/BK-0
    Variant Outdoor FTTx Enclosures

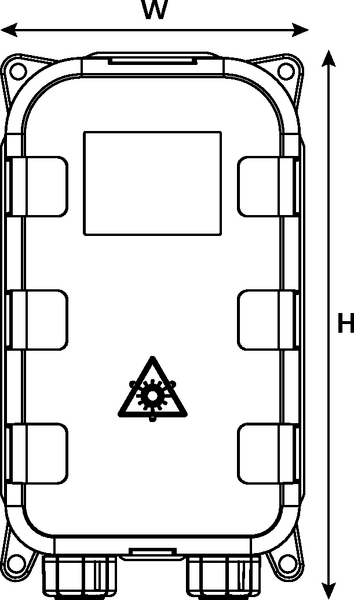

    Depth (D) 28mm
    Height (H) 160mm
    Width (W) 89mm
    Country of Origin GB
    GTIN-13 / EAN 5022660157899
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    ETIM 7.0 Key EC001124
    ETIM 8.0 Key EC001124
    ETIM 9.0 Key EC001124
