CFNIRS 19 Port M Length Closure with 24 Compact SC-B 3A Trays
Art.-No. 857-02525 | CFNIRS-MXBDXW | Details

M-Length 19 Port CFN with Compact SE-IR Trays.

Maximum 288 fibre splice capacity
18 round ports and 1 oval port
Foam Entry Block
Positive fibre management to ensure consistent 15mm bend radius throughout
Fibre storage basket for loop through applications
Bi-directional fibre routing
Supplied with 24 SC-B IR 3A Splice Trays
Maximum 12 splices per tray
Splitter accommodation
Cablelok compatible for all port sizes
Quick release cover
Optional pressure release valve

Add to watchlist

Distributors near you

Downloads

More products in this product group:

CFNIRS 19 Port Integrated Routing Closure >

Base Data

Cable ∅ max	16.5mm
Cable ∅ min	2.5mm
Colour	Black (BK)
Content	CFN 19 Port Base M Length Cover Quick Release Clamp Sealing 'O' Ring Fibre Optic Routing Module Fibre Optic Storage Unit with Foam Entry Block Fibre Optic Storage Unit Lid 24 x SC-B IR 3A Compact Splice Trays Tray Lid Anchor Fixing Kit (2) Fibre Pricker Hook and Loop Management Ties Installation Guide
Cover Type	M
Material	Polypropylene, UV-resistant (PPUV), Polyamide 6.6, glass-fibre reinforced (PA66GF60)
Method of Sealing	Cablelok
PART DESCRIPTION	CFNIRS-MXBDXW
Package Content packed in	box
Port	LM, B, D
Port count	1, 2, 16
Product Family	M Length
Product Group	CFNIRS 19 Port Integrated Routing Closure
Qty Trays	24
Short Description	CFNIRS 19 Port M Length Closure with 24 Compact SC-B 3A Trays
Splice Capacity	288

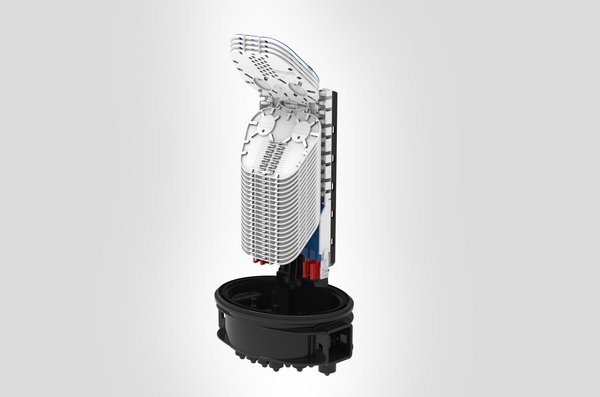

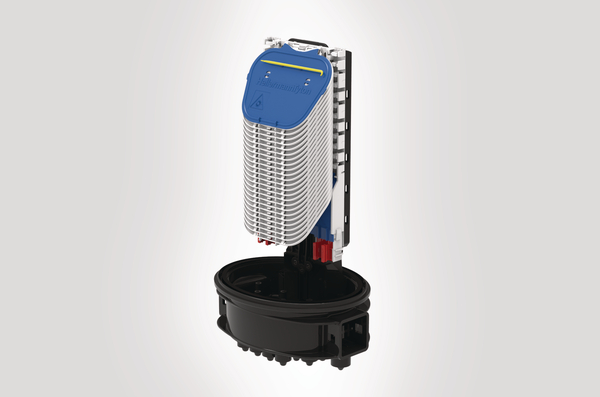

Technical Description	The CFNIRS 19 Port Integrated Routing (IR) M length closure is supplied with a foam entry block, a loop storage basket, IR Fibre Management system and splice trays. The base configuration of 18 round ports and 1 oval port covers a cable diameter range of 4.0 – 16.5mm when using Cablelok mechanical seals. The mounting system is manufactured from glass filled nylon and is supplied with 24 SC-B IR CFN 3A splice trays. The position of the mounting system allows easy access for the routing of fibre on to the trays and the basket provides storage space for the storage of fibre loops. The trays and fibre routing module are white which makes it easy to see the colour of the fibre elements as they are routed through the positive fibre management system. The fibre entry block has dedicated PLC splitter accommodation for a maximum of 2 x 250µm bare end PLC splitters and fibre management for fibre direction changes and storage of excess fibre. Fibre retention guides manage the fibre elements into the IR system. All IR system cover parts are coloured blue identifying them as removable parts allowing access to the fibre. The CFN IR single circuit tray is manufactured from ABS and has 2 moulded 3A splice positions at the front of the tray providing a maximum splice capacity of 12 x 3A (heatshrink) splice protectors upto 60mm long.
Type	CFNIRS-MXBDXW
Type of Tray	Compact SC-B
Variant	Outdoor FTTx Enclosures

Product Dimensions

Cable Size Max. (Imperial)	0.65
Cable Size Max. (metric)	16.5
Cable Size Min. (Imperial)	0.09
Cable Size Min. (metric)	2.5

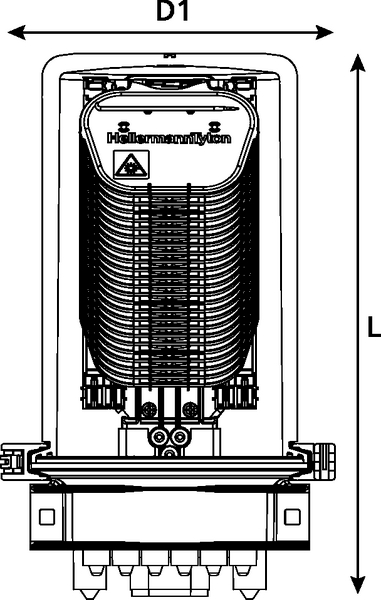

Length (L)	410mm
Length (mm)	410mm
Width D1	250mm
Width D1	9.85"

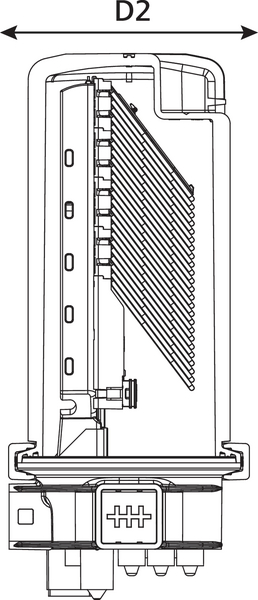

Width D2	7.09"
Width D2	180mm

Downloads

Specifications

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660193941
Packaging 1 - Height (m)	0.25m
Packaging 1 - Length (m)	0.45m
Packaging 1 - Qty	1
Packaging 1 - Type	box
Packaging 1 - Volume (m³)	0.02003m³
Packaging 1 - Weight (kg)	2.8kg
Packaging 1 - Width (m)	0.178m
