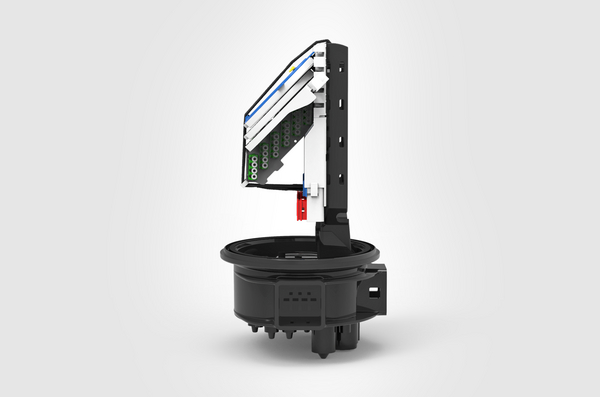

CFN Connectorised Closure with LC/APC Connections.

Maximum 24 LC/APC Connections
Maximum 52 fibre splice capacity
26 round ports and 1 oval port

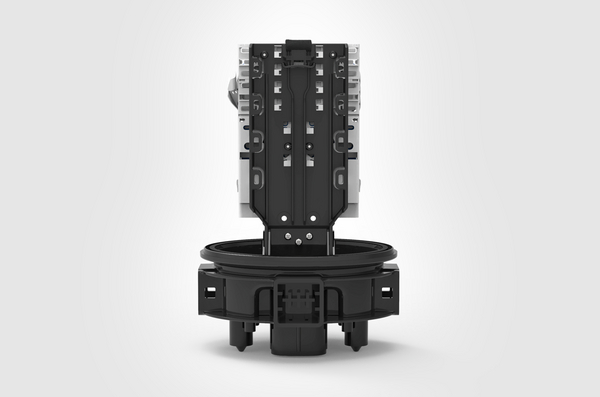

Foam Entry Block

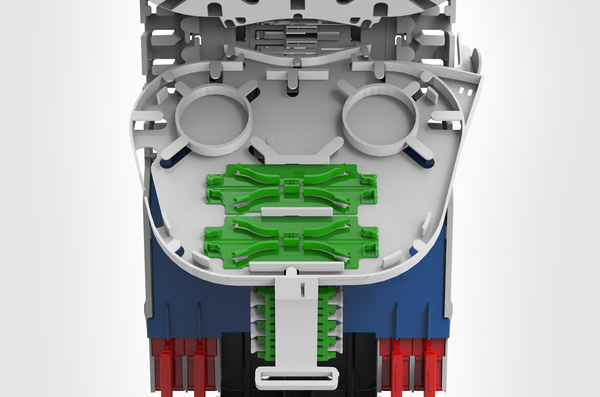

Positive fibre management to ensure consistent 15mm bend radius throughout
Fibre storage basket for loop through applications

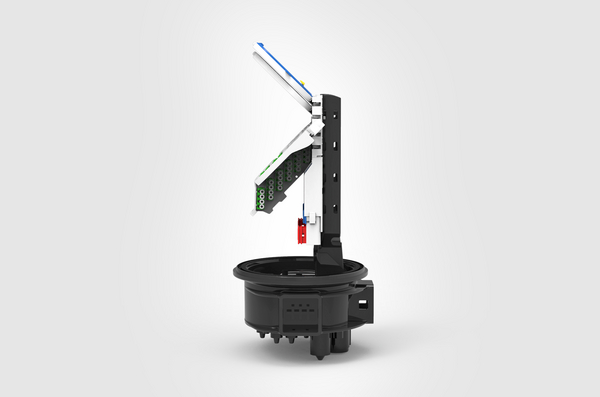

Bi-directional fibre routing

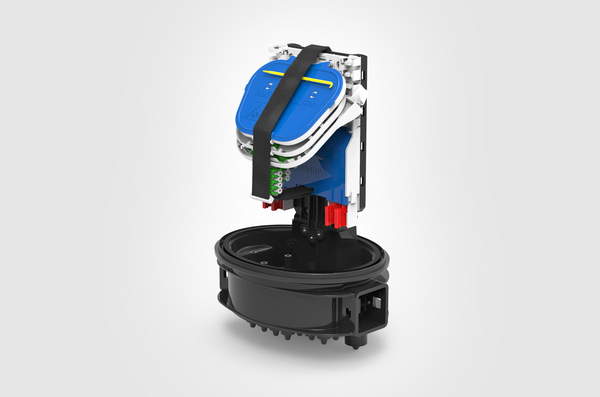

Supplied with 2 SE-IR 3A Splice Trays
Maximum 24 splices per tray (double stacked)

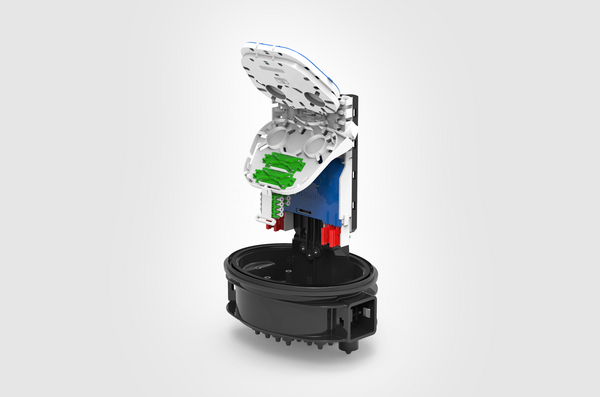

Additional off tray splitter accommodation
Cablelok compatible for all port sizes
Quick release cover
Optional pressure release valve

Add to watchlist

Distributors near you

Downloads

More products in this product group:

CFNIRS 27 Port Connectorised Closure >

Base Data

Cable ∅ max	16.5mm
Cable ∅ min	1.7mm
Colour	Black (BK)
Content	LC/APC Quad Adaptors (6) 1:8 Bare End to LC/APC PLC Splitters (3) Connectorised Tray CFN 27 Port Base S Length Cover Quick Release Clamp Sealing 'O' Ring Fibre Optic Routing Module Fibre Optic Storage Unit with Foam Entry Block Fibre Optic Storage Unit Lid SE-IR 3A Compact Splice Trays (2) Tray Lid Anchor Fixing Kit (2) Fibre Pricker Hook and Loop Management Ties Installation Guide
Cover Type	S
Material	Polypropylene, UV-resistant (PPUV), Polyamide 6.6, glass-fibre reinforced (PA66GF60)
Method of Sealing	Cablelok
PART DESCRIPTION	CFNIRS-SXBBWX-CT24-LC/APC
Package Content packed in	box
Port	LM, B, R
Port count	1, 2, 24
Product Family	S Length
Product Group	CFNIRS 27 Port Connectorised Closure
Qty Trays	Connectorised Tray x 1 SE-IR 3A Splice Tray x 2
Short Description	CFNIRS 27 Port S Length with 2 Compact SE-IR Trays and LC/APC Connectorised Tray
Splice Capacity	52
Technical Description	The CFN 27 Port Connectorised M length closure is supplied with an IR foam entry block, a loop storage basket, IR Fibre Management system, connectorised tray and 3A splice trays. The base configuration of 26 round ports and 1 oval port covers a cable diameter range of 1.7 – 16.5mm when using Cablelok mechanical seals. The mounting system is manufactured from glass filled nylon and is supplied with a single connectorised tray and 2 SE-IR CFN 3A splice trays. The position of the mounting system allows easy access for the routing of fibre on to the trays and the basket provides storage space for the storage of fibre loops. The trays and fibre routing module are white which makes it easy to see the colour of the fibre elements as they are routed through the positive fibre management system. The fibre entry block has additional dedicated PLC splitter accommodation for a maximum of 2 x 250μm bare end PLC splitters and fibre management for fibre direction changes and storage of excess fibre. Fibre slot retaining blocks guide the fibre elements into the IR system, the foam pad on the retainer is partially cut through to accommodate a range of fibre counts. All IR system cover parts are coloured blue identifying them as removable parts allowing access to the fibre. The fibre slot retaining clips are coloured red to aid in identification if they are dropped. The CFN Connectorised tray is manufactured from ABS and is fitted with 2 x PLC/3A splice protector inserts, 6 LC/APC quad adaptors and 3 x 1:8 bare end to LC/APC PLC splitters. The CFN IR single element trays is manufactured from ABS and is fitted with 2 x 3A splice protector inserts which are positioned at the front of the tray providing a maximum splice capacity of 24 double stacked 3A (heatshrink) splice protectors up to 60mm long.
Type	CFNIRS-SXBBWX-CT24-LC/APC
Type of Tray	Compact Connectorised
Variant	Outdoor FTTx Enclosures

Product Dimensions

Cable Size Max. (metric)	16.5
Cable Size Min. (metric)	1.7
Length (L)	335mm
Length (mm)	335mm

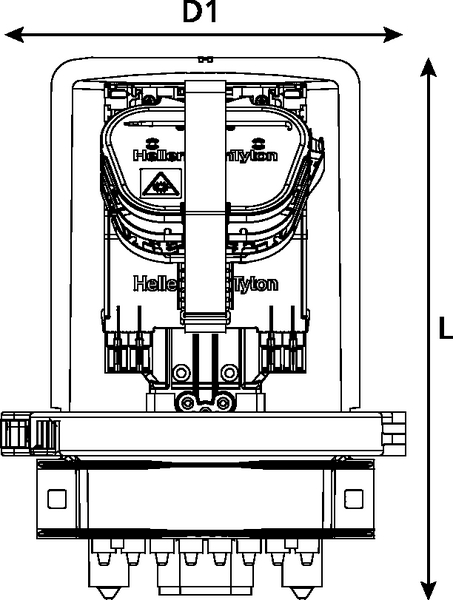

Width D1	250mm

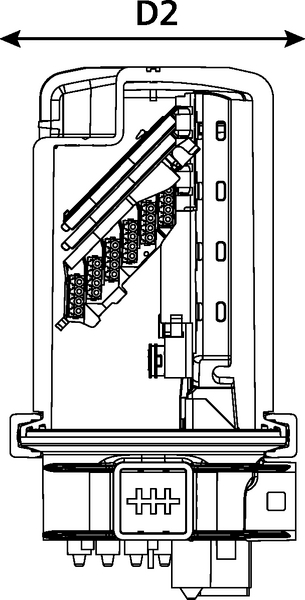

Width D2	180mm
