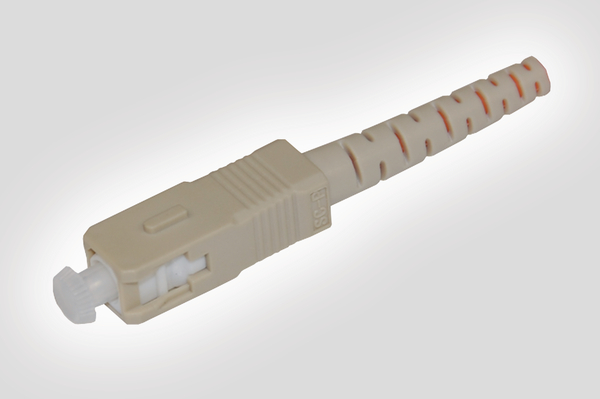

Multimode SC Simplex Connector
Art.-No. 855-10029 | FBCMMBG-SCXXSX-3.0WH |  Details

SC Multimode Simplex Connectors

    • Features keyed connector to ensure secure mating into the adaptor
    • Suitable for 2-3mm cables
    • Connectors supplied in separate bags
    • Available with 0.9mm or 3.0mm boot
    Add to watchlist
    Downloads
    Colour Beige (BGE)
    Local order number FBCMMBG-SCXXSX-3.0WH
    PART DESCRIPTION FBCMMBG-SCXXSX-3.0WH
    Pack Cont. 1pc.
    Performance Category Multimode
    Port count 1
    Product Description The SC Connector is a proven design which is widely used in modern optical fibre systems and is keyed to ensure correct orientation on insertion.
    Product Family Multimode SC Simplex Connector
    Product Group Fibre Connectors
    Short Description Multimode SC Simplex Connector
    Technical Description The Multimode SC Simplex Connectors are supplied in individual bags including the connector, dust cover and a 0.9mm or 3.0mm boot. All fibre adaptors and connectors comply with the IEC874-14 standard ensuring inter-operability.
    Type FBCMMBG-SCXXSX-3.0WH
    Depth (D) 44mm
    Height (H) 9.4mm
    Width (W) 15mm
    Dimensions W x H x D 15 mm x 9.4 mm x 44 mm
    GTIN-13 / EAN 5022660869693
    ETIM 7.0 Key EC000034
    ETIM 8.0 Key EC000034
    ETIM 9.0 Key EC000034
