SC Fibre Panels
Art.-No. 855-00218 | FBPDBKL-SCMMDX-24VF1 | Details

Distributors near you

More products in this product group:

Colour	Black (BK)
Connector Colour	Beige (BGE)
Connector Type	SC
Local order number	FBPDBKL-SCMMDX-24VF1
PART DESCRIPTION	FBPDBKL-SCMMDX-24VF1
Performance Category	Multimode
Port count	48

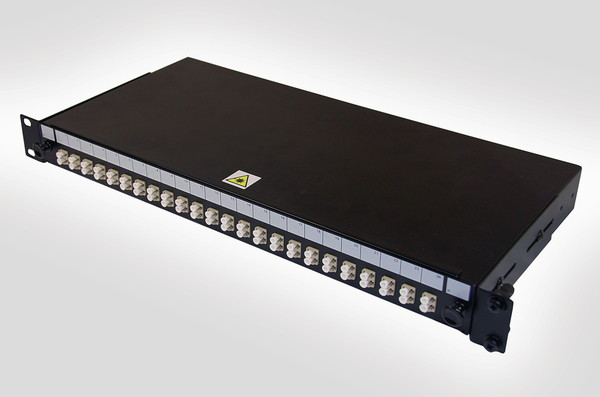

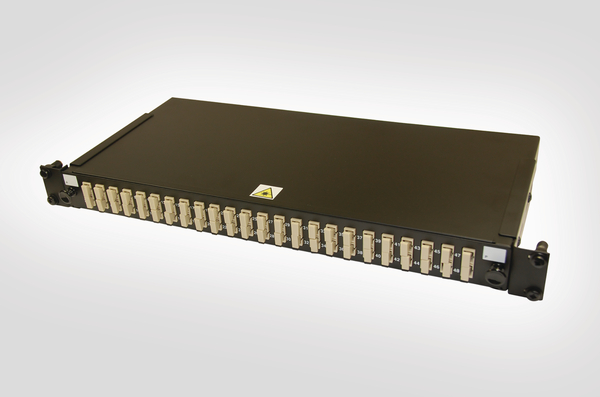

Product Description	The 19" sliding drawer patch panel with 24 vertical slots for SC adaptors (simplex or duplex). The panel is supplied pre-loaded with the required adaptors with any unused slots fitted with blanking plugs, each fibre port is numbered separately to make identification easier.
Product Family	1U 48 Fibre Multimode Panel
Product Group	SC Fibre Panels
Technical Description	The SC Multimode Fibre Panel presents up to a maximum of 48 SC fibres (using SC Duplex Adaptors) in 1U of space. The 1U sliding drawer can be locked into position using two simple to operate catches. When fully extended the drawer is designed to lower to 45° giving access to the panel. The drawer can also be locked to a lower maximum of 10°, providing the perfect working platform during installation and maintenance, by sliding the drawer sideways. The rear drawer offers a number of cable options including 4 x 10mm and 2 x 20mm gland holes and has an open section in the centre for specialist cables and patch leads. In addition the base of the tray has cable securing points and cable management holes for securing Fibre Optic Management (FOM). Adjustable mounting ears allow the panel to be positioned within the rack or frame.
Type	FBPDBKL-SCMMDX-24VF1
