FDN 16 port B length IR closure with basket and 48 x SC-B-IR MKII moulded splice holder trays
Art.-No. 857-02191 | FDNIR-BXBAXP | Details

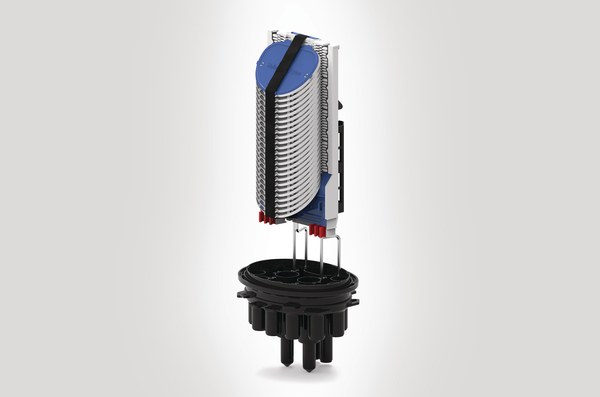

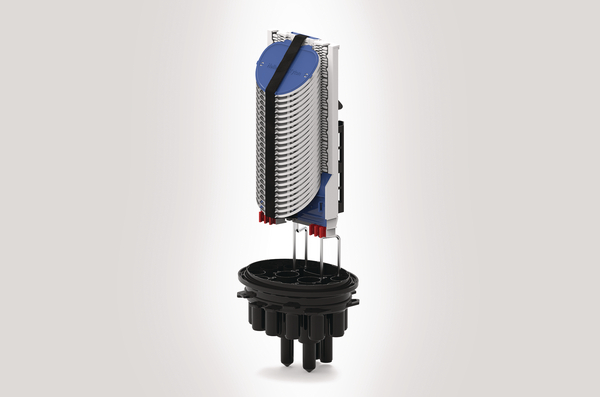

FDN IR 16 Port B-Length Closure with Basket.

Maximum 576 fibre splice capacity when using SC-B tray
15 round ports and 1 oval port
Moulded supports allow the cover to be removed whilst closure is left in-situ
Fixing points for external cable management attachments
Positive fibre management to ensure consistent 15mm bend radiusi throughout
Fibre storage basket for loop through applications
Bi-directional fibre routing
Supplied with 48 x SC-B-IR MKII Moulded Splice Holder Trays
Maximum 12 splices per tray
Cablelok compatible for all port sizes
Quick release cover
Optional pressure release valve

Add to watchlist

Distributors near you

Downloads

More products in this product group:

FDN 16 Port Integrated Routing Closure >

Base Data

Colour	Black (BK)
Content	FDN 16 Port IR Base B-Length Cover Quick Release Clamp Sealing ‘O’ Ring Fibre Storage Basket Fibre Optic Routing Module Fibre Optic Storage Unit Fibre Optic Storage Unit Lid Fibre Slot Entry Module Fibre Slot Retaining Block 48 x SC-B-IR MKII Moulded Splice Holder Trays Reusable Cable Ties Tray Lid Tray Tool Anchor Fixing Kit (3) Spiral Binding Isopropyl Alcohol Wipes Desiccant Installation Guide Marker Kit Red Marker 1 – 48 Green Marker 1 – 48

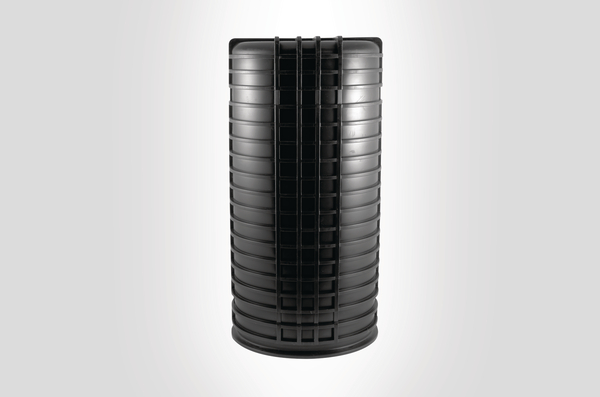

Cover Type	B
Material	Polypropylene (PP)
Method of Sealing	Cablelok, Heatshrink
PART DESCRIPTION	FDNIR-BXBAXP
Port	L, T, B, S
Port count	1, 2, 9, 4
Product Family	B Length with Basket
Product Group	FDN 16 Port Integrated Routing Closure
Qty Trays	48
Short Description	FDN 16 port B length IR closure with basket and 48 x SC-B-IR MKII moulded splice holder trays
Splice Capacity	576
Technical Description	The FDN 16 Port Integrated Routing (IR) B Length closure with basket is supplied with a Polypropylene base. The base configuration of 15 round ports and 1 oval port covers a cable diameter range of 4.8 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The moulded supports on the base allow the cover to be removed from the closure whilst it is still in-situ. Bosses moulded in to the closure base enable fixing of cable management attachments. The mounting system is manufactured from Grade 304 stainless steel and the backplane is an aluminium extrusion which manages 48 x SC-B-IR MKI moulded splice holder trays. The position of the mounting system allows easy access for the routing of the fibre on to the trays and the basket provides storage space for the storage of fibre loops. The trays and fibre optic routing module are white which makes it easy to see the colour of the fibre elements as they are routed through the positive fibre management system. Fibre slot retaining blocks guide fibre elements in to the IR system; the foam pad on the retainer is partially cut through to accommodate a range of fibre counts. All IR system cover plates are coloured blue identifying them as removable parts allowing access to the fibre, the fibre slot retaining block and tray retaining clips are coloured red to aid in identification if they are dropped.
Type	FDNIR-BXBAXP
Type of Tray	Integrated Routing SC-B MKII
Variant	Outdoor FTTx Enclosures

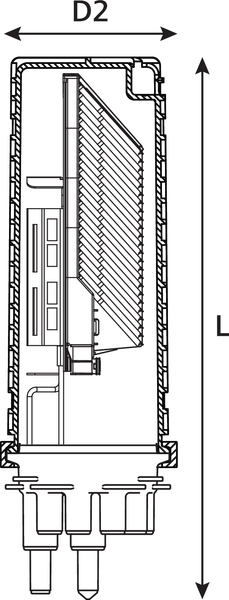

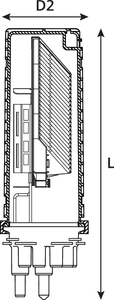

Product Dimensions

Length (L)	663mm
Length (mm)	663mm
Width D1	312mm
Width D2	222mm

Downloads

Specifications

Logistics and Packaging

Country of Origin	GB
Customs Number	85176200
GTIN-13 / EAN	4031026688886
Packaging 1 - Height (m)	0.72m
Packaging 1 - Length (m)	0.32m
Packaging 1 - Qty	1
Packaging 1 - Type	box
Packaging 1 - Volume (m³)	0.07373m³
Packaging 1 - Weight (kg)	7.20kg
Packaging 1 - Width (m)	0.32m
