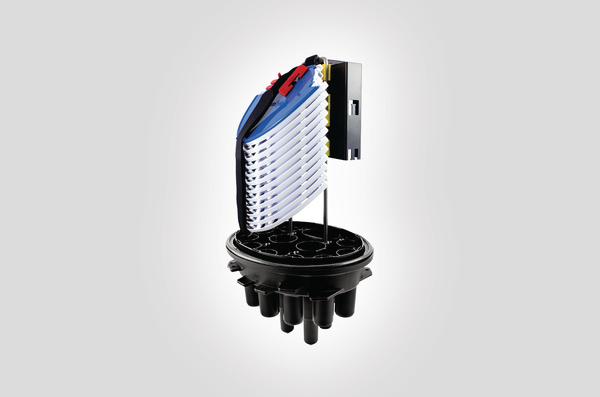

FDN 16 port A length tubed closure with basket and 12 NZDF SE-A trays fitted with 2 x 3A splice bridges
Art.-No. 857-01034 | FDNTB-AXBAD21 | Details

FDN 16 Port A-Length Closure with Basket

Maximum 144 fibre splice capacity
15 round ports and 1 oval port
Moulded supports allow the cover to be removed whilst closure is in-situ
Fixing points for external cable management attachments
Fibre storage basket for loop through applications
Supplied with 12 NZDF SE-A Trays fitted with 2 x 3A (Green) splice protector inserts
Splitter accommodation
Cablelok compatible for all port sizes
Quick release cover
Optional flash test valve and/or grounding feed through

Add to watchlist

Distributors near you

Downloads

More products in this product group:

FDN 16 Port Tubed Closure >

Base Data

Colour	Black (BK)
Content	FDN 16 Port Base A-Length Cover (Dome) Quick Release Clamp Sealing ‘O’ Ring Fibre Storage Basket Tray Support Frame Anchor Fixing Kit (3) 12 x NZDF SE-A 3A Splice Trays Tray Tool Hook and Loop Securing Strap Transportation Tubing Tubefix – Tube to Tray Securing Blocks Hook and Loop Management Ties Isopropyl Alcohol Wipes Desiccant Installation Guides Marker Kit Red Marker 1 – 12 Green Marker 1 – 12
Cover Type	A
Method of Sealing	Cablelok, Heatshrink
PART DESCRIPTION	FDNTB-AXBAD21
Package Content packed in	kit
Port	L, T, B, S
Port count	1, 2, 4, 9
Product Family	A Length with Basket
Product Group	FDN 16 Port Tubed Closure
Qty Trays	12
Short Description	FDN 16 port A length tubed closure with basket and 12 NZDF SE-A trays fitted with 2 x 3A splice bridges
Splice Capacity	144
Technical Description	The FDN 16 Port A Length closure is supplied with a Polypropylene base. The base configuration of 15 round ports and 1 oval port covers a cable diameter range of 4.8 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The moulded supports on the base allow the cover to be removed from the closure whilst it is still in-situ. Bosses moulded in to the closure base enable fixing of external cable management attachments. The mounting system is manufactured from Grade 304 stainless steel and the backplane is an aluminium extrusion which manages 12 NZDF SE-A 3A Splice Trays. The tube closure and the position of the mounting system allow for ease of access and traceability of the fibre on to the trays and the basket provides storage space for the storage of fibre loops. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system.
Type	FDNTB-AXBAD21
Type of Tray	Hellipse NZDF SE-A
Variant	Outdoor FTTx Enclosures

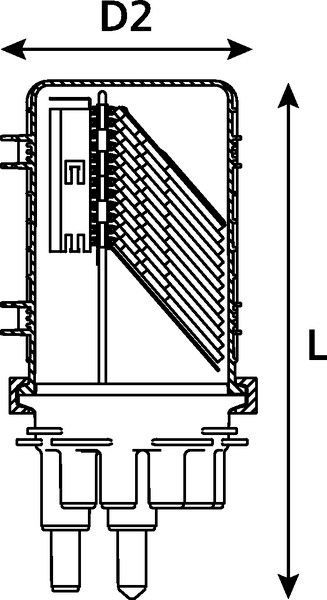

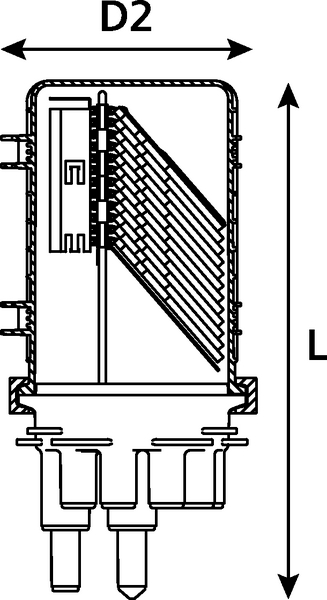

Product Dimensions

Length (L)	455mm
Length (mm)	455mm
Width D1	312mm
Width D2	222mm

Downloads

Specifications

Hazardous Goods

Logistics and Packaging

Country of Origin	GB
Customs Number	85176200
GTIN-13 / EAN	5022660133480
Packaging 1 - Height (m)	0.32m
Packaging 1 - Length (m)	0.5m
Packaging 1 - Qty	1
Packaging 1 - Type	box
Packaging 1 - Volume (m³)	0.0512m³
Packaging 1 - Weight (kg)	5.2kg
Packaging 1 - Width (m)	0.32m
