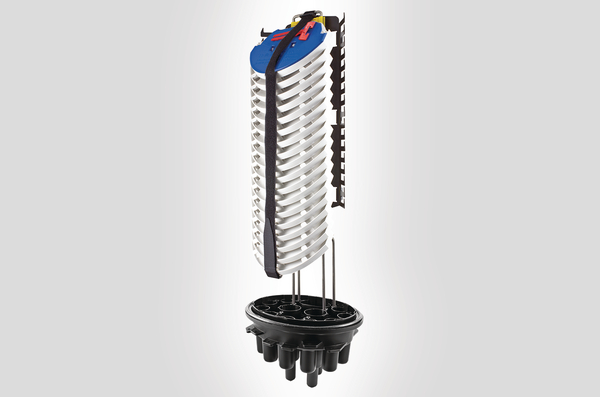

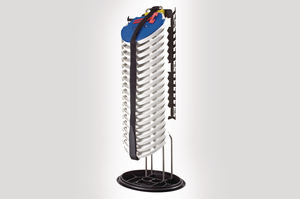

FDN 16 port A length tubed closure with basket and 18 x multi-ribbon moulded splice holder trays
Art.-No. 857-01043 | FDNTB-CXRAR67 | Details

FDN 16 Port C-Length Ribbon Closure with Basket

Maximum 216 (8 or 12 fibre) ribbon cable splice capacity
15 round ports and 1 oval port
Moulded supports allow the cover to be removed whilst the closure is in-situ
Fixing points for external cable management attachments
Supplied with 18 x Multi-Ribbon Moulded Splice Holder Trays
Maximum of 12 (8 or 12 fibre) ribbon cable splices per tray
Fibre storage basket for loop through applications supplied as standard
Cablelok compatible for all port sizes
Quick release cover
Optional flash test valve and/or grounding feed-through

Add to watchlist

Distributors near you

Downloads

More products in this product group:

FDN 16 Port Tubed Closure >

Base Data

Colour	Black (BK)
Content	FDN 16 Port Base C-Length Cover (Dome) Quick Release Clamp Sealing ‘O’ Ring Fibre Storage Basket Tray Support Frame Anchor Fixing Kit (3) 18 x Multi-Ribbon Trays Tray Tool Hook and Loop Securing Straps Isopropyl Alcohol Wipes Desiccant Installation Guide
Cover Type	C
Method of Sealing	Cablelok, Heatshrink
PART DESCRIPTION	FDNTB-CXRAR67
Package Content packed in	kit
Port	L, T, B, S
Port count	1, 2, 4, 9
Product Family	C Length with Multi-Ribbon Tray with Basket
Product Group	FDN 16 Port Tubed Closure
Qty Trays	18
Short Description	FDN 16 port A length tubed closure with basket and 18 x multi-ribbon moulded splice holder trays
Splice Capacity	216
Technical Description	The FDN C Length closure is supplied with a Polypropylene base. The base configuration of 15 round ports and 1 oval port covers a cable diameter range of 4.8 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The moulded supports on the base allow the cover to be removed from the closure whilst it is still in-situ. Bosses moulded in to the closure base enable fixing of external cable management attachments. The mounting system is manufactured from Grade 304 stainless steel and the backplane is an aluminium extrusion which manages 18 Multi-Ribbon cable trays giving a maximum splice capacity of 216 (8 or 12 fibre) ribbon cables based on 12 ribbon cable splices per tray. The tubed closure and position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white with a clear cover which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays. The Multi-Ribbon tray can also accommodate 3A splices when used with the appropriate tubefix connectors and transport tubing (See Chapter 13 – Accessories).
Type	FDNTB-CXRAR67
Type of Tray	Multi-Ribbon

Product Dimensions

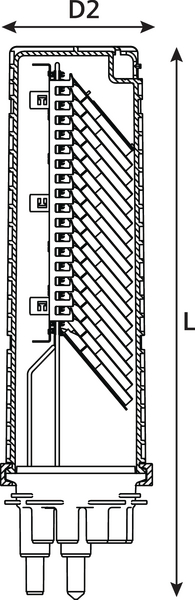

Length (L)	789mm
Length (mm)	789mm
Width D1	312mm
Width D2	222mm

Downloads

Specifications

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660133589
Packaging 1 - Height (m)	0.318m
Packaging 1 - Length (m)	0.858m
Packaging 1 - Qty	1
Packaging 1 - Type	box
Packaging 1 - Volume (m³)	0.09031m³
Packaging 1 - Weight (kg)	8.2kg
Packaging 1 - Width (m)	0.331m
