Unloaded FFE designed for 8 LC SX Adaptors
Art.-No. 857-01802 | FFE08-04LCXXXX1/BK |  Details

FFE 8 Way

    • Maximum capacity: 8 LC Simplex Adaptors
    • 4 Inbound/8 Outbound ports
    • Separation of inbound fibre from connectorised drop cables
    • Positive fibre management to maintain consistent 30mm minimum bend
    • PLC splitter accommodation (60mm x 7mm x 4mm)
    • Supports 3A and ANT splice protector types
    • IP55 and IK08 rating
    • Pole or building/facade mounted
    Show more
    Add to watchlist
    Downloads CAD-Download
    Application The Fibre Facade Enclosure has been designed to provide a Fibre Connection Point. The closure can be building/facade or pole mounted and provides 8 or 12 SC or LC Simplex customer connection points.
    Cable ∅ max 16mm
    Cable ∅ min 8.1mm
    Colour Black (BK)
    Content Fibre Facade Enclosure
    Fibre Splice Tray and Management System
    Incoming Cable Seal - Maximum Cable Diameter 16mm
    Drop Cable Seals - Maximum Cable Diameter 8mm
    Material Polycarbonate, UV-stabilised (PCUV)
    PART DESCRIPTION FFE08-04LCXXXX1/BK
    Package Content packed in box
    Product Family Fibre Optic External Enclosure
    Product Group Fibre Facade Enclosure
    Short Description Unloaded FFE designed for 8 LC SX Adaptors

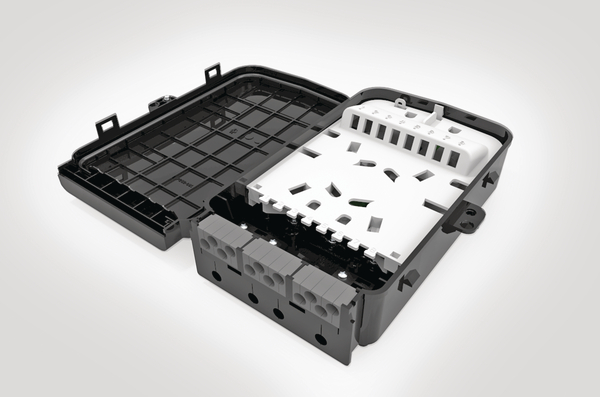

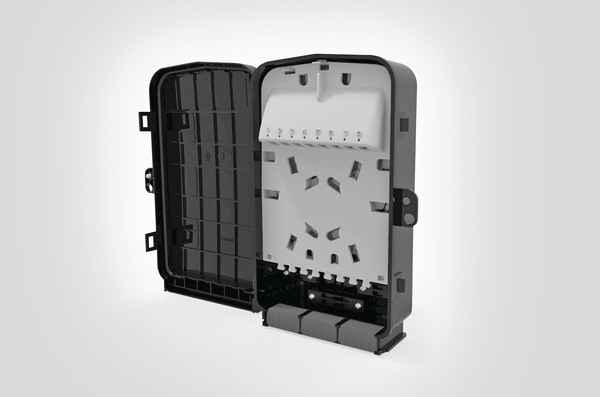

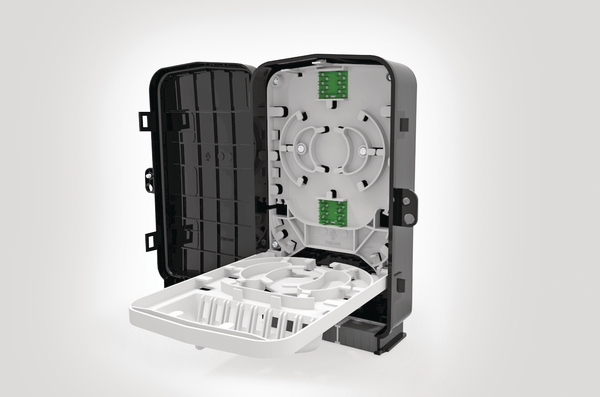

    Technical Description The Fibre Facade Enclosure (FFE) is manufactured from UV stable black polycarbonate with a completely detachable lid which can also be snapped back in to position using the snap back hinges allowing unrestricted access to all fibre management areas. The enclosure has 3 separate management areas for inbound cable, fibre splice management and drop cable (customer connection) management. The inbound cable management area has a dedicated cable entry port which supports both cable end and mid-span applications with loop storage capacity for up to 1.5m* of excess fibre and the entry port is sealed with a cable entry kit to maintain the IP55 rating. The fibre splice management area has capacity for a maximum of 12 x 3A or 24 ANT splices and maintains positive fibre management (30mm minimum bend radius) throughout. The tray has a crossover facility which allows for alternative routing requirements and a fibre storage capacity of 1.5m for 250µm fibre and 1.0m of 900µm fibre. The drop cable management area accommodates 8 LC Simplex adaptors for connection to industry standard pre-terminated drop cables and a PLC splitter (60mm x 7mm x 4mm) can be fitted on the inside of the management area. The drop cable management area cover prevents access to the network cables and splicing area and the adaptors are angled and spaced to allow for inspection prior to connection. Anchor guides are provided for securing the drop cables (maximum diameter 8.0mm) and an integral seal maintains the IP55 rating.
    Type FFE08-04LCXXXX1/BK
    Depth (D) 71.6mm
    Height (H) 241mm
    Width (W) 161mm
    Country of Origin GB
    GTIN-13 / EAN 5022660171383
    ETIM 7.0 Key EC001124
    ETIM 8.0 Key EC001124
    ETIM 9.0 Key EC001124
