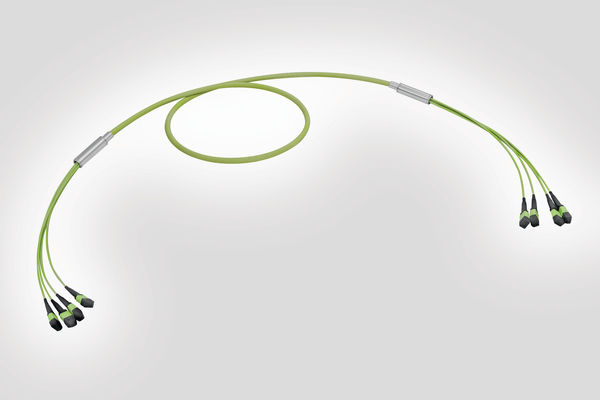

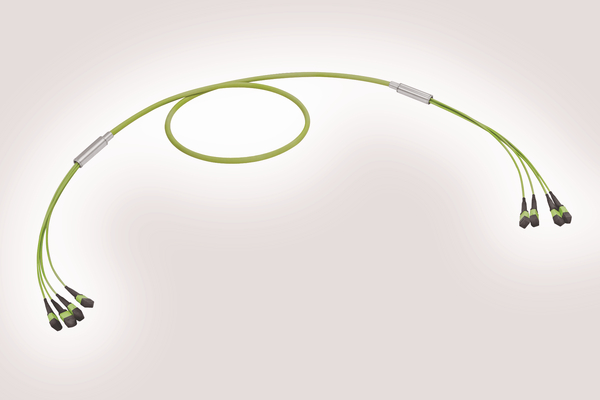

MTP to MTP Fan Out
Art.-No. 855-32189
| FLS96M5-MFMF4G-10.0M
|
Details
- High performance low loss Elite® Connectors from US Conec
- Compatible with all MTP RapidNet Cassettes
- Available in OM4 and OM5
- Pre-tested with test results supplied
- Female MTP Connectors
More products in this product group:
| Application | RapidNet fan out to fan out cables remove localised patching at both ends, saving space in the cabinets and reducing optical losses in the link. These cables are offered in various configurations and are particularly suited to applications where the active equipment or hardware at each end is located either in the same cabinet or row. |
| Cable Configuration | 24 Core |
| Colour | Light Green (LTGN) |
| Connector Colour | Light Green (LTGN) |
| Connector Type | MTP |
| PART DESCRIPTION | FLS96M5-MFMF4G-10.0M |
| Pack Cont. | 10m |
| Performance Category | OM5 Multimode |
| Product Description | The MTP to MTP Fan Out is designed to provide a high density inter-connect which uses minimum space making it an ideal solution for patching active hardware in data centres where space is at a premium. The Fan Out cable is a multi-core cable that has a smaller diameter than the standard fibre patch lead and therefore takes up less space in the trays and pathways. |
| Product Family | 24 Fibre MTP Fan Out Cable |
| Product Group | MTP to MTP Fan Out |
| Technical Description | US Conec MTP Connectors provide quick and simple connection for 24 fibres in a single housing. The Elite® low loss Connector ensures the optical alignment through patented high precision pins and floating ferrule and conforms to IEC 61754-7 and TIA 604-5. NB. Part numbers shown are for 10m length, other lengths are available. |
| Type | FLS96M5-MFMF4G-10.0M |
FLW24M5-MFMFXG-10.0M
855-32182
FLW48M5-MFMF2G-10.0M
855-32186
FLW96M5-MFMF4G-10.0M
855-32190
FLWH4M5-MFMF6G-10.0M
855-32194
FLW24M4-MFMFXM-10.0M
855-32180
FLW48M4-MFMF2M-10.0M
855-32184
FLW96M4-MFMF4M-10.0M
855-32188
FLWH4M4-MFMF6M-10.0M
855-32192
