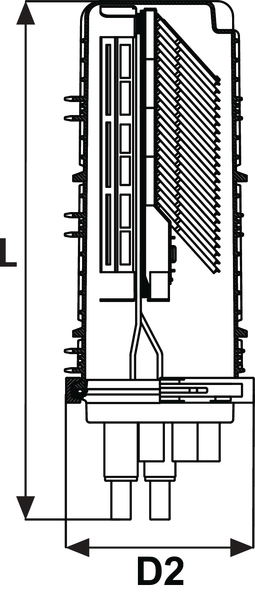

FML IR BC length closure with 48 x SC-IR MKI moulded splice holder trays
Art.-No. 857-00573
| FMLIR-BCXCXW
|
Details
- Maximum 192 fibre splice capacity
- 12 round ports and 1 oval port
- Positive fibre management to ensure consistent 30mm minimum fibre bend radius throughout
- Bi-directional fibre routing
- Supplied with 48 x SC-IR MKI Moulded Splice Holder Trays
- Maximum 4 splices per tray
- Cablelok compatible for all port sizes
- Quick release cover
- Optional pressure release valve
More products in this product group:
| Colour | Black (BK) |
| Content |
FML IR Base Anchor Plates/Bracket BC-Length Cover (Dome) Quick Release Clamp Sealing ’O’ Ring Fibre Optic Routing Module Fibre Optic Storage Unit Fibre Optic Storage Unit Lid Fibre Slot Entry Module Fibre Slot Retaining Block 48 x SC-IR MKI Moulded Splice Holder Trays Reusable Cable Ties Tray Lid Tray Tool Anchor Fixing Kit (3) Spiral Binding Isopropyl Alcohol Wipes Desiccant Installation Guide Marker Kit Red Marker 1 - 25 Green Marker 1 – 25 |
| Cover Type | BC |
| Material | Polypropylene (PP) |
| Method of Sealing | Cablelok, Heatshrink |
| PART DESCRIPTION | FMLIR-BCXCXW |
| Package Content packed in | box |
| Port | L, T, S, B |
| Port count | 1, 2, 6, 4 |
| Product Family | BC Length |
| Product Group | FML Integrated Routing Closure |
| Qty Trays | 48 |
| Short Description | FML IR BC length closure with 48 x SC-IR MKI moulded splice holder trays |
| Splice Capacity | 192 |

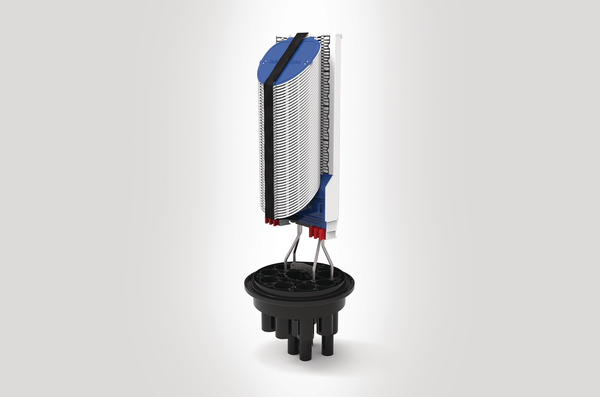

| Technical Description | The FML Integrated Routing (IR) BC Length closure is supplied with a Polypropylene base. The base configuration of 12 round ports and 1 oval port covers a cable diameter range of 4.8 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and the backplane is an aluminium extrusion which manages 48 x SC-IR MKI moulded splice holder trays. The position of the mounting system allows easy access for the routing of the fibre on to the trays. The trays and fibre optic routing module are white which makes it easy to see the colour of the fibre elements as they are routed through the positive fibre management system. Fibre slot retaining blocks guide fibre elements in to the IR system, the foam pad on the retainer is partially cut through to accommodate a range of fibre counts. All IR system cover plates are coloured blue identifying them as removable parts allowing access to the fibre, the fibre slot retaining block and tray retaining clips are coloured red to aid in identification if they are dropped. |
| Type | FMLIR-BCXCXW |
| Type of Tray | IR SC |
| Variant | Outdoor FTTx Enclosures |
