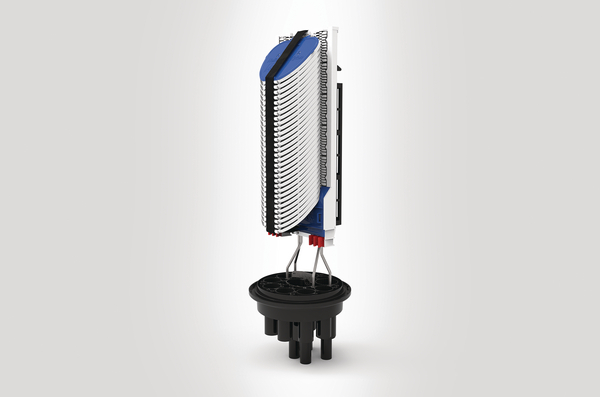

FML IR C length closure with basket with 24 SE-IR MKII trays fitted with 2 x 3A splice bridges
Art.-No. 857-02057 | FMLIR-CXBCMX | Details

Maximum 360 fibre splice capacity
12 round ports and 1 oval port
Positive fibre management to ensure consistent 30mm minimum fibre bend radius throughout
Fibre storage basket for loop through applications
Bi-directional fibre routing
Supplied with 30 SE-IR MKII Trays fitted with 2 x 3A (Green) splice protector inserts
Maximum 12 splices per tray
Splitter accommodation
Cablelok compatible for all port sizes
Quick release cover
Optional pressure release valve

Add to watchlist

Distributors near you

Downloads

More products in this product group:

FML Integrated Routing Closure >

Base Data

Colour	Black (BK)
Content	FML IR Base Anchor Plates/Bracket C-Length Cover (Dome) Quick Release Clamp Sealing ’O’ Ring Fibre Storage Basket Fibre Optic Routing Module Fibre Optic Storage Unit Fibre Optic Storage Unit Lid Fibre Slot Entry Module Fibre Slot Retaining Block 30 x SE-IR MKII 3A Splice Trays Reusable Cable Ties Tray Lid Tray Tool Anchor Fixing Kit (3) Spiral Binding Isopropyl Alcohol Wipes Desiccant Installation Guide Marker Kit Red Marker 1 - 48 Green Marker 1 – 48
Cover Type	C
Material	Polypropylene (PP)
Method of Sealing	Cablelok, Heatshrink
PART DESCRIPTION	FMLIR-CXBCMX
Package Content packed in	box
Port	L, T, S, B
Port count	1, 2, 6, 4
Product Family	C Length with Basket
Product Group	FML Integrated Routing Closure
Qty Trays	30
Short Description	FML IR C length closure with basket with 24 SE-IR MKII trays fitted with 2 x 3A splice bridges
Splice Capacity	360
Technical Description	The FML Integrated Routing (IR) C Length closure with basket is supplied with a Polypropylene base. The base configuration of 12 round ports and 1 oval port covers a cable diameter range of 4.8 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and the backplane is an aluminium extrusion which accommodates 30 IR SE MKII trays. The position of the mounting system allows easy access for the routing of the fibre on to the trays and the basket provides storage space for the storage of fibre loops. The trays and fibre optic routing module are white which makes it easy to see the colour of the fibre elements as they are routed through the positive fibre management system. Fibre slot retaining blocks guide fibre elements in to the IR system, the foam pad on the retainer is partially cut through to accommodate a range of fibre counts. All IR system cover plates are coloured blue identifying them as removable parts allowing access to the fibre, the fibre slot retaining block and tray retaining clips are coloured red to aid in identification if they are dropped.
Type	FMLIR-CXBCMX
Type of Tray	Integrated Routing SE MKII

Product Dimensions

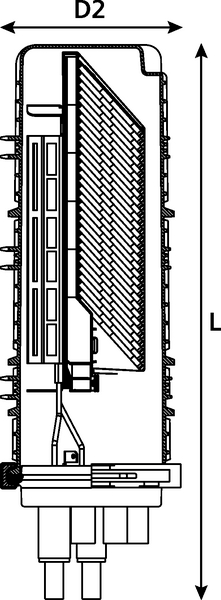

Length (mm)	748mm
Width D1	220mm
Width D2	275mm

Downloads

Specifications

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660174704
Packaging 1 - Height (m)	0.32m
Packaging 1 - Length (m)	0.84m
Packaging 1 - Qty	1
Packaging 1 - Type	box
Packaging 1 - Volume (m³)	0.08602m³
Packaging 1 - Weight (kg)	6.5kg
Packaging 1 - Width (m)	0.32m
