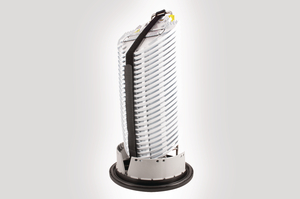

FML B length tubed closure with 24 NZDF SE-B trays fitted with 2 x 3A splice bridges
Art.-No. 857-00674
| FMLTB-BXXCE41
|
Details
- Maximum 288 fibre splice capacity
- 12 round ports and 1 oval port
- Pre-tubed to trays to allow for easy insertion of fibre
- Supplied with 24 NZDF SE-B Trays fitted with 2 x 3A (Green) splice protector inserts
- Maximum 12 splices per tray
- Splitter accommodation
- Cablelok compatible for all port sizes
- Quick release cover
- Optional flash test valve and/or grounding feed-through
More products in this product group:
| Colour | Black (BK) |
| Content |
FML Base B-Length Cover (Dome) Quick Release Clamp Sealing ’O’ Ring Fibre Storage Basket (Hellapon Medium Tray option only) Mounting Posts and Brackets Anchor Fixing Kit (1) 24 x NZDF SE-B 3A Splice Trays Tray Tool Hook and Loop Tray Securing Strap Transportation Tubing Tubefix – Tubing to Tray Securing Blocks Hook and Loop Management Ties Marker Kit (NZDF SE-B/SMF SE-B) Red Marker 1 - 48 Green Marker 1 – 48 Marker Kit (Hellapon Medium) Red Marker 1 - 25 Green Marker 1 – 25 Isopropyl Alcohol Wipes Desiccant Installation Guide |
| Cover Type | B |
| Method of Sealing | Cablelok, Heatshrink |
| PART DESCRIPTION | FMLTB-BXXCE41 |
| Package Content packed in | kit |
| Port | L, T, S, B |
| Port count | 1, 2, 6, 4 |
| Product Family | FML B Length Closure |
| Product Group | FML Tubed Closure |
| Qty Trays | 24 |
| Short Description | FML B length tubed closure with 24 NZDF SE-B trays fitted with 2 x 3A splice bridges |
| Splice Capacity | 288 |
| Technical Description | The FML B Length closure is supplied with a Polypropylene base. The base configuration of 12 round ports and 1 oval port covers a cable diameter range of 4.8 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and the backplane is an aluminium extrusion which manages 24 NZDF SE-A 3A Splice Trays. The Hellapon Medium closure is supplied with a fibre storage basket which provides storage space for the storage of fibre loops. The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays. |
| Type | FMLTB-BXXCE41 |
| Type of Tray | Hellipse NZDF SE-B |
