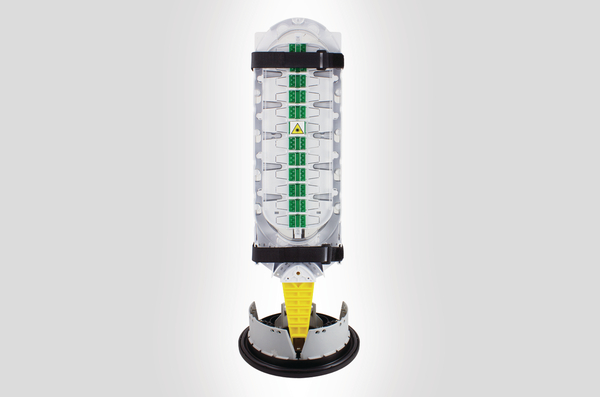

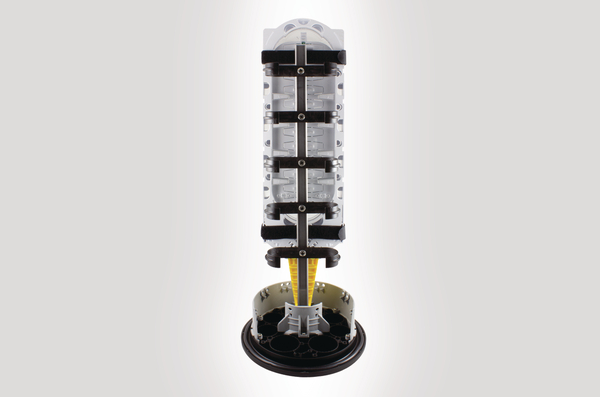

FML C length tubed closure with 2 Hellamass large trays
Art.-No. 857-00679 | FMLTB-CXXCG21 |  Details

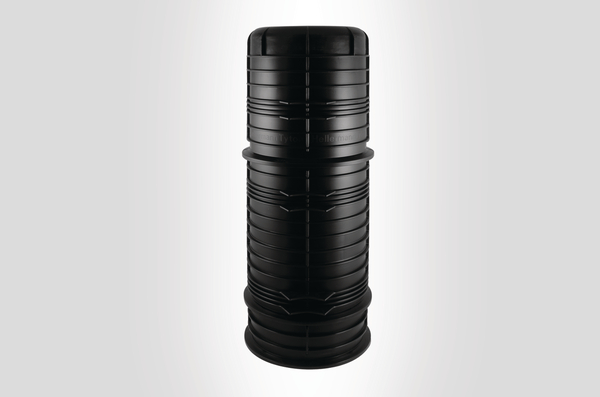

FML C-Length Closure

    • Maximum 288 fibre splice capacity
    • 12 round ports and 1 oval port
    • Pre-tubed to trays to allow for easy insertion of fibre
    • Supplied with 2 Hellamass Large trays
    • Maximum 144 splices per tray
    • Splitter accommodation
    • Cablelok compatible for all port sizes
    • Quick release cover
    • Optional flash test valve and/or grounding feed-through
    Show more
    Add to watchlist
    Downloads
    Colour Black (BK)
    Content FML Base
    Anchor Plates/Bracket
    C-Length Cover (Dome)
    Quick Release Clamp
    Sealing ’O’ Ring

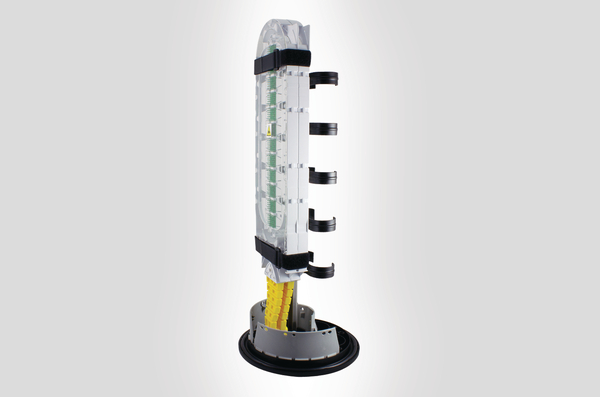

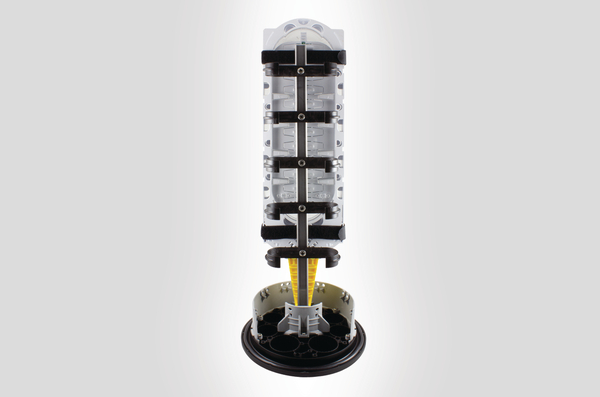

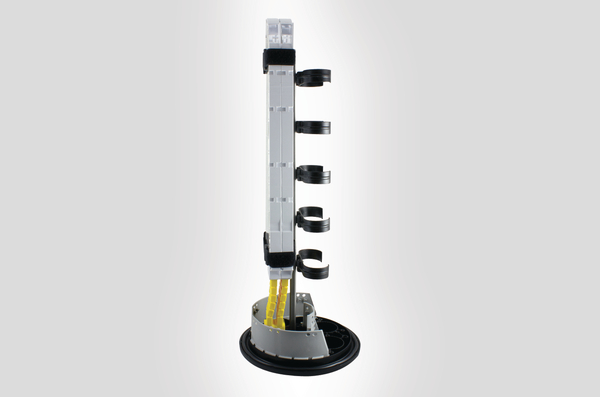

    Tray Support Frame
    Anchor Fixing Kit (3)
    2 x Hellamass Large Trays
    Tray Tool
    Hook and Loop Tray Securing Straps
    Transportation Tubing
    Tubefix – Tubing to Tray Securing Blocks
    Hook and Loop Management Ties
    Marker Kit (NZDF SE-B/SMF SE-B)
    Red Marker 1 - 48
    Green Marker 1 – 48
    Marker Kit (Hellamass Large)
    Red Marker 1 - 25
    Green Marker 1 – 25
    Isopropyl Alcohol Wipes
    Desiccant
    Installation Guide
    Cover Type C
    Method of Sealing Cablelok, Heatshrink
    PART DESCRIPTION FMLTB-CXXCG21
    Package Content packed in kit

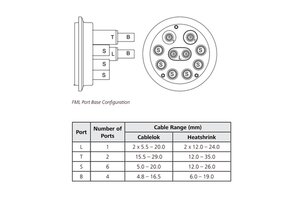

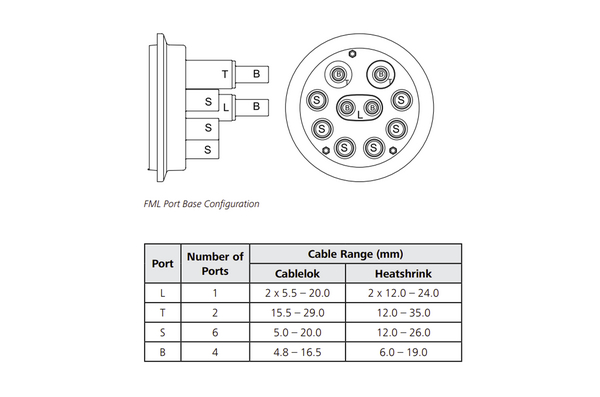

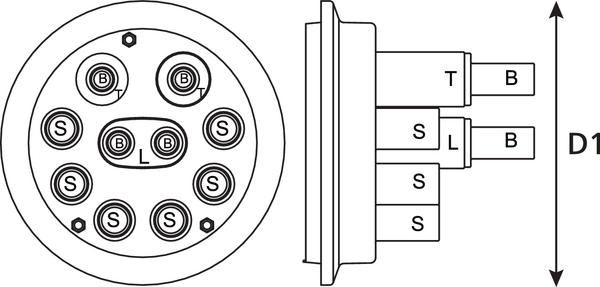

    Port L, T, S, B
    Port count 1, 2, 6, 4
    Product Family FML C Length Closure
    Product Group FML Tubed Closure
    Qty Trays 2
    Short Description FML C length tubed closure with 2 Hellamass large trays
    Splice Capacity 288

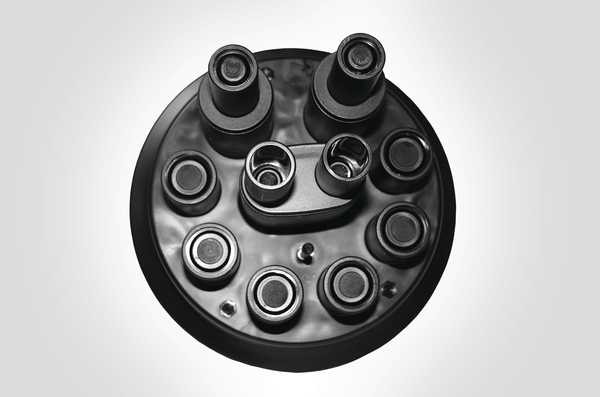

    Technical Description The FML C Length closure is supplied with a Polypropylene base. The base configuration of 12 round ports and 1 oval port covers a cable diameter range of 4.8 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and the backplane is an aluminium extrusion which manages 2 Hellamass Large trays The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays.
    Type FMLTB-CXXCG21
    Type of Tray Hellamas Large

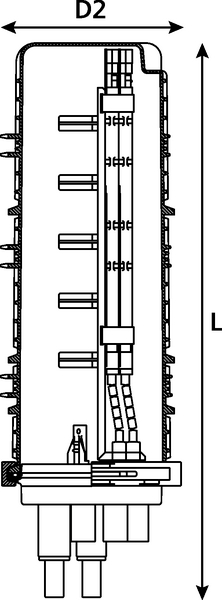

    Length (mm) 748mm

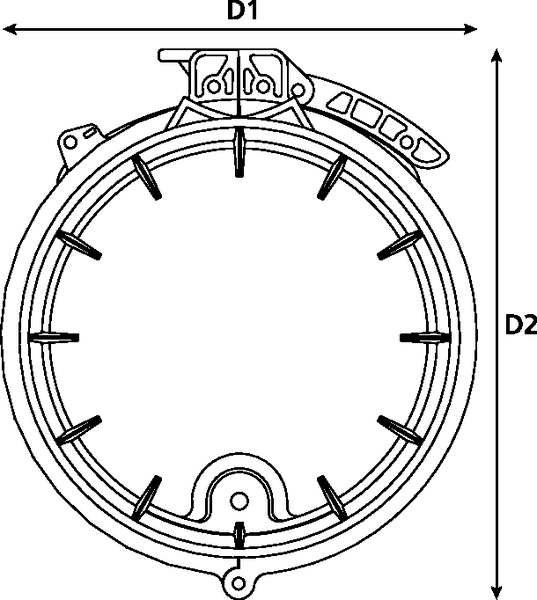

    Width D1 220mm
    Width D2 275mm
    Country of Origin GB
    GTIN-13 / EAN 5022660112911
    Packaging 1 - Height (m) 0.32m
    Packaging 1 - Length (m) 0.84m
    Packaging 1 - Qty 1
    Packaging 1 - Type box
    Packaging 1 - Volume (m³) 0.08602m³
    Packaging 1 - Weight (kg) 6.5kg
    Packaging 1 - Width (m) 0.32m
    ETIM 7.0 Key EC002067
    ETIM 8.0 Key EC002067
    ETIM 9.0 Key EC002067
