FRBU connectorised B length with 2 trays
Art.-No. 857-00910 | FRBCT-BXXEC2X-TF |  Details

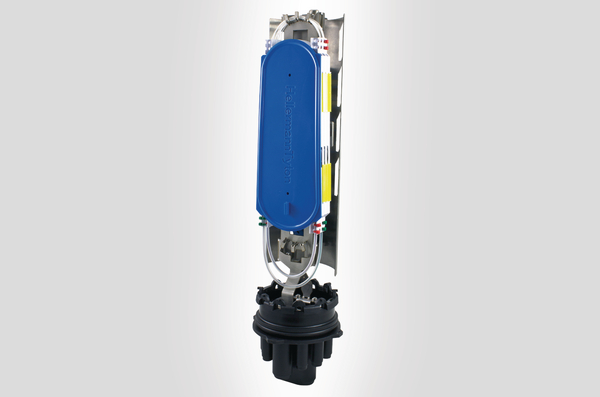

FRBU 11 Port B-Length Connectorised Closure.

    • Maximum 72 fibre splice capacity
    • 10 round ports and 1 oval port
    • Accommodates Hellapon Medium side hinged trays
    • SC Simplex adaptors
    • Maximum 24 splices per tray (double stacked)
    • Splitter accommodation
    • Cablelok compatible for all port sizes
    • Quick release cover
    • Optional flash test valve and/or grounding feed-through
    Show more
    Add to watchlist
    Downloads
    Colour Black (BK)
    Connector Type SC-APC
    Content FRBU 11 Port Base

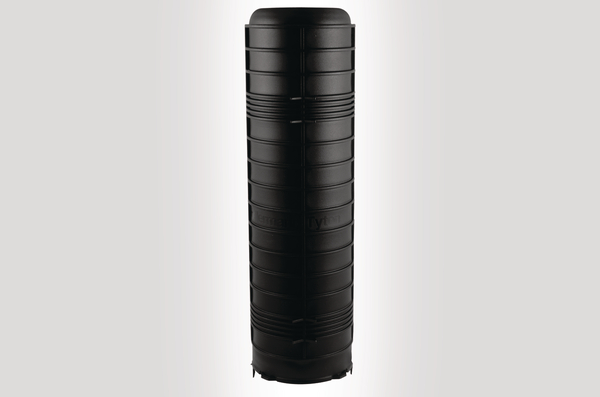

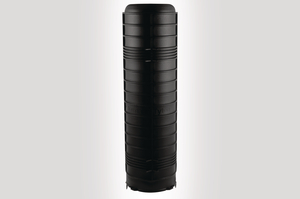

    B-Length Cover (Dome)
    Quick Release Clamp
    Sealing ‘O’ Ring
    Connector Plate
    SC Simplex Adaptors
    Hellapon Medium Trays
    Tray Support Frame
    Anchor Fixing Kit (2)
    Tray Tool
    Transportation Tubing
    Hook and Loop Management Ties
    Cable Ties
    Isopropyl Alcohol Wipes
    Desiccant
    Installation Guide
    Marker Kit
    Red Marker 1 – 12
    Green Marker 1 – 12
    Cover Type B
    Method of Sealing Cablelok, Heatshrink
    PART DESCRIPTION FRBCT-BXXEC2X-TF
    Package Content packed in box

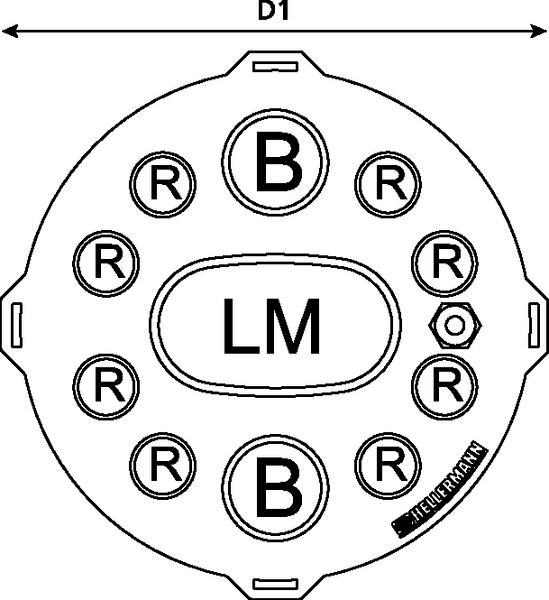

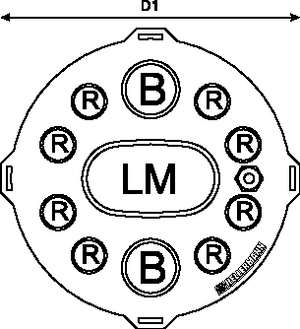

    Port LM, B, R
    Port count 1, 2, 8
    Product Family B Length with 24 SC Simplex Adaptors
    Product Group FRBU Connectorised Closure
    Qty Trays 2
    Short Description FRBU connectorised B length with 2 trays
    Technical Description The FRBU 11 Port B Length closure is supplied with a Polypropylene base. The base configuration of 10 round ports and 1 oval port covers a cable diameter range of 1.7 – 16.5mm when using Cablelok mechanical seals and 6.0 – 24.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and can accommodate a maximum of 3 Hellapon Medium side hinged trays with a maximum of 24 SC Simplex adaptors mounted in the connector plate for a maximum of 24 SC Connectors. The Connectorised closure and the position of the mounting system allow for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and in to the trays.
    Type FRBCT-BXXEC2X-TF
    Type of Tray Hellapon Medium

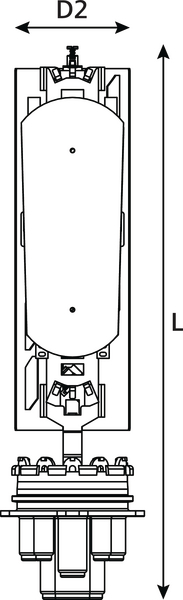

    Length (mm) 505mm
    Width D1 130mm
    Width D1 5.1"
    Width D2 5.1"
    Width D2 130mm
    Country of Origin GB
    Customs Number 85389099
    GTIN-13 / EAN 5022660127465
    Packaging 1 - Height (m) 0.146m
    Packaging 1 - Length (m) 0.156m
    Packaging 1 - Qty 1
    Packaging 1 - Type box
    Packaging 1 - Volume (m³) 0.01351m³
    Packaging 1 - Weight (kg) 1.7kg
    Packaging 1 - Width (m) 0.593m
    ETIM 7.0 Key EC002067
    ETIM 8.0 Key EC002067
    ETIM 9.0 Key EC002067
