FRBU IP9 with 8 SC/APC IP9 Adaptors
Art.-No. 857-02783 | FRBCT-MXXIA21T8 | Details

Distributors near you

More products in this product group:

Colour	Black (BK)
Content	IP9 SC/APC Connectors (8) FRBU IP9 Base M Length Cover Quick Release Clamp Sealing 'O' Ring Tray Support Frame Anchor Fixing Kit (2) Hellapon Small Tray 3A (2)
Material	Polypropylene (PP)
Method of Sealing	Cablelok
PART DESCRIPTION	FRBCT-MXXIA21T8
Package Content packed in	box
Port count	8
Product Family	M Length with 8 SC/APC IP9 Adaptors
Product Group	FRBU IP9 Connectorised
Qty Trays	2
Short Description	FRBU IP9 with 8 SC/APC IP9 Adaptors
Splice Capacity	48

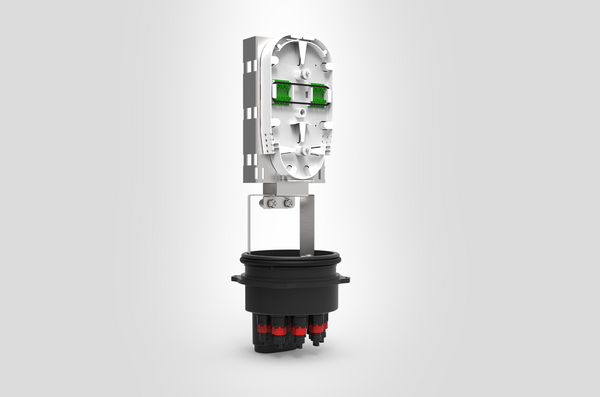

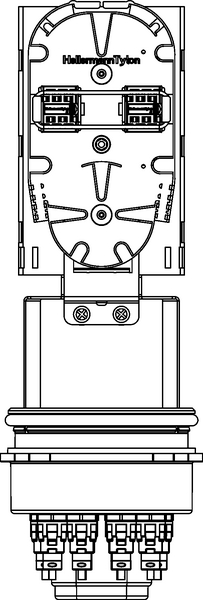

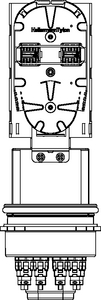

Technical Description	The IP9 Hardened Connector M length closure is an IP68 dome closure manufactured from UV stable polypropylene with a base configuration of 8 IP9 ports and 1 oval port. The IP9 ports are configured with SC/APC simplex adaptors and the oval port accommodates a cable diameter range of 4.0mm to 15.0mm (LM Port) when using cablelok mechanical seals. The closure mounting system is manufactured from Grade 304 stainless steel and supports 2 Hellapon Small splice trays and a fibre storage basket. The Hellapon Small trays are fitted with 3A splice bridges. The base has an integrated closure mounting point which can be used with the FRBU moulded mounting brackets for mounting on a wall, pole or Mobra arm and allows the cover to be removed and the closure to stay in place during installation or maintenance.
Type	FRBCT-MXXIA21T8
Type of Tray	Hellapon Small
Variant	Outdoor Enclosure
