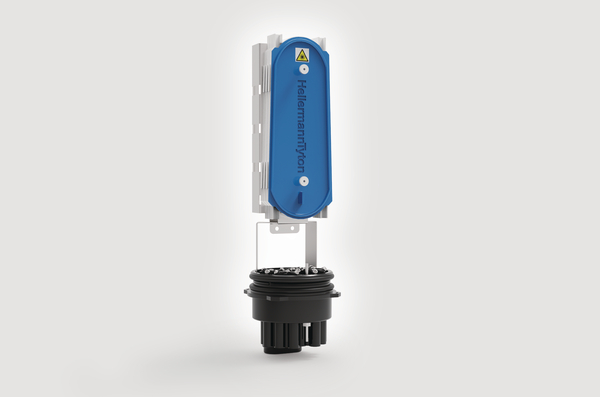

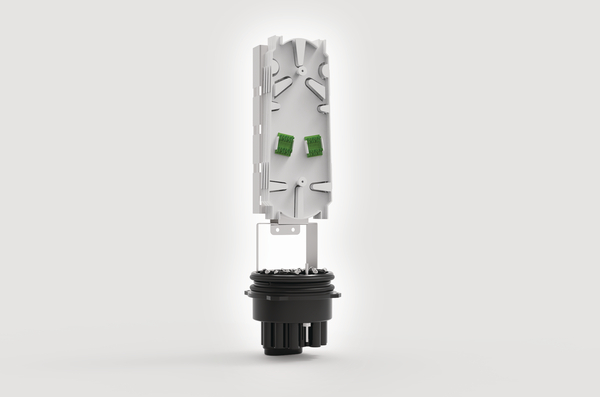

FRBU 16 port B length closure with 3 x Hellapon medium stacked trays
Art.-No. 857-02061 | FRBTB-BXBSB31 | Details

Distributors near you

More products in this product group:

Colour	Black (BK)
Content	FRBU 16 Port Base B-Length Cover (Dome) Quick Release Clamp Sealing ’O’ Ring 3 x Hellapon Medium Stacked Trays Tray Support Frame Anchor Fixing Kit (6) Transportation Tubing Hook and Loop Management Ties Cable Ties Isopropyl Alcohol Wipes Desiccant Installation Guide Marker Kit Red Marker 1 - 12 Green Marker 1 – 12
Cover Type	B
Method of Sealing	Cablelok, Heatshrink
PART DESCRIPTION	FRBTB-BXBSB31
Package Content packed in	box
Port	LM, R
Port count	1, 16
Product Family	B Length
Product Group	FRBU 16 Port Closure
Qty Trays	3
Short Description	FRBU 16 port B length closure with 3 x Hellapon medium stacked trays
Splice Capacity	36
Technical Description	The FRBU 16 Port B Length closure is supplied with a Polypropylene base. The base configuration of 16 round ports and 1 oval port which accommodate covers a cable diameter range of 1.7 – 9.5mm (R Ports) and 4.0 – 15.0mm (LM port) when using Cablelok mechanical seals. The mounting system is manufactured from Grade 304 stainless steel and is supplied with 3 x Hellapon Medium Stacked Trays giving a maximum of 36 fibre splices. The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays.
Type	FRBTB-BXBSB31
Type of Tray	Hellapon Medium
Variant	Outdoor Enclosure
