** PLEASE NOTE THIS PRODUCT IS NOW PRE-ASSEMBLED WITH 6C ANGLED ADAPTORS INCLUDED**
4 Port LJ6C POD Box: for use with 25mm OD Conduit
Art.-No. 854-40284
| HT-POD-25MM-4P
|
Details
- IK07 Rated
- Assembled with HTC 6C angled adaptors
- Available in 4 or 6 Port Presentations
- Choice of 25mm, 28.5mm, 34mm Conduit Entry Points
- Also available as part of the RapidNet solution
- Compatible with HTC Tool Free Jacks or GST Jacks only
- Fits through 127mm raised floor grommets
- Integral anchor point for cable bundles
- Port and POD labeling fields
- Secure & temporary fixing points
- Part of the HellermannTyton Zone Cabling range
More products in this product group:
| Internet Customer Notice | ** PLEASE NOTE THIS PRODUCT IS NOW PRE-ASSEMBLED WITH 6C ANGLED ADAPTORS INCLUDED** |
| PART DESCRIPTION | HT-POD-25MM-4P |
| Product Description | 4 Port LJ6C POD Box |
| Product Family | For use with 25mm OD Conduit |
| Product Group | 4 Port LJ6C POD Box |
| Short Description | 4 Port LJ6C POD Box: for use with 25mm OD Conduit |

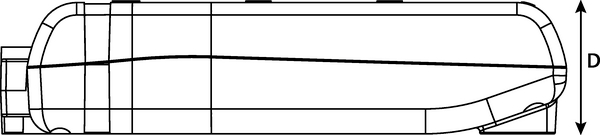

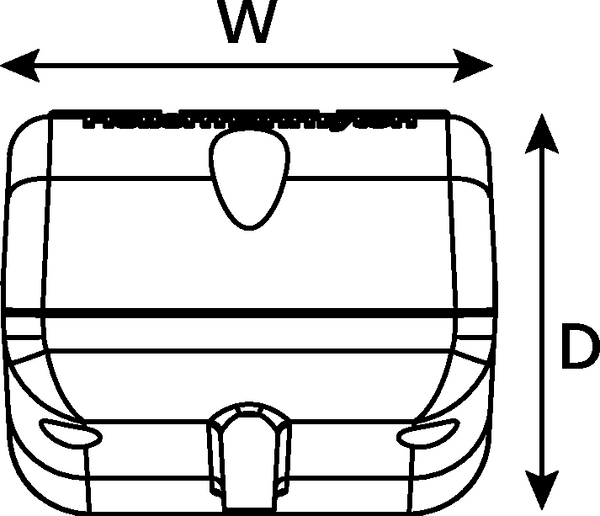

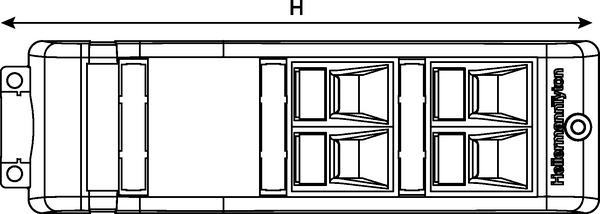

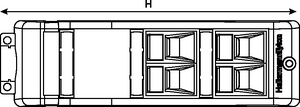

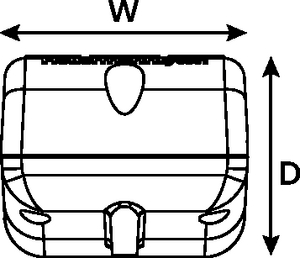

| Technical Description | The HellermannTyton POD box part of the Zone Cabling product range offers flexibility within a Structured Cabling Network. Each POD is assembled with angled LJ6C adaptors which are compatible with HTC tool-free keystone jacks, or GST Keystone Jacks.* Available in either 4 or 6 port presentations with the choice of 25mm, 28.5mm or 34mm conduit entry points. All POD variations benefit from the same dimensions 215mm(h) x 51mm(d) x 62mm(w) which allows them to easily pass through standard 127mm raised floor grommets. Each POD features individual port labeling fields as well as a larger labelling area for the POD itself. POD boxes can be used without conduit, however HellermannTyton always recommends using suitable flexible conduit to help maintain proper cable bend radii and to protect cables from possible damage. Conduit is gripped within the rear entry point of the POD alleviating the need for a compression gland.** An integral cable tie point inside the POD allows cable bundles to be securely anchored in place further protecting your terminations. There are three mounting holes for screws when permanently fixing in position such as to the floor (slab) in grid layouts, and two cables tie points for temporary fixing or when using access baskets; giving a simple means for securing the POD in place under the desk when located in its final position. * HTC and GST Jacks are sold separately. ** Gland required if using an L bracket to secure conduit to cable tray. |
| Type | HT-POD-25MM-4P |
