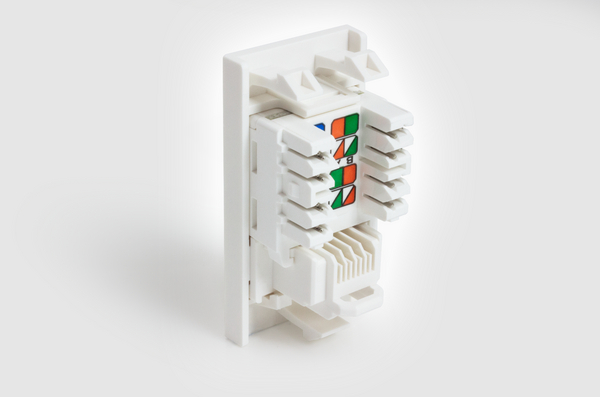

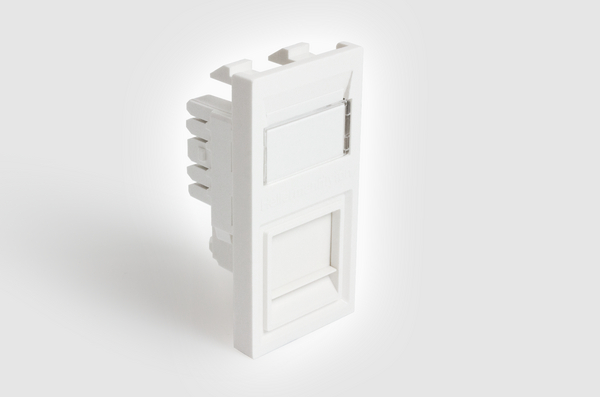

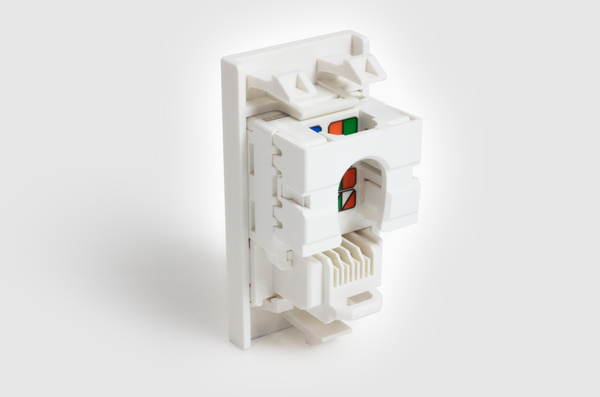

CAT6 Unshielded Euro 50x25mm Module - White
Art.-No. 852-05700
| HTC-C6U-EM50/WH
|
Details
- Category 6 component compliant
- Footprint - Euro 50x25mm
- Made from ABS + PC
- Available in White
- Compatible with HTC Series faceplates
- Includes mini-zip ties and instructions
- Plastic free packaging
- Bulk packed reduce carbon footprint
More products in this product group:
| Colour | White (WH) |
| PART DESCRIPTION | HTC-C6U-EM50/WH |
| Performance Category | Category 6 (Class E) |
| Product Description | The HTC Series Category 6 unshielded modules are available in Euro Module and 6C sizes and are backwards compatible with legacy Category 5e, Category 5 and voice network infrastructures. The LJ6C Module Cat6 Outlet has a 38.5mm x 25mm footprint and can be fitted into our Zone Cabling Pod boxes. |
| Product Family | 50 x 25mm - Flat - White |
| Product Group | CAT6 Unshielded Euro Outlet |
| Short Description | CAT6 Unshielded Euro 50x25mm Module - White |
| Technical Description | The HTC Series Category 6 unshielded Euro modules are designed to support Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 155 Mb/s ATM, Token Ring 4/16, voice/data systems and Voice over Internet Protocol (VoIP) systems running over a Category 6 cabling system and are backwards compatible with legacy Category 5e, Category 5 and voice network infrastructures. |
| Type | HTC-C6U-EM50/WH |
