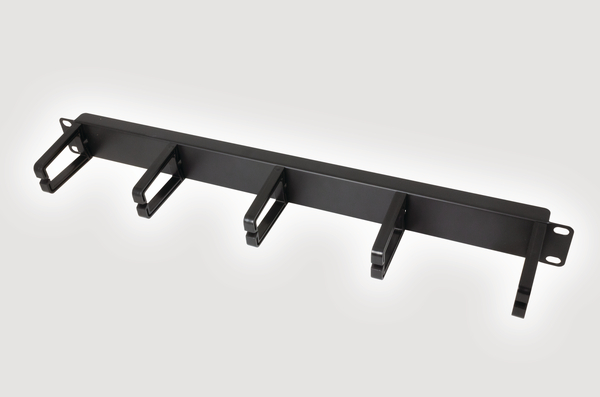

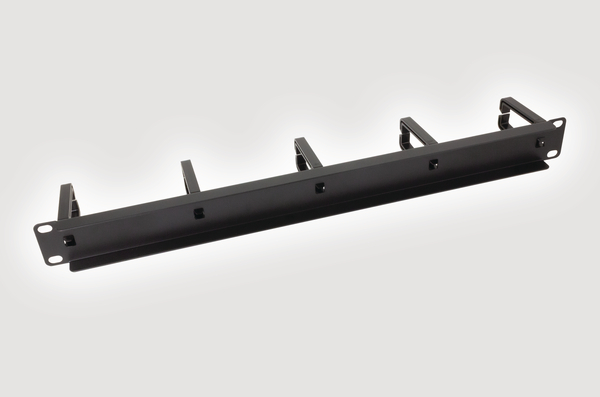

1U 5 Ring Cable Manager
Art.-No. 854-05162 | HTC-CM1U5R/BK |  Details

HTC Cable Manager

    • Powder coated steel
    • For use in 19” mounting profiles
    • 5 Rings for optimal cable support
    • Includes cage nuts and screws
    • Available in black
    • Plastic free packaging
    Show more
    Add to watchlist
    Downloads
    PART DESCRIPTION HTC-CM1U5R/BK
    Product Description The HTC Series rack mount cable management panel is available in 1U with 5 plastic rings, which hold and support the cables in position. It is recommended that there is provision for cable management for every 2U of cabling or patching in a cabinet or rack.
    Product Family Cabinet Cable Management
    Product Group 1U 5 Ring Cable Manager
    Short Description 1U 5 Ring Cable Manager
    Type HTC-CM1U5R/BK
    Depth (D) 77mm
    Height (H) 44mm
    Height, Units 1U
    Width (W) 480mm
    Hazardous Goods No
    Country of Origin GB
    Customs Number 73269098

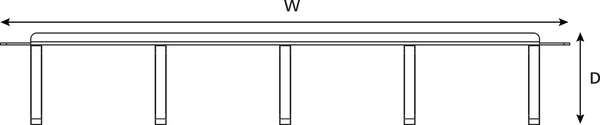

    Dimensions W x H x D 480 mm x 44 mm x 77 mm
    GTIN-13 / EAN 5022660177293
    ETIM 7.0 Key EC002624
    ETIM 8.0 Key EC002624
    ETIM 9.0 Key EC002624
