21/12/2024

LJ6C LC DX Single Mode
Art.-No. 855-35035 | HTC-LCS-6CA50/WH |  Details

HTC Series Work Area Fibre Modules.

    • Footprint LJ6C 38.5x25mm
    • Available pre-loaded with Fibre Adaptors
    • LC duplex, SC Simplex in multimode or singlemode
    • Fibre Adaptors include dust caps
    • Identification / label area
    • Consistent design with HTC Series Keystone Modules
    • Compatible with HTC Series mounting hardware
    • Made from ABS
    • Plastic free packaging
    • Bulk packed to reduce carbon footprint
    Show more
    Add to watchlist
    Downloads CAD-Download
    Connector Colour Blue (BU)
    Connector Type LC Duplex
    PART DESCRIPTION HTC-LCS-6CA50/WH
    Performance Category Single Mode

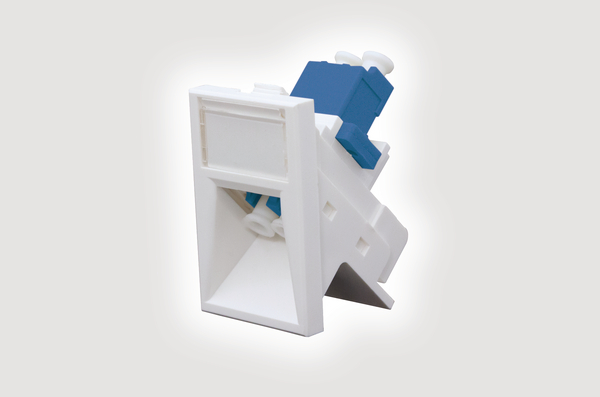

    Product Description The HTC Series LJ6C Fibre Modules are designed for Fibre to the Desk (FTTD) applications. The modules are produced from the same HTC Series Keystone jack modules in order to offer consistent aesthetics when installed. The fibre modules are without shutter and come pre-loaded with the fibre adaptor. All fibre adaptors are transported with dust caps. The LJ6C Fibre module is compatible with HTC Series 6C faceplates and the HellermannTyton POD.
    Product Family LJ6C
    Product Group Fibre Modules
    Short Description LJ6C LC DX Single Mode
    Type HTC-LCS-6CA50/WH

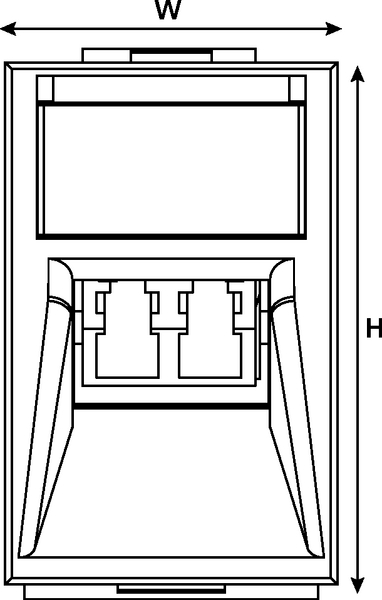

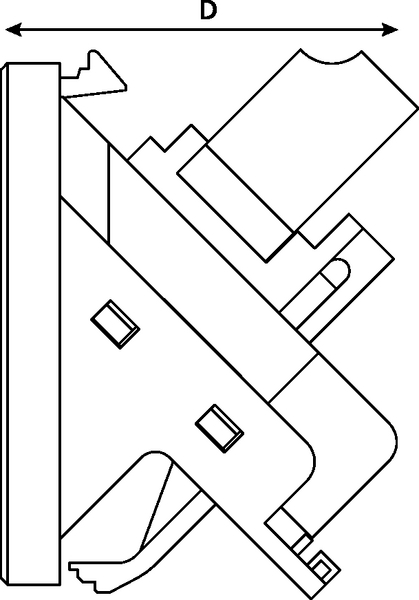

    Depth (D) 30mm
    Height (H) 38.5mm
    Width (W) 25mm
    Country of Origin GB
    Dimensions W x H x D 25 mm x 38.5 mm x 30 mm
    GTIN-13 / EAN 5022660185182
    ETIM 7.0 Key EC000034
    ETIM 8.0 Key EC000034
    ETIM 9.0 Key EC000034
