Modular 1U 24 Port Panel
Art.-No. 853-55009 | HTC-XXS-PPF241U/BK |  Details

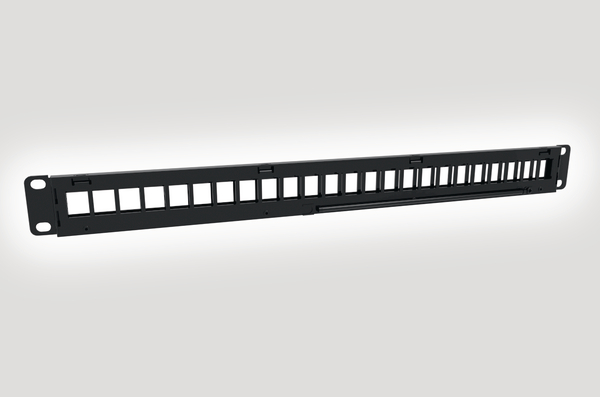

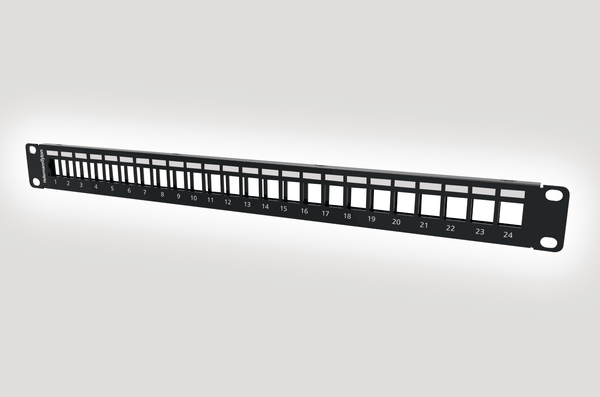

HTC Series 1U 24 Port Modular Patch Panel Unloaded

    • Plastic Free Packaging

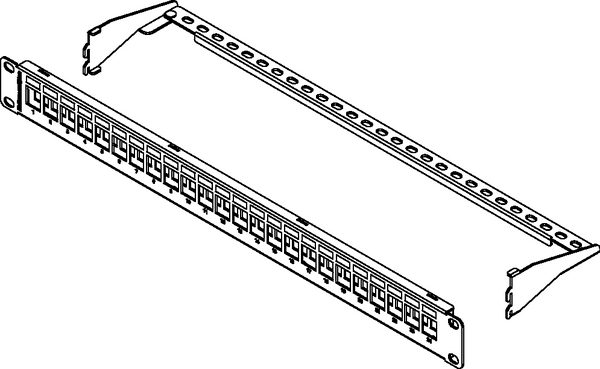

    • Detachable, Folding Cable Manager
    • Ideal for Shielded or Unshielded Requirements
    • 1U 24 Ports
    • Compatiable with 19 Inch Mounting Profiles
    Show more
    Add to watchlist
    Downloads CAD-Download
    PART DESCRIPTION HTC-XXS-PPF241U/BK
    Product Description The HTC Series 1U 24 Port Modular patch panel has been developed to allow for simplistic installation. It accepts HTC compatible Keystone jacks. It Features a folding rear cable manager with cable tie points that simply snaps into place without the need for extra tools or manpower.
    Product Family Shielded
    Product Group Modular 1U 24 Port Panel
    Short Description Modular 1U 24 Port Panel
    Type HTC-XXS-PPF241U/BK

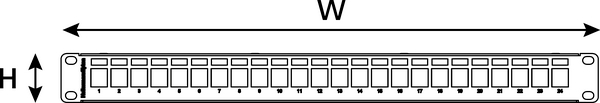

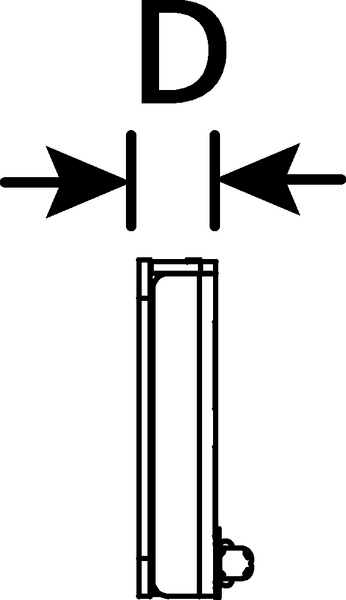

    Depth (D) 10.1mm
    Height (H) 44mm

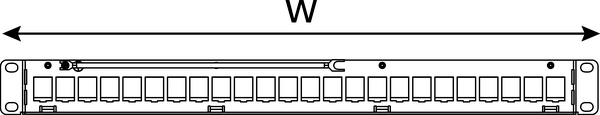

    Width (W) 482.5mm
    CE Certification No
    CSA Certified No
    Hazardous Goods No
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    Country of Origin GB
    Customs Number 85369010
    Dimensions W x H x D 482.5 mm x 44 mm x 10.1 mm
    GTIN-13 / EAN 5022660174049
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
    Cat6A & Cat6 Connectivity Cat6A & Cat6 Connectivity

    Cat6A & Cat6 Connectivity

    HellermannTyton offer an extensive range of connectivity solutions to meet the demands of any installation project. HellermannTyton provide a full end to end solution in Category 6A and Category 6 formats.

    Cat6A & Cat6 Connectivity >
    Art.-No.: 853-55009 Details My watchlist Distributors Contact
    Base Data Product Dimensions Specifications Logistics and Packaging Downloads
    Downloads Datasheet
