MDU S3 Loop Through Seal 3mm - 14mm
Art.-No. 857-50232 | LG-S3-3MM-14MM |  Details

    • Cable range coverage from 3mm to 14mm
    • Dual Output for Loop Through Applications
    • Cable Anchor Bracket included
    • Suitable for use with MDU - S3
    Add to watchlist
    Downloads
    Cable ∅ max 14.0mm
    Cable ∅ min 3.0mm
    Colour Grey RAL 7035 (RAL7035), Black (BK)

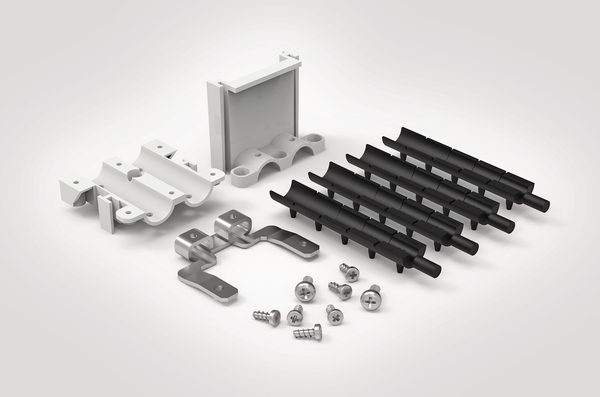

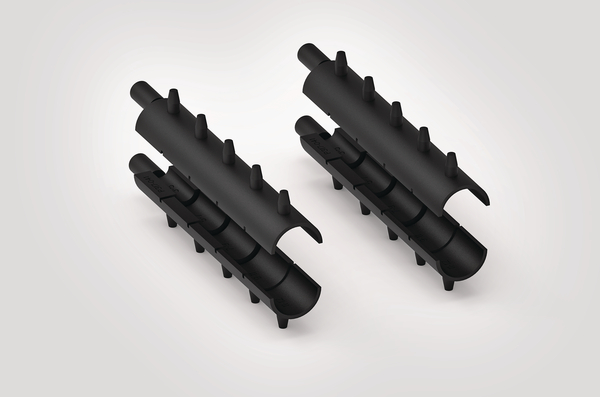

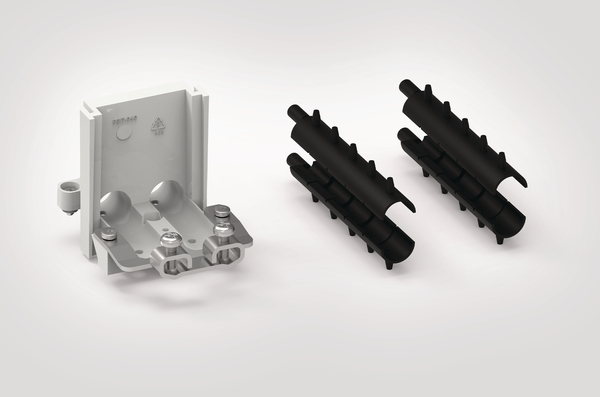

    Content Loop Through Cable Entry Blank

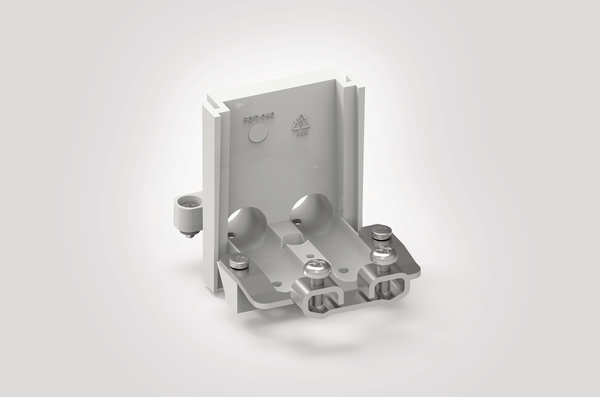

    Dual Cable Anchor Bracket
    Fixing Screws
    Material Thermoplastic Elastomer (TPE), Acrylonitrile Butadiene Styrene (ABS)
    PART DESCRIPTION LG-S3-3MM-14MM
    Pack Cont. 1pc.
    Package Content packed in bag
    Port count 2
    Product Description Loop Through Cable Seal - MDU-S3
    Product Group MDU S3 Loop Through Seal
    Short Description MDU S3 Loop Through Seal 3mm - 14mm
    Technical Description The LTS-S3-3-14mm is a single mechahnical seal for use with the MDU-S3. The seal covers a cable range of 3mm - 14mm and has a dual outlet for loop through applciations.
    Type LG-S3-3MM-14MM
    Variant Indoor/Outdoor FTTx Enclosures
    Country of Origin GB
    GTIN-13 / EAN 5022660167058
    Packaging 1 - Height (m) 0.03m
    Packaging 1 - Length (m) 0.15m
    Packaging 1 - Volume (m³) 0.00045m³
    Packaging 1 - Weight (kg) 0.152kg
    Packaging 1 - Width (m) 0.10m
    ETIM 7.0 Key EC000879
    ETIM 8.0 Key EC000879
    ETIM 9.0 Key EC000879
