FFE-V-BRKT-V2 | Details

Suitable for use with the AFN and the FFE (Fibre Facade Enclosure)
Loop storage management for up to 10m of ultra-lightweight cable (at the rear of the bracket)
External anchor points for 24 distribution drop fibres
Manufactured from powder coated stainless steel
Designed not to exceed the width of the pole top

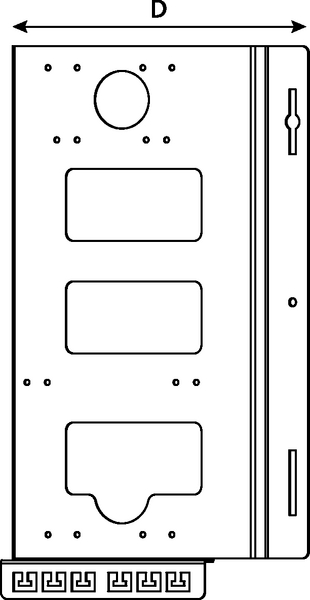

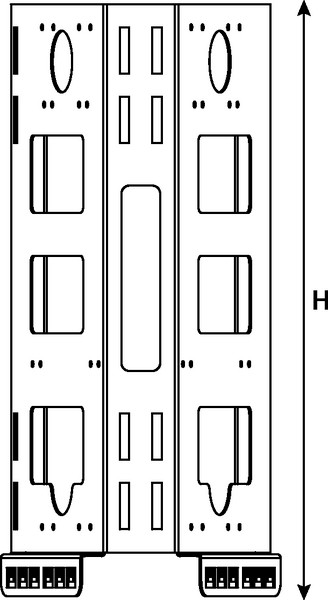

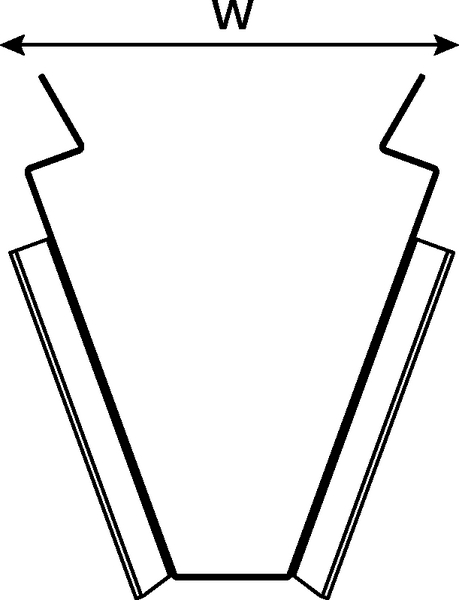

201 x 179 x 384mm (D x W x H)

Distributors near you

More products in this product group:

Application	Used for mounting the AFN within an aerial network.
Colour	Black (BK)
Material	Stainless Steel (SS)
PART DESCRIPTION	MB-AFN/FFE-V-BRKT-V2
Product Family	Pole Mounting Bracket
Product Group	V-Bracket for 2 x AFN/FFE
Short Description	V-Bracket for 2 x AFN/FFE

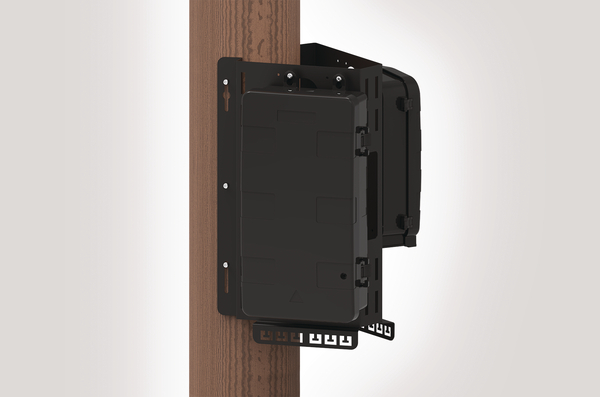

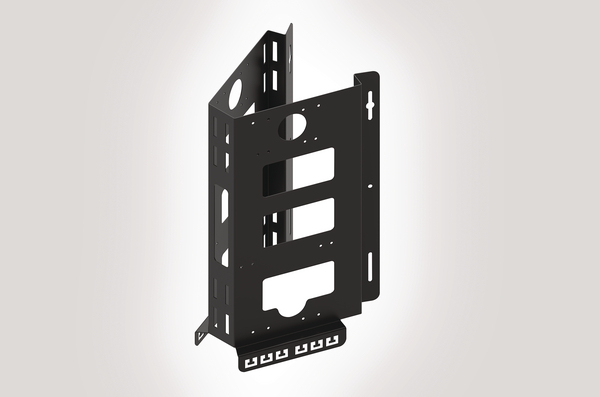

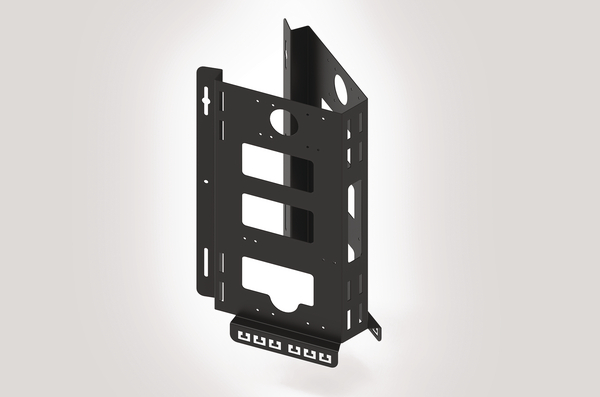

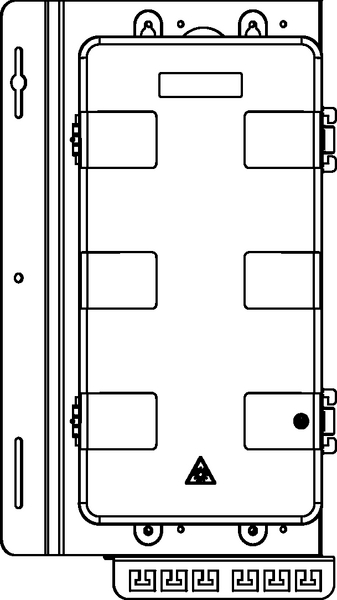

Technical Description	A V-shaped pole mounting bracket designed to provide mounting positions for 2 enclosures which is suitable for use with the Aerial Fibre Node (AFN) and the Fibre Facade Enclosure (FFE). Anchoring is provided at the base of the bracket for incoming cables. The bracket is manufactured from powder coated stainless steel and designed not to exceed the width of the pole top. The bracket can be pre-loaded with the enclosures and then secured to the pole.
Type	MB-AFN/FFE-V-BRKT-V2
