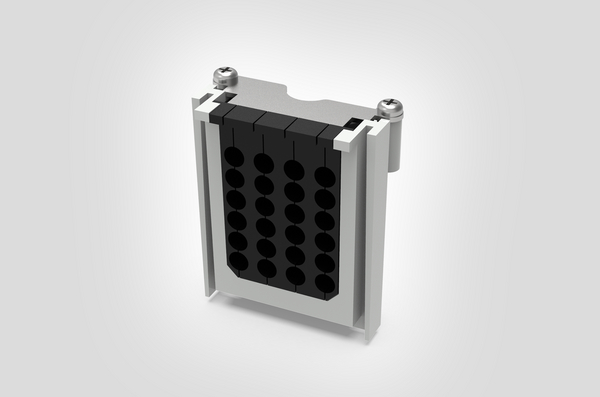

MDU S3 Drop Seal 24 x 5mm + Lockplate
Art.-No. 857-50236 | MDSLP-S3-24X5MM |  Details

    • Single Seal to manage up to 24 x 5mm drops
    • Quick and simple to fit
    • Addiitonal lockplate provided for enclosures with locks
    Add to watchlist
    Cable ∅ max 5.0mm
    Colour Grey RAL 7035 (RAL7035), Black (BK)
    Content Drop Gland Seal Plates

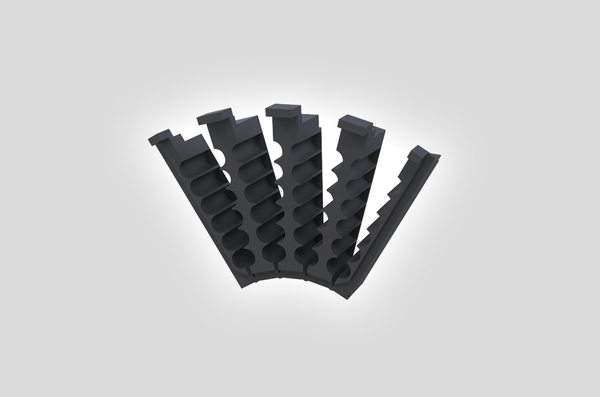

    Mulit Drop Seal
    Lock Fixing Plate
    Material Thermoplastic Elastomer (TPE), Acrylonitrile Butadiene Styrene (ABS)
    PART DESCRIPTION MDSLP-S3-24X5MM
    Pack Cont. 1pc.
    Package Content packed in bag
    Port count 24
    Product Description MDU S3 Drop Seal 24 x 5mm + Lockplate
    Product Group MDU S3 Drop Seal
    Short Description MDU S3 Drop Seal 24 x 5mm + Lockplate

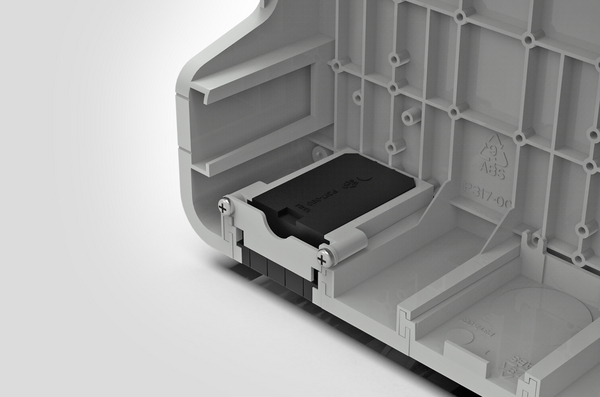

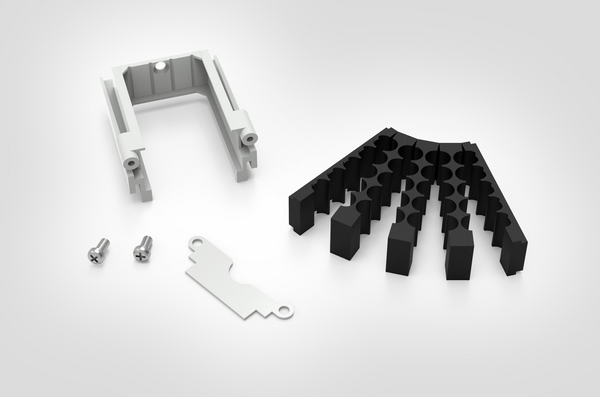

    Technical Description The MDSLP-S3-24X5MM is a mechanical seal manufactured from ABS and TPE. The seal has been designed to manage a maximum of 24 5mm drops in the central entry position in the MDU S3 enclosure when the enclosure has been fitted with a lock. Each seal kit is supplied with the seal plates, TPE spacer and a lockplate.
    Type MDSLP-S3-24X5MM
    Variant Indoor/Outdoor FTTx Enclosures
    Country of Origin GB
    GTIN-13 / EAN 5022660168055
    Packaging 1 - Height (m) 0.03m
    Packaging 1 - Length (m) 0.14m
    Packaging 1 - Volume (m³) 0.00042m³
    Packaging 1 - Weight (kg) 0.092kg
    Packaging 1 - Width (m) 0.10m
    ETIM 7.0 Key EC000879
    ETIM 8.0 Key EC000879
    ETIM 9.0 Key EC000879
