Unloaded MDU S3
Art.-No. 857-01480 | MDU-S3 |  Details

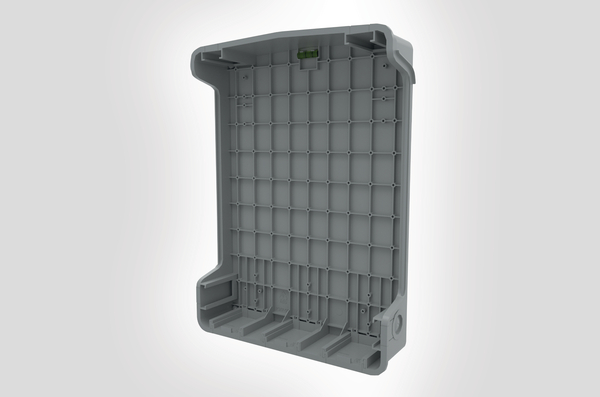

Internal view of the MDU - S3 Enclosure.

    • 7 Input/Output Ports
    • Horizontal/Vertical Lay Through Capability
    • Suitable for use with 250µm IR Systems
    • Inset position for Customer Logo
    • IP54/IK08
    • UV Stable
    • V0 Rating
    Show more
    Package size
    Add to watchlist
    Downloads CAD-Download
    Application Desigined for deployment within the last mile of the FTTx network. This enclosure can be used within a Point to Pont (P2P) or Point to Multi Point (P2MP) with the addition of PLC splitters, connectorised or bare end, pigtails and adaptors.
    Colour Grey RAL 7035 (RAL7035)
    Content S3 Enclosure
    3 x Entry/Exit Port Blanks
    In-built spirit level
    Fibre Picker
    Wall Mounting Kit
    Material Acrylonitrile Butadiene Styrene (ABS)
    PART DESCRIPTION MDU-S3
    Pack Cont. 1pc.
    Package Content packed in EA
    Port count 7
    Product Family Fibre Optic External/Internal Enclosure
    Product Group S3 Series MDU/MBU Enclosures
    Short Description Unloaded MDU S3

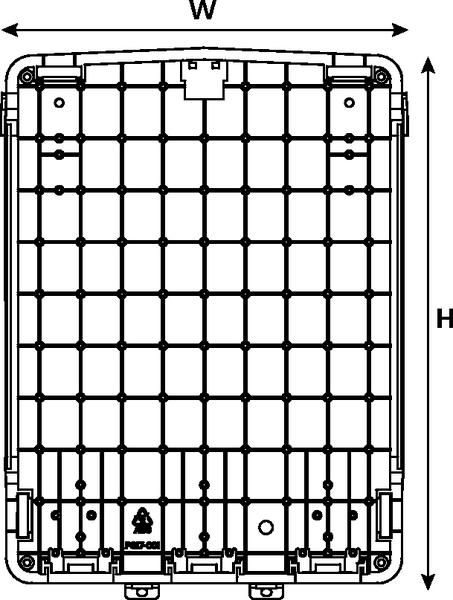

    Technical Description A 340 x 247 x 76mm (H x W x D) enclosure manufactured in light grey (RAL 7035) ABS (Acrylonitrile Butadiene Styrene). The enclosure is UV stable with an IP54, IK08 and V0 rating. Designed with 7 input/output ports, 3 across the bottom, 2 on the top and 1 on each side, each port will accommodate a single 20mm cable gland. A 100 x 25mm inset position on the front cover allows for a customer logo to be moulded in to the enclosure.
    Type MDU-S3
    Variant Indoor/Outdoor FTTx Enclosures
    Depth (D) 76mm
    Height (H) 340mm
    Weight/Unit 1.07kg
    Width (W) 247mm
    IP-Rating IP54
    Country of Origin GB
    GTIN-13 / EAN 5022660164156
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC001124
    ETIM 9.0 Key EC001124
