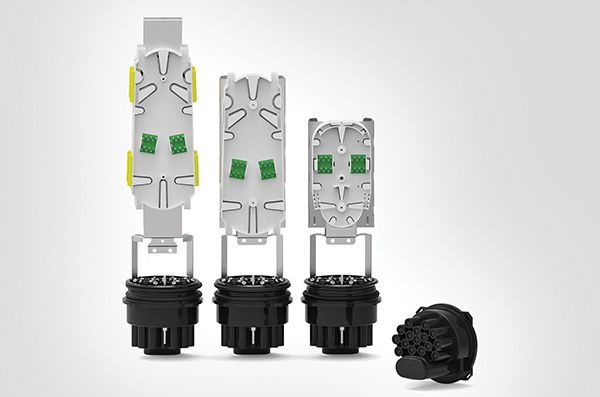

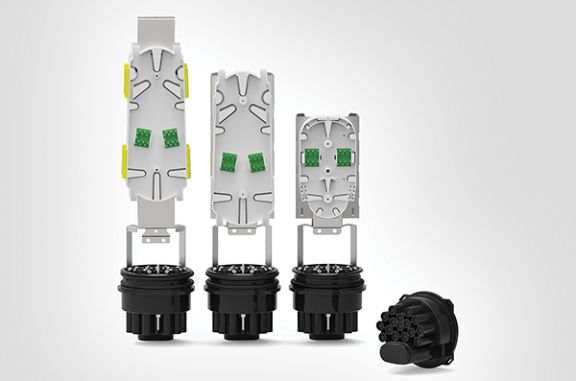

FRBU Dome Closure

The FRBU fibre splice closure distributes fibre directly to individual buildings or properties. The FRBU is a smaller fibre closure from HellermannTyton that is often deployed in rural and less built up locations with fewer buildings to connect.

The FRBU closure is supplied with a Polypropylene base. The mounting system is manufactured from Grade 304 stainless steel and can accommodate a maximum of 6 Hellapon Medium stacked or side hinged trays or 3 Hellapon Medium side hinged trays and basket, giving a maximum of 144 fibre splices based on 24 fibres per tray

The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays.

The FRBU has 3 base types:

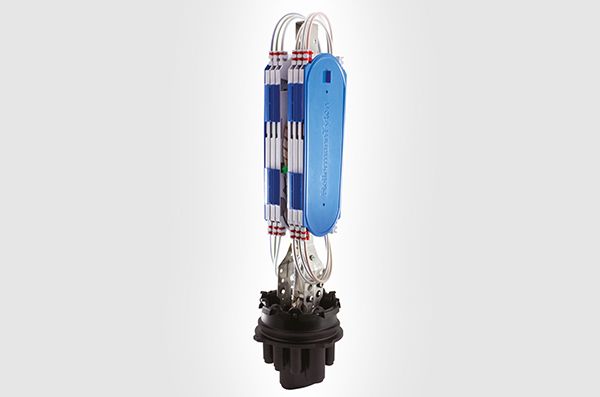

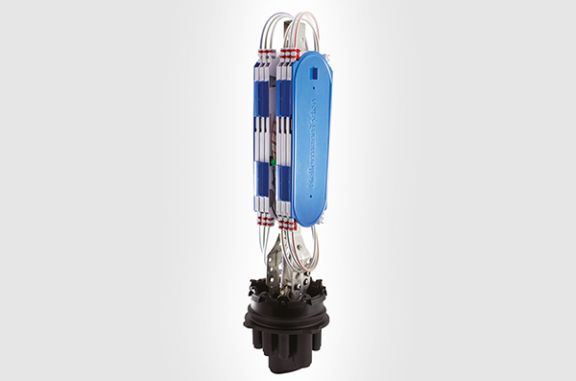

• 9 Port
• 11 Port
• 16 Port

Features and Benefits

• Maximum 144 fibre splice capacity
• 10 or 8 round ports and 1 oval port
• Accommodates Hellapon Medium stacked or side hinged trays
• Fibre storage basket for loop through applications (Hellapon Medium side hinged 3 tray version only)
• Maximum 24 splices per tray (double stacked)
• 3A and ANT splice options available
• Splitter accommodation
• Cablelok compatible for all port sizes
• Quick release cover
• Optional flash test valve and/or grounding feed-through
• Closure lengths: A (435mm) and B (505mm)

Features and Benefits

• Maximum 144 fibre splice capacity
• 16 round ports and 1 oval port
• 2 Cover Length options
• Fibre storage basket for loop through applications
• Maximum 6 Hellapon Medium trays
• Maximum 24 splices per tray (double stacked)
• Splitter accommodation
• Cablelok compatible for all port sizes
• Quick release cover
• Optional flash test valve and/or grounding feed-through
• Closure lengths: M* (360mm) and B (505mm)
