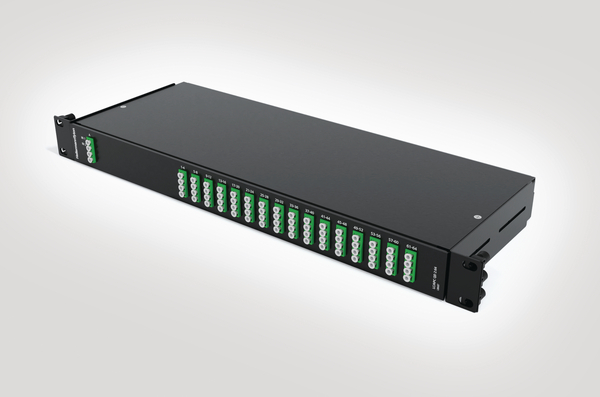

LC-APC 1 x 2:64 Splitter Distribution Panels
Art.-No. 857-02196 | RMSP-LCAPQD-1X2:64/BK |  Details

19” Panel with LC/APC QD Adaptors and 1 x 2:64 Splitter.

    • Industry standard 19” fixed panel format
    • Factory configured panels
    • Simple ‘plug and play’ design
    • Available in LC/APC Quad or SC/APC Duplex
    • Multiple splitters in one housing
    • Minimal impact on enclosure real estate
    • Suitable for FTTx, PON, LAN
    Show more
    Add to watchlist
    Downloads CAD-Download
    Application HellermannTyton rack mount splitter panels have been designed to house PLC splitter technology in a robust and user friendly 19” footprint. This allows a variety of splitter configurations to be easily installed into environments that utilize industry standard 19” mounting profiles whilst taking up minimal real estate within the enclosure.
    Connector Colour Green (GN)
    Connector Type LC-APC, LC Quad
    PART DESCRIPTION RMSP-LCAPQD-1X2:64/BK
    Product Family LC-APC Splitter Connectivity
    Product Group Rack Mount Splitter Distribution Panels
    Short Description LC-APC 1 x 2:64 Splitter Distribution Panels
    Technical Description The rack mount splitter panel housing is made from aluminium and powder coated in black. This not only makes the panel lightweight but also allows for use in external cabinet applications. The design is consistent with traditional fibre patch panels used within a LAN or data centre environment. The splitters are configured and managed in a factory environment and protected by a secure panel lid. Depending upon the configuration each panel houses a single or multiple array of PLC splitters terminated with either LC/APC or SC/APC connectivity onto 900um fibre. Every splitter is tested to 1310nm and 1550nm with a maximum connector loss of 0.25db. HellermannTyton take a unique approach to rack mount splitter panels by using LC/APC quad adaptors or SC/APC duplex adaptors. This allows for a higher density of splitters to be utilized in such a small space. Each configuration is assembled with a Traffolyte label which clearly indicates the sequenced input and output ports.
    Type RMSP-LCAPQD-1X2:64/BK
    Depth (D) 163mm
    Height (H) 44mm
    Width (W) 483mm
    ETIM 7.0 Key EC001130
    ETIM 8.0 Key EC001130
    ETIM 9.0 Key EC001130
