RapidNet 6 Port Category 6A UTP Short Body Cassette to Short Body Cassette
Art.-No. 859-51297
| RN06U6A-CBCBGN-10.0M
|
Details
- Exceeds Category 6A performance standards
- Designed for use with HellermannTyton Angled RapidNet Panels
- 24 ports in 1U of space
- Factory pre-terminated and tested
- 5* different colour options
- Reduce installation times by up to 85%
- Short body length for areas with limited space or restricted access
- Backward compatible with Category 6, Category 5e, Category 5 and voice
More products in this product group:
| Colour | Violet (VT) |
| Connector Colour | Green (GN) |
| Connector Type | RJ45 UTP |
| PART DESCRIPTION | RN06U6A-CBCBGN-10.0M |
| Pack Cont. | 10.0m |
| Performance Category | Category 6A (Class EA) |
| Port count | 6 |

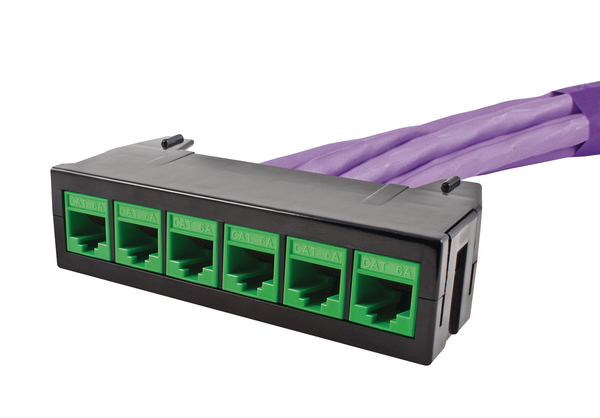

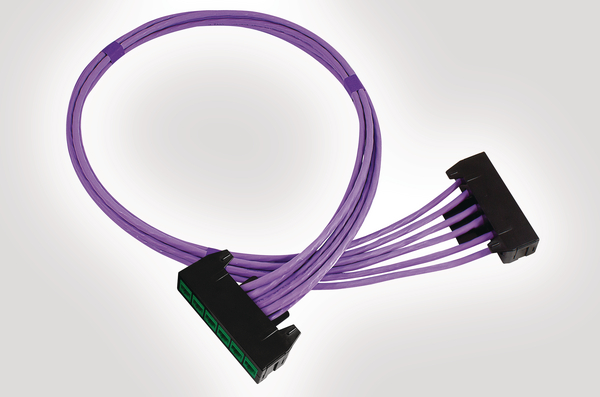

| Product Description | The Short Body RapidNet Cassette has been designed for use with HellermannTyton Angled and Standard RapidNet Panels and the shorter 32mm cassette body depth allows the RapidNet solution to be used in areas with limited access or restricted space where a standard RapidNet Cassette cannot be installed. The RapidNet Category 6A UTP Short Body Cassette to Cassette is pre-terminated with 6 Category 6A UTP keystone jacks at each end. The RapidNet 6 port Short Body cassette presents 6 RJ45 ports in one cassette, with 4 cassettes fitting into an angled or standard RapidNet panel. The cassettes simply push into the panel, snapping in with a releasable clip and a fully loaded panel presents 24 ports in 1U of space. The Category 6A UTP keystone jacks are available in 5 colours (Black (BK), Blue (BL), Green (GN), Red (RD) and Yellow (YL)) with the same colour being used at both ends for all jacks. This allows for differentiation of looms at the patch panel aiding identification access levels, paths, routes or systems within the network. |
| Product Family | Short Body Cassette to Short Body Cassette |
| Product Group | RapidNet 6 Port Category 6A UTP |
| Short Description | RapidNet 6 Port Category 6A UTP Short Body Cassette to Short Body Cassette |
| Technical Description | The RapidNet Category 6A UTP solution is designed using U-UTP cable loosely bundled in a 5 around 1 configuration which maintains performance and reduces alien crosstalk. The Short Body cassette has a 32mm depth and is manufactured with a simple push clip mechanism and polarising pips to prevent incorrect insertion. Rear cable management is provided within the RapidNet Short Body Cassette with integral strain relief which provides protection to all the cables and their terminations. All RapidNet terminations are tested to exceed all ISO/EIA 11801:2002 1.1 and ANSI/TIA/EIA 568-C Category 6A standards. All RapidNet Category 6A cables are made with LS0H material, complying with the latest European fire ratings. NB: Part Numbers given are for 10m looms in the standard 5 colours Black(BK), Blue(BL), Green(GN), Red(RD) and Yellow(YE). Lengths are available from 10m to 90m in 0.5m increments. *An additional 7 colour options are available on request, contact HellermannTyton Sales Desk for further details. |
| Type | RN06U6A-CBCBGN-10.0M |
Download
RN06UC6-CBCBBL-10.0M
859-06832
RN06UC6-CBCBBK-10.0M
859-06835
RN06UC6-CBCBRD-10.0M
859-06839
RN06UC6-CBCBGN-10.0M
859-06837
RN06UC6-CBCBYE-10.0M
859-06841
