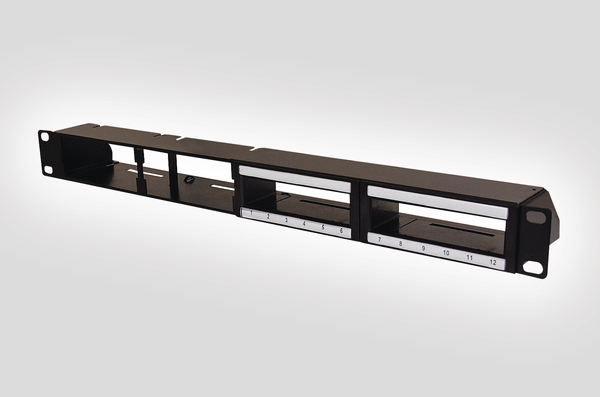

RapidNet 1U Hybrid Copper/Fibre Panel with Rack Snaps
Art.-No. 859-30042 | RNAHUXX-PA1URS-HH.SS |  Details

RapidNet 1U Hybrid Panel

    • Equivalent of 1U of fibre and 1U of copper in 1U of rack space
    • Maximum combined capacity of 24 copper ports and 288 fibre using RapidNet MTP VHD
    • Typical configuration 24 fibre and 24 copper ports
    • Label fields for identification of all ports
    Add to watchlist
    Colour Black (BK)
    Local order number RNAHUXX-PA1URS-HH.SS
    PART DESCRIPTION RNAHUXX-PA1URS-HH.SS
    Product Description The 1U RapidNet Hybrid Panel provides a simple 'Mix and Match' approach for both copper and fibre RapidNet. The panel offers capacity for the equivalent of 1U of fibre and 1U of copper in 1U of rack space, giving a saving of 1U of space each time the panel is used. The panels allow for a combination of 12 port high density copper RapidNet and 12 or 24 core fibre (direct terminated or MTP) or high density copper and RapidNet MTP VHD for up to 288 fibres. There are two configurations available.
    Product Family 1U Hybrid Copper/Fibre Panel
    Product Group RapidNet Accessories
    Short Description RapidNet 1U Hybrid Copper/Fibre Panel with Rack Snaps
    Technical Description The RapidNet Hybrid panel is manufactured from matt black powder coated mild steel to the standard 19" width. The panel is supplied with Rack Snap fixings as standard, panels can also be supplied with Cage Nuts, screw fixings or without fixings if required. The panel has dual labelling fields which can be customised through Alpha Label software at www.htdata.co.uk.
    Type RNAHUXX-PA1URS-HH.SS

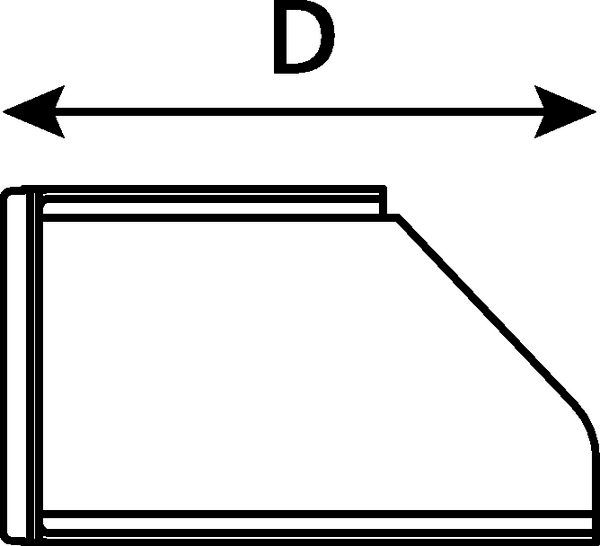

    Depth (D) 72mm
    Height (H) 44mm
    Width (W) 483mm
    ELV compliant (Article 4 - 2) YES
    Country of Origin GB
    Customs Number 85389099
    Dimensions W x H x D 483 mm x 44 mm x 72 mm
    GTIN-13 / EAN 5022660997549
    Packaging 1 - Qty 1
    Packaging 2 - Qty 0
    Packaging 3 - Qty 0
    Packaging 4 - Qty 0
