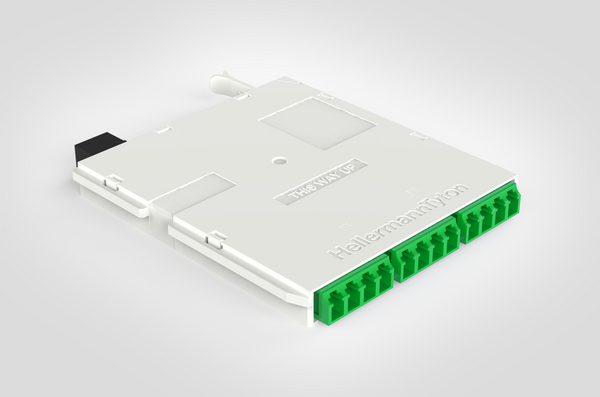

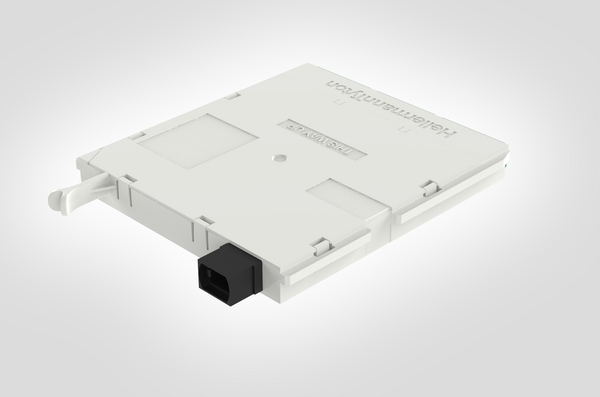

RapidNet Ultra12 Cassette - 12F - Singlemode OS2 - LC/APC - 1x MTP(M) Polarity A
Art.-No. 859-24031 | RNU12-A-12S2LP1M | Details

Distributors near you

More products in this product group:

Application	High Density Fibre System, Data centre, AI, Enterprise, Co-Location, Hyperscale.
Colour	Green (GN), White (WH)
Connector Colour	Green (GN)
Connector Type	LC-APC
PART DESCRIPTION	RNU12-A-12S2LP1M
Package Content packed in	pcs.
Performance Category	OS2 Single Mode, Single Mode, G657.A1
Port count	12
Product Description	RapidNet Ultra12 Cassette - 12F - Singlemode OS2 - LC/APC - 1x MTP(M) Polarity A
Product Family	Ultra12 Cassette Assembly
Product Group	Data Centre High Density Fibre System - Ultra12 Cassette Assembly
Short Description	RapidNet Ultra12 Cassette - 12F - Singlemode OS2 - LC/APC - 1x MTP(M) Polarity A
Technical Description	RapidNet ULTRA12 Cassettes are designed to efficiently transition MTP Backbone assemblies into small form factor (SFF)or very small form factor (VSFF) connectivity. Cassettes are factory terminated and tested offering best in class ultra low loss connectivity for rapid deployment of ULTRA12 fibre systems. The compact design allows for a ultra high density installations to be realised, maximizing critical connectivity real estate. RapidNet ULTRA12 Cassettes are designed to be compatible with future VSFF connectors such as CS and SN which will take the fibre capacity from 12 fibres (LC) to either 18 fibres (CS) or 24 fibres (SN).RapidNet ULTRA12 Cassette assemblies are made with 250um Corning® SMF-28® fibres for Singlemode and ClearCurve® fibres for Multimode.
Type	RNU12-A-12S2LP1M
