RapidNet Ultra 1U 19" Panel Housing For Ultra12 Cassettes - White
Art.-No. 859-30076 | RNU1U12WH | Details

Distributors near you

Application	High Density Fibre System, Data centre, AI, Enterprise, Co-Location, Hyperscale.
Colour	White (WH)
PART DESCRIPTION	RNU1U12WH
Package Content packed in	box
Performance Category	Modular
Product Description	19" Panel Housing to support RapidNet Ultra12 cassettes. Available in RAL 9003 Signal White.
Product Family	19" Rack Mountable for Ultra12 Cassettes
Product Group	Data Centre High Density Fibre Panel Housing
Short Description	RapidNet Ultra 1U 19" Panel Housing For Ultra12 Cassettes - White

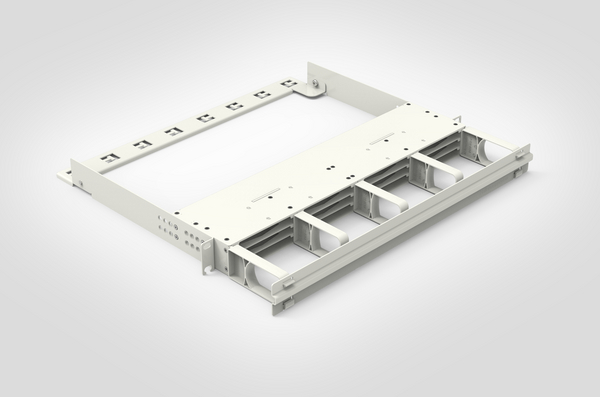

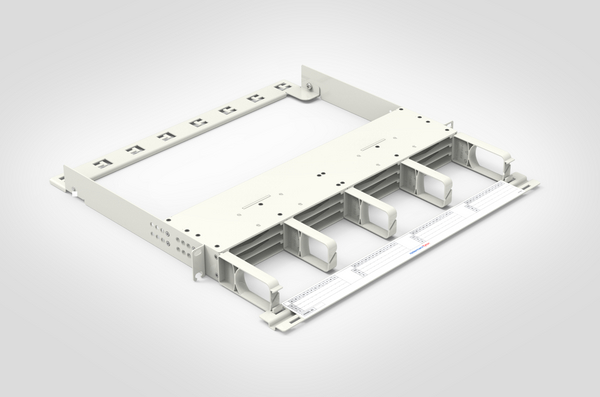

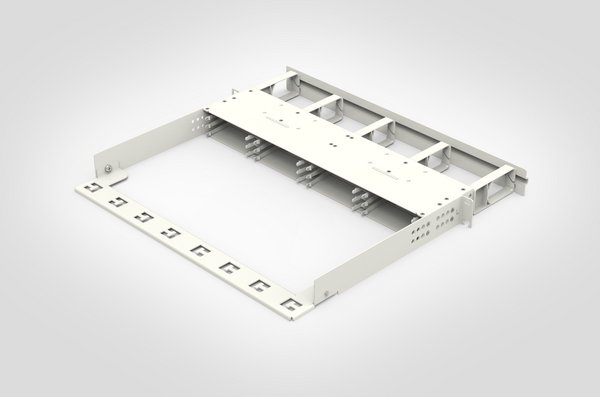

Technical Description	1U 19” panel housings for ULTRA12 cassette footprints. Each housing comes standard with integrated rear cable management support for managing and anchoring incoming cables, conduit or breakout manifolds. Adjustable side mounting brackets allow the panel to be recessed. Integrated front patchcord management rings support high density patching by helping to maintain correct bend radius, directing cables naturally into vertical management and remove the need for additional horizontal management. The pivoting door with port I.D. matrix maintains protection for the patching field and offers a clean look. The door swings down and can be fully removed. The 19” panel housing comes pre-assembled with mounting kit and rear manager to fit onsite.
Type	RNU1U12WH

ETIM 9.0 Key

EC001130
