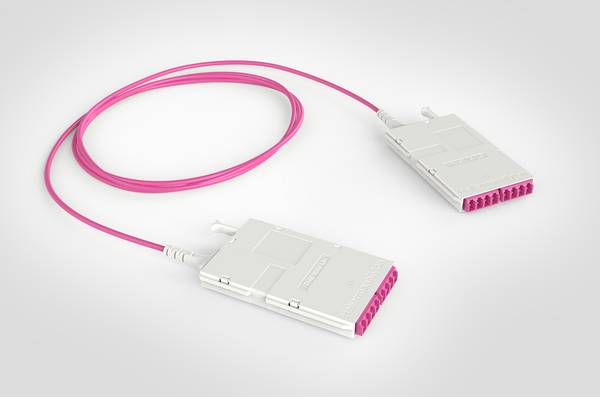

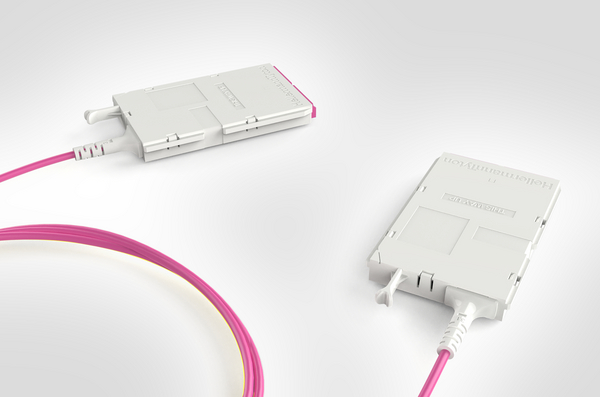

RapidNet Ultra8 - LC Cassette to LC Cassette Loom - 8F Multimode OM4 - Polarity A
Art.-No. 859-24088
| RNU8-A-08M4LCLCM010M
|
Details
- High fibre density: LC 8f, CS 12F, SN 16F per cassette
- Custom length cassette to cassette loom
- Reduced insertion loss performance
- Factory terminated & tested
- Best in class ultra low loss connectivity
- Effortless plug & play system
- UL94 V0 compliant
- 3.0mm Single jacket or 4.5x0.5mm Double Jacket options
- Multimode made with Corning® ClearCurve® Fibres
- CPR Euroclass: B2ca-s1a, d1, a2
More products in this product group:
| Application | High Density Fibre System, Data centre, AI, Enterprise, Co-Location, Hyperscale. |
| Colour | Magenta (MG) |
| Connector Colour | Magenta (MG) |
| Connector Type | LC |
| PART DESCRIPTION | RNU8-A-08M4LCLCM010M |
| Package Content packed in | EA |
| Performance Category | Multimode, OM4 Multimode |
| Port count | 8 |
| Product Description | RapidNet Ultra8 - LC Cassette to LC Cassette Loom - 8F Multimode OM4 - Polarity A |
| Product Family | Ultra8 Cassette to Cassette Pre-Terminated Loom |
| Product Group | Data Centre High Density Fibre System - Ultra8 Cassette to Cassette Pre-Terminated Loom |
| Short Description | RapidNet Ultra8 - LC Cassette to LC Cassette Loom - 8F Multimode OM4 - Polarity A |
| Technical Description | RapidNet ULTRA8 Cassette to Cassette looms are designed to offer localised patching fields at both ends of the link. This configuration is beneficial when there isn’t the immediate requirement to utilise all the ports. Looms are factory terminated and tested offering best in class ultra low loss connectivity for rapid deployment of ULTRA8 fibre systems, supporting the increasing demand on data centres. Cassette to Cassette looms offer lower insertion loss compared to typical cassette and backbone cable configurations. The compact design allows for a ultra high density installations to be realised, maximizing critical connectivity real estate. RapidNet ULTRA8 Cassettes are designed to be compatible with future VSFF connectors such as CS and SN which will take the fibre capacity from 8 fibres (LC) to either 12 fibres (CS) or 16 fibres (SN). Looms can be produced to your required length in either single or double jacket constructions.Cassette to Cassette looms are made with 3.0mm single jacket cables which contain Corning® ClearCurve® Multimode fibres. Cables conform to B2ca-s1a, d1, a2 CPR EuroClass. |
| Type | RNU8-A-08M4LCLCM010M |
| Variant | Modular Fiber Assembly |
