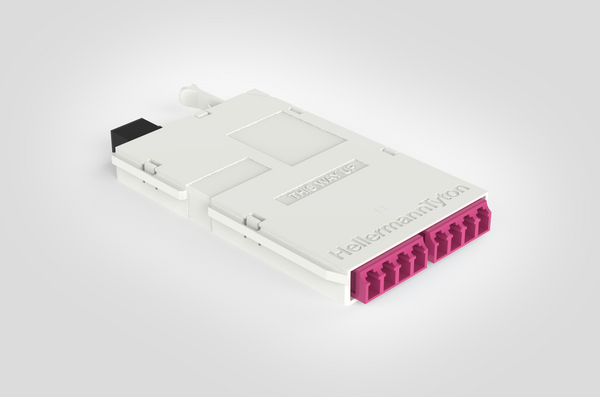

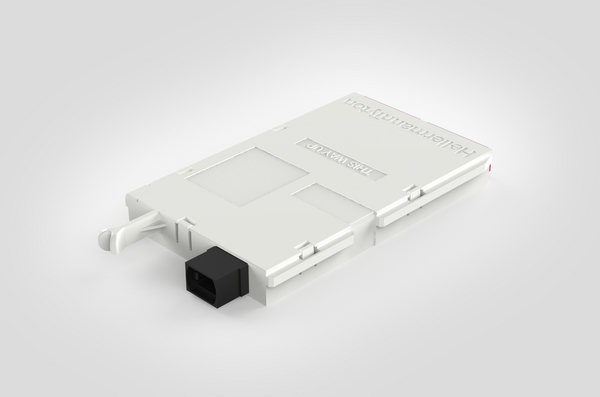

RapidNet Ultra8 Cassette - 12F - Multimode OM4 - LC - 1x MTP(M) Polarity QSFP
Art.-No. 859-24028
| RNU8-Q-08M4LC1M
|
Details
- High fibre density: LC 8F, CS 12F, SN 16F per cassette
- Multimode made with Corning® ClearCurve® Fibres
- Rear MTP Elite connectivity
- Factory terminated & tested
- Best in class ultra low loss connectivity
- Effortless plug & play system
- Signal White RAL 9003
- UL94 V0 compliant
More products in this product group:
Application | High Density Fibre System, Data centre, AI, Enterprise, Co-Location, Hyperscale. |
Colour | Magenta (MG) |
Connector Colour | Magenta (MG) |
Connector Type | LC |
PART DESCRIPTION | RNU8-Q-08M4LC1M |
Package Content packed in | EA |
Performance Category | Multimode, OM4 Multimode |
Port count | 8 |
Product Description | RapidNet Ultra8 Cassette - 12F - Multimode OM45 - LC - 1x MTP(M) Polarity ABCUniversal 1 |
Product Group | Data Centre High Density Fibre System - Ultra8 Cassette Assembly |
Short Description | RapidNet Ultra8 Cassette - 12F - Multimode OM4 - LC - 1x MTP(M) Polarity QSFP |
Technical Description | RapidNet ULTRA8 Cassettes are designed to efficiently transition MTP Backbone assemblies into small form factor (SFF)or very small form factor (VSFF) connectivity. Cassettes are factory terminated and tested offering best in class ultra low loss connectivity for rapid deployment of ULTRA8 fibre systems. The compact design allows for a ultra high density installations to be realised, maximizing critical connectivity real estate. RapidNet ULTRA8 Cassettes are designed to be compatible with future VSFF connectors such as CS and SN which will take the fibre capacity from 8 fibres (LC) to either 12 fibres (CS) or 16 fibres (SN). RapidNet ULTRA8 Cassette assemblies are made with 250um Corning® ClearCurve® Multimode fibres. |
Type | RNU8-Q-08M4LC1M |
Variant | Modular Fiber Assembly |
