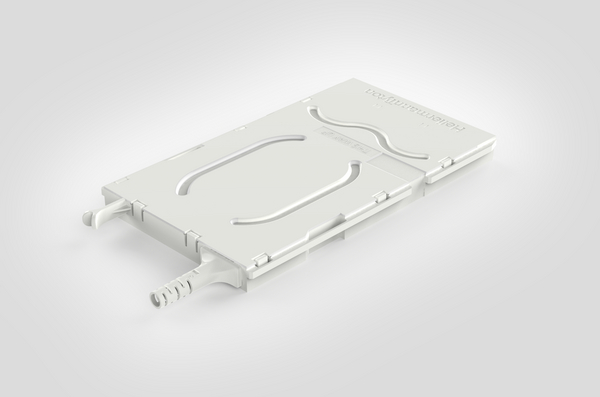

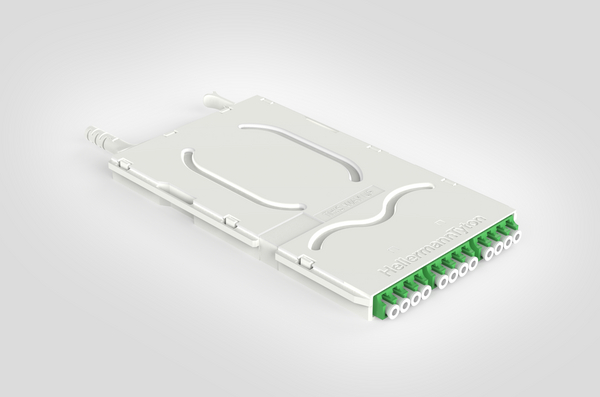

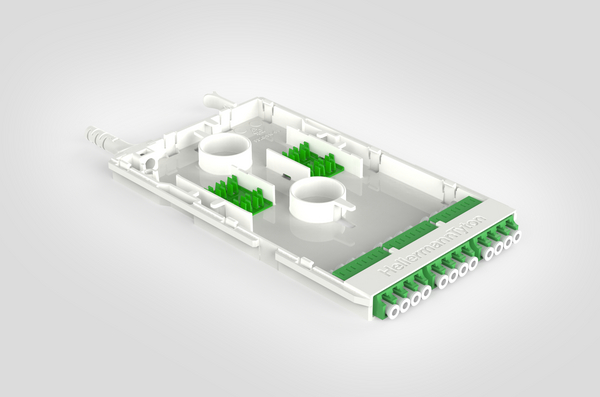

RapidNet Ultra12 Splice Cassette - LC/APC SM Green Adaptors - OS2 1m T598 Pigtails
Art.-No. 859-24083 | RNUS12-LPGHCP |  Details

RapidNet Ultra12 Splice Cassette with LC QD.

    • High fibre density: LC 12F
    • Allows for quick on-site splicing
    • Pre-loaded pigtails and adaptors
    • Rapid deployment of ultra high density fibre applications
    • Best in class ultra low loss connectivity
    • Rear loading mounting hardware
    • Effortless plug & play system
    • Supports OS2 G657-A1 fibre specifications
    • Signal White RAL 9003
    • UL94 V0 compliant
    Show more
    Add to watchlist
    Downloads
    Application High Density Fibre System, Data centre, AI, Enterprise, Co-Location, Hyperscale.
    Colour Green (GN), White (WH)
    Connector Colour Green (GN)
    Connector Type LC-APC
    Installed Adapters 3
    PART DESCRIPTION RNUS12-LPGHCP
    Package Content packed in pcs.
    Performance Category G657.A1, OS2 Single Mode, Single Mode
    Port count 12
    Product Description RapidNet Ultra12 Splice Cassette - LC/APC SM Green Adaptors - OS2 1m T598 Pigtails
    Product Family Ultra12 Splice Cassette
    Product Group Data Centre High Density Fibre System - Ultra12 Splice Cassette
    Short Description RapidNet Ultra12 Splice Cassette - LC/APC SM Green Adaptors - OS2 1m T598 Pigtails
    Technical Description RapidNet ULTRA Series Splice Cassettes are designed to facilitate field splicing which is ideal for dynamic data centre environments. RapidNet splice cassettes come pre-loaded with pigtails and adaptors relevant to the performance standard you require. Available for ULTRA12 applications, the splice cassette is compatible with RapidNet ULTRA12 panel housings.
    Type RNUS12-LPGHCP
    Depth (D) 189mm
    Height (H) 12mm
    Width (W) 94mm
    Halogen-free Yes
    Optical Performance Singlemode
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Dimensions W x H x D 94 mm x 12 mm x 189 mm
    GTIN-13 / EAN 5022660197741
    ETIM 9.0 Key EC001130
