12MM-3924-PE-HD-VT | Details

Distributors near you

More products in this product group:

Application	Suitable for the extension or construction of passive infrastructure in fibre optic networks speedpipe ground is suitable for direct burying in all FTTx networks as well as for branching-off from existing duct routes.
Cable ∅ max	10.4mm
Cable ∅ min	6.5mm
Colour	Purple (PE)
Local order number	3924
Material	Polyethylene, high density (PE-HD)
PART DESCRIPTION	SP-G-16/12MM-3924-PE-HD-VT
Pack Cont.	1200m
Package Content packed in	drum

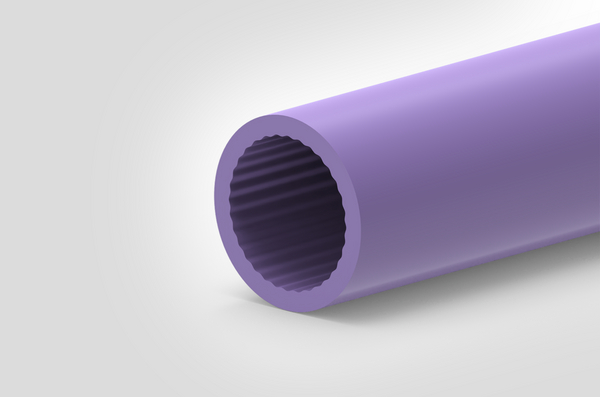

Product Description	The 16/12mm Speedpipe Ground (SP-G) is a thick walled duct manufactured from high quality HDPE material suitable for direct buried applications. The duct is manufactured to a high specification with sliding ribs and a low friction liner (LFL) which provides the optimum air cushion between the fibre optic cable and the duct during the blowing process. The tight manufacturing specification and high apex pressure resistance helps our speedpipe retain its round shape and enables consistent results when blowing in fibre optic cables, even after decades of use in its application.
Product Family	Direct Buried/Thick Walled/HDPE
Product Group	SP-G SpeedPipe Ground

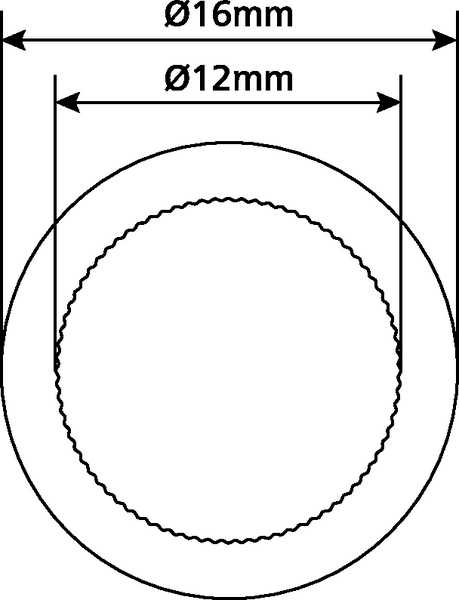

Short Description	SP-G SpeedPipe Ground 16/12MM
Type	SP-G-16/12MM-3924
