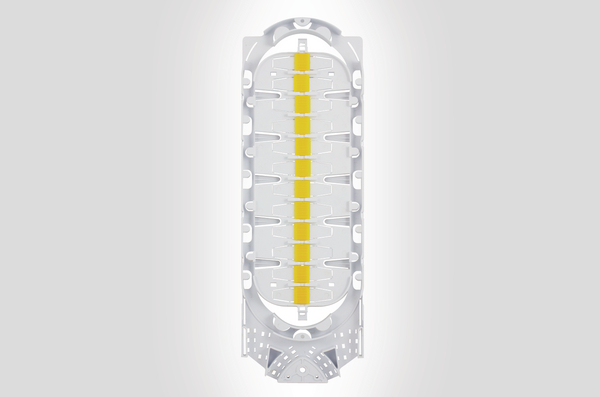

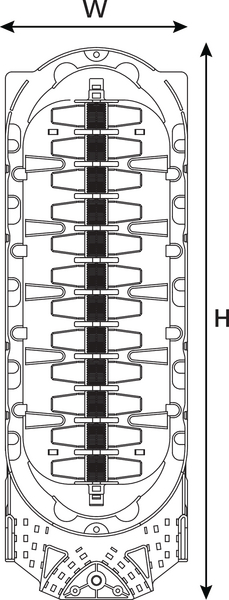

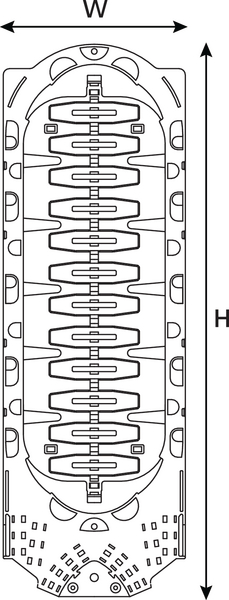

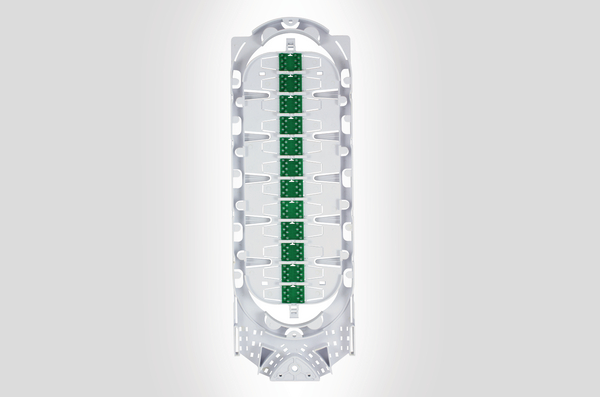

Hellamass Large Splice Tray with ANT Splice Bridges
Art.-No. 857-40303 | TRAY-HL-ANT-01 | Details

Bend radius of 37.5mm
4 large fibre entry ports
Ports allow fibre entry and exit from the same side
Facilitates fibre route reversal
Optical splitter accommodation up to a maximum of 70 x 20 x 60mm
Fibre storage area on reverse side
Different splice protector holder options allow for a splice type of up to 60mm in length
Maximum splice capacity of 144 fibres

Distributors near you

More products in this product group:

Content	2 x Hellamass Large Trays, 24 x Crimp (ANT) splice protector holders
PART DESCRIPTION	TRAY-HL-ANT-01
Package Content packed in	bag
Product Family	Hellamass Large
Product Group	Tubed Fibre Optic Splice Tray
Qty Trays	1
Short Description	Hellamass Large Splice Tray with ANT Splice Bridges
Technical Description	The Hellamass Large is a rectangular double sided tray designed for high fibre count multiple applications which is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The tray is supplied with 2 clear plastic cover plates and is mounted using a single pivot point on to a flexible hinge. The overall dimensions of the tray are 440 x 145 x 19mm and the maximum splice capacity of 144 fibres is based on 12 heatshrink 3A splice protector holders fitted to each side of the tray. The Hellamass large tray it is suitable for use in the FML and UFC tubed closures as well as rack mounted applications.
Type	TRAY-HL-ANT-01
Type of Tray	Hellamas Large
