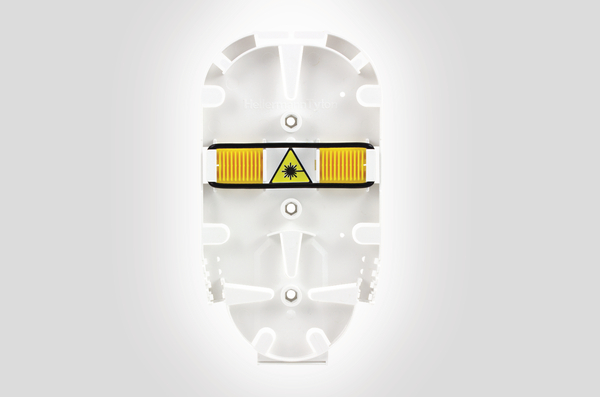

Hellapon Medium Splice Tray with ANT Splice Bridges
Art.-No. 857-40279 | TRAY-HS-ANT-01 |  Details

Small Hellapon Tray with ANT splice bridges

    • Bend radius 30mm
    • 2 fibre entry ports
    • 2 mounting positions for splice protector inserts
    • Option for optical splitter/3A or ANT splice bridge
    • Optical splitter accommodation up to a maximum of 70 x 20 x 6mm
    • Back to back mounting capability allows routing of fibre between trays
    • Maximum splice capacity of 24 fibres
    • Splice retaining strap
    Show more
    Add to watchlist
    Content 1 x Hellapon Small Trays, 2 x Crimp (ANT) splice protector holders
    PART DESCRIPTION TRAY-HS-ANT-01
    Package Content packed in bag
    Product Family Hellapon Small
    Product Group Tubed Fibre Optic Splice Tray
    Qty Trays 1
    Short Description Hellapon Medium Splice Tray with ANT Splice Bridges
    Technical Description The Hellapon small tray is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 158 x 85 x 9mm and the maximum splice capacity of 24 fibres is based on 24 double stacked heatshrink 3A splice protectors up to 60mm long. The Hellapon small tray accepts a wide range of splice protectors and can accommodate 2 x 60 x 70 x 4mm optical splitters when using the optional splitter/3A or ANT splice bridge. A single optical splitter up to a maximum of 70 x 20 x 6mm can be fitted into the tray in place of a splice bridge. The tray can be mounted either on a fixed support or flexible end mounted hinge and is suitable for use in the FST and FRBU tubed closures.
    Type TRAY-HS-ANT-01
    Type of Tray Hellapon Small

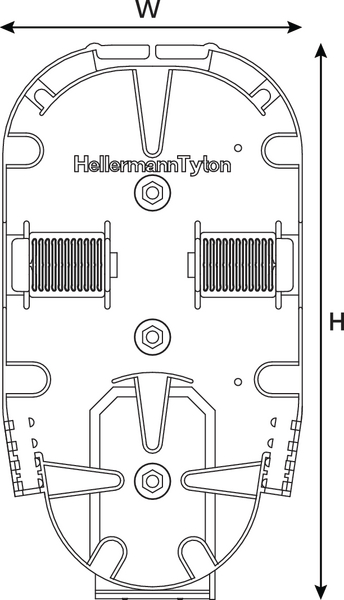

    Depth (D) 9mm
    Height (H) 158mm
    Width (W) 85mm
    Country of Origin GB
    GTIN-13 / EAN 5022660113314
    ETIM 7.0 Key EC000762
    ETIM 8.0 Key EC000762
    ETIM 9.0 Key EC000762
