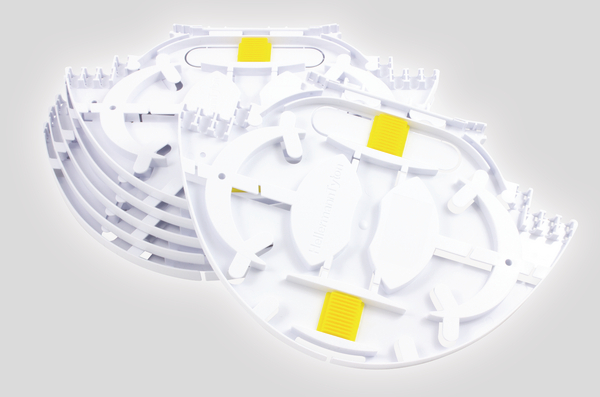

Hellipse NZDF SE-A Splice Trays with 3A Splice Bridges
Art.-No. 857-40271 | TRAY-NZDF-SE-A-3A-06 | Details

Distributors near you

More products in this product group:

Content	6 x Hellipse NZDF SE-A, 12 x Heatshrink (3A) splice protector holders
Material	Acrylonitrile Butadiene Styrene (ABS)
PART DESCRIPTION	TRAY-NZDF-SE-A-3A-06
Package Content packed in	bag
Product Family	Hellipse NZDF SE-A
Product Group	Tubed Fibre Optic Splice Tray
Qty Trays	6
Short Description	Hellipse NZDF SE-A Splice Trays with 3A Splice Bridges

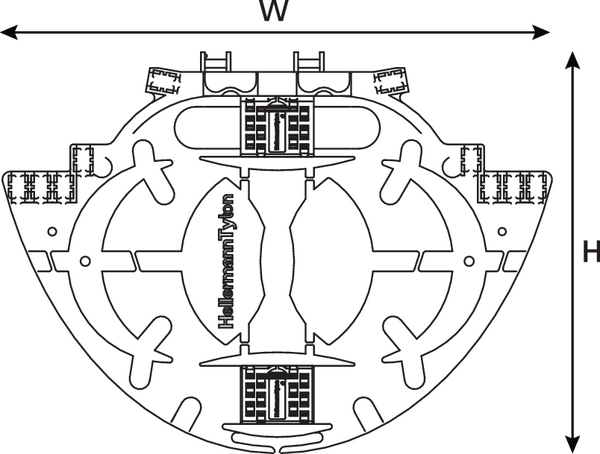

Technical Description	The Hellipse NZDF SE-A is an elliptical tray designed for single element and single circuit applications which is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 202 x 148 x 7mm. The Hellipse NZDF SE-A tray accepts a wide range of splice protectors and can accommodate 2 x 60 x 7 x 4mm optical splitters when using the optional splitter/3A or ANT splice bridge. A single optical splitter up to a maximum of 70 x 20 x 6mm can be fitted into the tray in place of a splice bridge. The tray has 2 pivot points to allow for mounting into a 6 tray module and is suitable for use in the FDN or UFC tubed closures. The maximum splice capacity of the Hellipse NZDF SE-A tray is based on 24 double stacked heatshrink (3A) splice protectors upto 60mm long.
Type	TRAY-NZDF-SE-A-3A-06
Type of Tray	Hellipse NZDF SE-A
