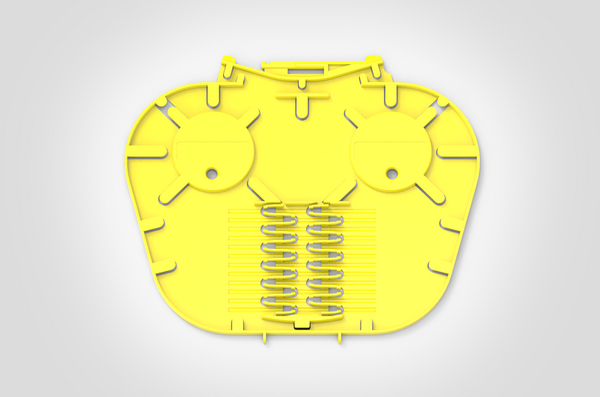

Compact IR SC 3A Splice Trays
Art.-No. 857-41106 | TRAY-SC-B-CFNIR-YL-3A-06 |  Details

CFNIR SC Splice Tray with moulded 3A fins.

    • Positive fibre management - minimum bend radius 15mm
    • 2 fibre entry ports
    • Moulded splice holder fins splice protectors
    • Maximum splice capacity of 12 fibres
    Add to watchlist
    Downloads
    Colour Yellow (YE)
    Content CFNIR Compact Single Circuit 3A Trays - Yellow (6)
    Material Acrylonitrile Butadiene Styrene (ABS)
    PART DESCRIPTION TRAY-SC-B-CFNIR-YL-3A-06
    Pack Cont. 6
    Product Family Compact IR Single Element SC
    Product Group CFNIR Fibre Optic Splice Tray
    Qty Trays 6
    Short Description Compact IR SC 3A Splice Trays
    Splice Capacity 12
    Technical Description The Compact Integrated Routing (IR) single circuit tray is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 150 x 134 x 3.5mm. The single circuit tray has moulded splice protector holders which are positioned at the front of the tray for ease of measurement and installation. The maximum splice capacity of the tray is based on 12 x 3A splice protectors upto 60mm long. The Compact IR single circuit tray is suitable for use in the CFNIR closure.
    Type TRAY-SC-B-CFNIR-YL-3A-06
    Type of Tray Compact SC-B
    Depth (D) 3.5mm
    Height (H) 134mm
    Length (L) 150mm
    Country of Origin GB
    GTIN-13 / EAN 5022660194139
    ETIM 7.0 Key EC000762
    ETIM 8.0 Key EC000762
    ETIM 9.0 Key EC000762
