21/12/2024

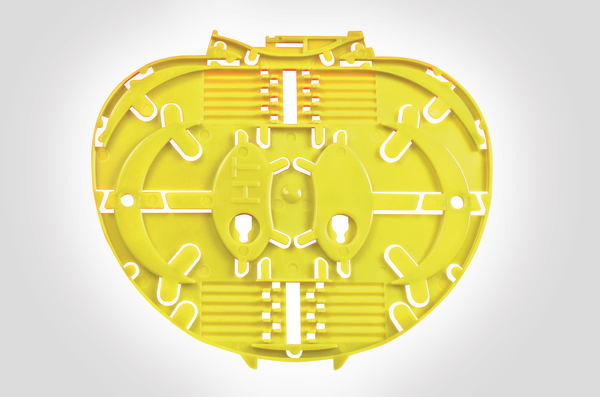

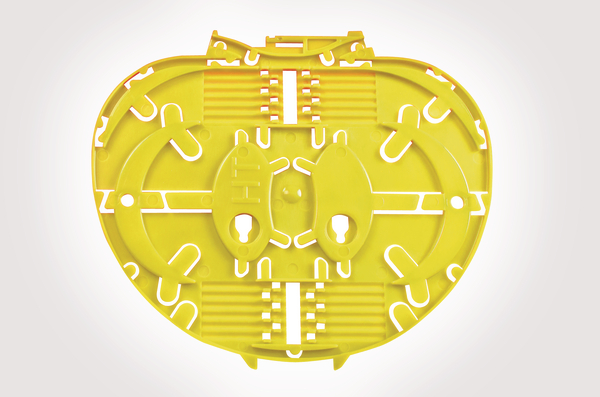

SC-B-IR Splice Trays with 12 3A Moulded Splice Holder Fins
Art.-No. 857-40502 | TRAY-SC-B-IR-YL-2X3A-12 |  Details

Single Circuit IR 3A Splice Tray.

    • Positive fibre management minimum bend radius 30mm
    • 2 fibre entry ports
    • Moulded splice holder fins for heatshrink (3A) splice protectors
    • Maximum splice capacity of 12 fibres
    Add to watchlist
    Downloads
    Colour Yellow (YE)

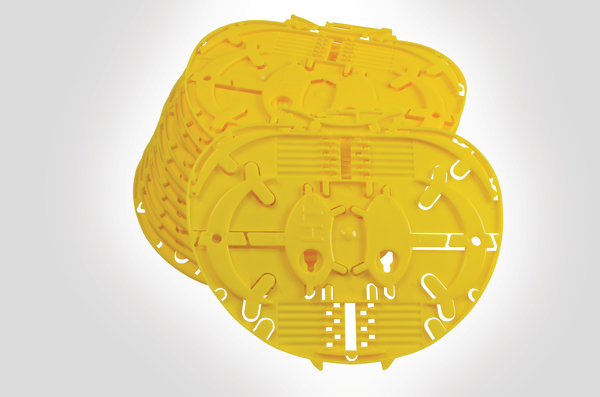

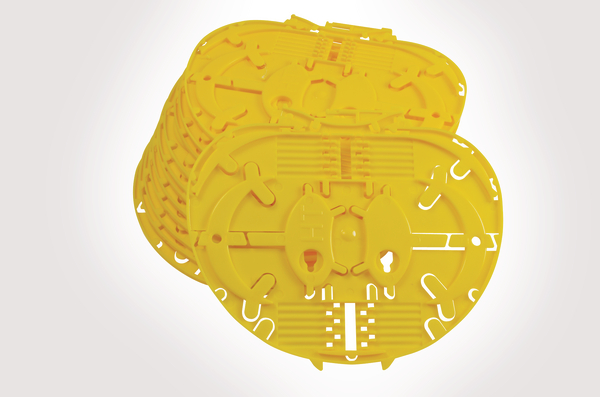

    Content 12 x IR Single Circuit Yellow SC-B Heatshrink (3A) Trays
    Material Acrylonitrile Butadiene Styrene (ABS)
    PART DESCRIPTION TRAY-SC-B-IR-YL-2X3A-12
    Pack Cont. 12pcs.
    Package Content packed in bag
    Product Family IR Single Circuit SC-B
    Product Group Integrated Routing Fibre Optic Splice Tray
    Qty Trays 12
    Short Description SC-B-IR Splice Trays with 12 3A Moulded Splice Holder Fins
    Technical Description The Integrated Routing (IR) single circuit SC-B trays is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 148 x 125 x3.5mm. The SC-B tray will accomodate 12 heatshrink (3A) splice protectors. The IR single circuit SC-B tray is suitable for use in the UFC-IR, FDN-IR and FML-IR closures.
    Type TRAY-SC-B-IR-YL-2X3A-12
    Type of Tray IR SC-B
    Depth (D) 3.5mm
    Height (H) 125mm
    Width (W) 148mm
    Hazardous Goods No
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 5022660162787
    Packaging 1 - Weight (kg) 0.2kg
    ETIM 7.0 Key EC000762
    ETIM 8.0 Key EC000762
    ETIM 9.0 Key EC000762
    UNSPSC Key 43223337
