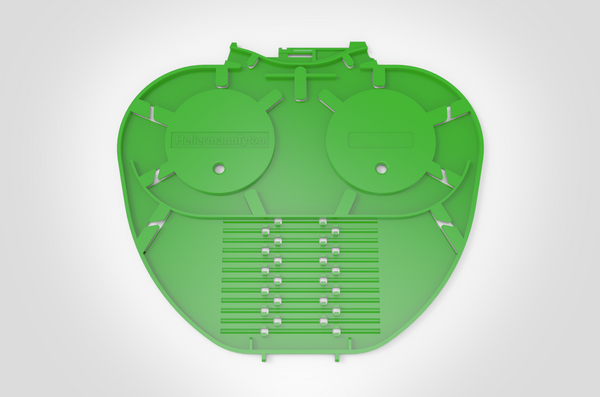

SC-B MKII Splice Trays in Green with 12 3A Moulded Splice Holder Fins
Art.-No. 857-40687 | TRAY-SC-B-MKII-GN-2X3A-12 |  Details

Single Circuit IR 3A MKII Splice Tray

    • Positive fibre management minimum bend radius 15mm
    • 2 fibre entry ports
    • Moulded splice holder fins for heatshrink (3A)
    • Splice holders positioned at the front of the tray for ease of fibre measurement during installation
    • Maximum splice capacity of 12 fibres
    Show more
    Add to watchlist
    Downloads
    Colour Green (GN)
    Content 12 x IR Single Circuit MKII Green SC-B Heatshrink (3A) Trays
    Material Acrylonitrile Butadiene Styrene (ABS)
    PART DESCRIPTION TRAY-SC-B-MKII-GN-2X3A-12
    Pack Cont. 12pcs.
    Package Content packed in bag
    Product Family IR Single Circuit SC-B MKII
    Product Group Integrated Routing Fibre Optic Splice Tray
    Qty Trays 12
    Short Description SC-B MKII Splice Trays in Green with 12 3A Moulded Splice Holder Fins
    Technical Description The Integrated Routing (IR) single circuit SC-B MKII tray is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 150 x 124 x 3.5mm. The IR single circuit tray moulded splice protector holders are positioned at the front of the tray for ease of fibre measurement and installation. The maximum splice capacity of the tray is based on 12 heatshrink (3A) splice protectors up to 60mm long. The IR single circuit tray is suitable for use in the UFC-IR, FDN-IR or FML-IR closures.
    Type TRAY-SC-B-MKII-GN-2X3A-12
    Type of Tray Integrated Routing SC-B MKII
    Depth (D) 3.5mm
    Height (H) 124mm
    Width (W) 150mm
    Packaging 1 - Height (m) 0.381m
    Packaging 1 - Length (m) 0.254m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0m³
    Packaging 1 - Weight (kg) 0.2kg
    ETIM 7.0 Key EC000762
    ETIM 8.0 Key EC000762
    ETIM 9.0 Key EC000762
