21/12/2024

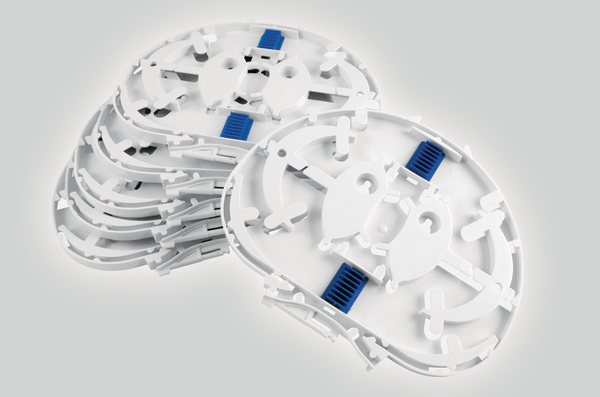

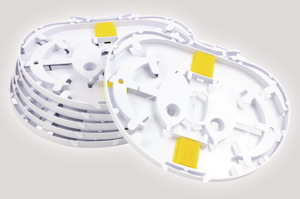

SE-IR Splice Trays with 6A Splice Bridges
Art.-No. 857-40251 | TRAY-SE-IR-2X6A-06 |  Details

Single Element IR Trays with 6a splice bridges (6 pk)

    • Positive fibre management - minimum bend radius 30mm
    • 2 fibre entry ports
    • 2 mounting positions for splice inserts
    • Option for optical splitter/3A or ANT splice bridge
    • Optical splitter accommodation up to a maximum of 60 x 7 x 4mm
    • Maximum splice capacity of 24 fibres (double stacked)
    • Different splice bridge options allow for a splice type of up to 60mm
    Show more
    Add to watchlist
    Downloads
    Colour White (WH)
    Content 6 x IR Single Element Trays, 12 x Heatshrink (6A) splice protector holders
    Material Acrylonitrile Butadiene Styrene (ABS)
    PART DESCRIPTION TRAY-SE-IR-2X6A-06
    Pack Cont. 6pcs.
    Package Content packed in bag
    Product Family IR Single Element SE
    Product Group Integrated Routing Fibre Optic Splice Tray
    Qty Trays 6
    Short Description SE-IR Splice Trays with 6A Splice Bridges
    Technical Description The Integrated Routing (IR) single element splitter tray is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 148 x 125 x 7mm. The IR single element splitter tray is supplied with 2 x 6A splice bridges. The maximum splice capacity of the tray is 18 fibres. The IR single element splitter trays is suitable for use in the UFC-IR, FDN-IR and FML-IR closures.
    Type TRAY-SE-IR-2X6A-06
    Type of Tray IR SE

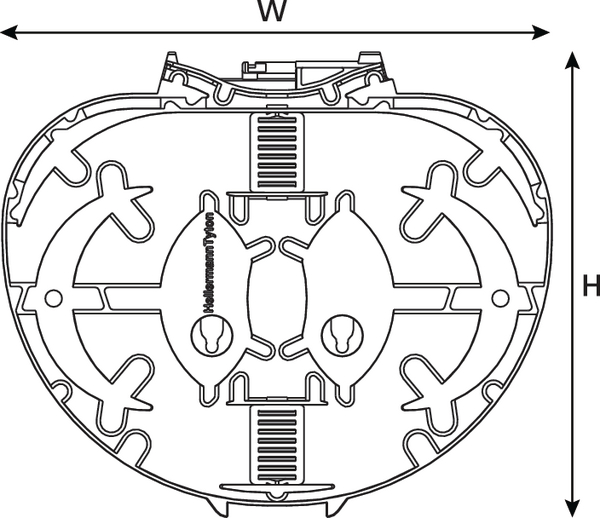

    Depth (D) 7mm
    Height (H) 125mm
    Recov. ∅ d max. 1.6mm
    Width (W) 148mm
    Country of Origin GB
    GTIN-13 / EAN 5022660100611
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.3kg
    ETIM 7.0 Key EC000762
    ETIM 8.0 Key EC000762
    ETIM 9.0 Key EC000762
    Show all
