SE-B-IR Splice Trays with ANT Splitter Splice Bridges
Art.-No. 857-40417 | TRAY-SE-IR-SP/ANT-06 |  Details

IR SE Tray with Splitter and ANT splice holders

    • Positive fibre management minimum bend radius 30mm
    • 2 fibre entry ports
    • Supplied with ANT and splitter/ANT bridge inserts
    • Optical splitter accommodation up to a maximum of 60 x 7 x 4mm
    • Maximum splice capacity of 14 fibres (heatshrink/3A)
    Show more
    Add to watchlist
    Downloads
    Colour White (WH)
    Content 6 x IR Single Element Trays, 6 x Crimp (ANT) and 6 x Splitter splice protector holders
    Material Acrylonitrile Butadiene Styrene (ABS)
    PART DESCRIPTION TRAY-SE-IR-SP/ANT-06
    Pack Cont. 6pcs.
    Package Content packed in bag
    Product Family IR Single Element Splitter SE-B
    Product Group Integrated Routing Fibre Optic Splice Tray
    Qty Trays 6
    Short Description SE-B-IR Splice Trays with ANT Splitter Splice Bridges

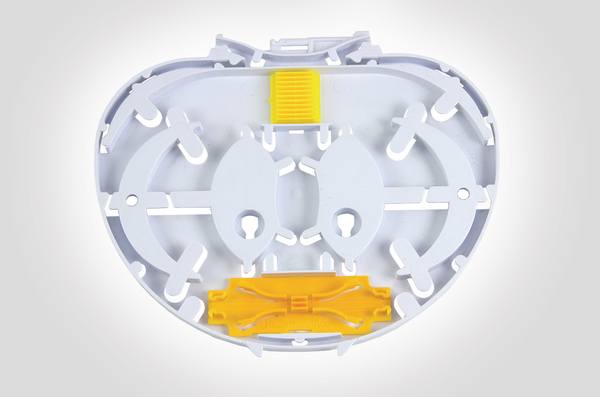

    Technical Description The Integrated Routing (IR) single element splitter tray is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 148 x 125 x 7mm. The IR single element splitter tray is supplied with an optical splitter/ANT splice bridge at the front, which will accommodate 2 x 60 x 7 x 4mm optical splitters, and a ANT bridge at the rear. The maximum splice capacity of the tray is 26 fibres. The IR single element splitter trays is suitable for use in the UFC-IR, FDN-IR and FML-IR closures and IR enclosures.
    Type TRAY-SE-IR-SP/ANT-06
    Type of Tray IR SE

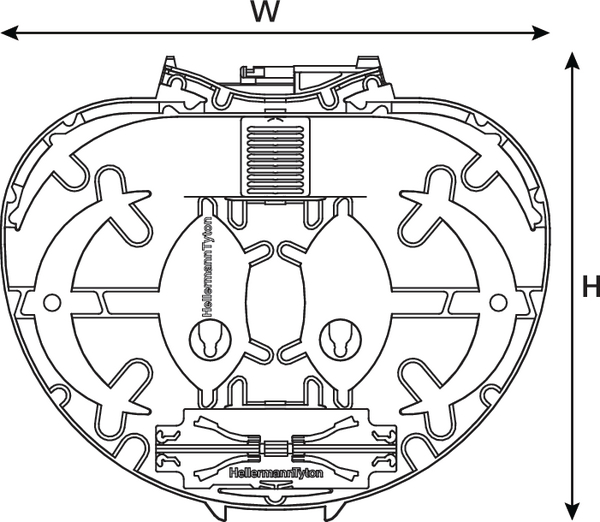

    Depth (D) 7mm
    Height (H) 125mm
    Width (W) 148mm
    Country of Origin GB
    GTIN-13 / EAN 5022660148910
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.3kg
    ETIM 7.0 Key EC000762
    ETIM 8.0 Key EC000762
    ETIM 9.0 Key EC000762
