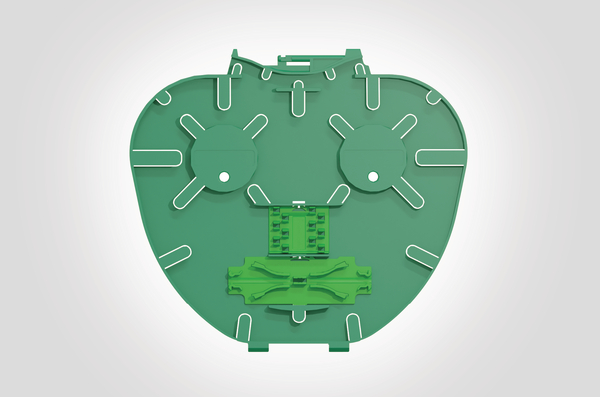

SE-MKII-IR Splice Trays with 3A Splice Bridges
Art.-No. 857-40641 | TRAY-SE-MKII-IR-GN-2X3A-06 |  Details

Green IR SE MKII Tray with 2 x 3A splice holders.

    • Positive fibre management - minimum bend radius 15mm
    • 2 fibre entry ports
    • 2 mounting positions for splice inserts fitted with 3A splice holders
    • Maximum splice capacity of 24 fibres (double stacked)
    Add to watchlist
    Downloads
    Colour Green (GN)
    Content 6 x Green IR Single Element MKII Trays, 12 x Heatshrink (3A) splice protector holders
    Material Acrylonitrile Butadiene Styrene (ABS)
    PART DESCRIPTION TRAY-SE-MKII-IR-GN-2X3A-06
    Pack Cont. 6pcs.
    Package Content packed in bag
    Product Family IR Single Element SE MKII
    Product Group Integrated Routing Fibre Optic Splice Tray
    Qty Trays 6
    Short Description SE-MKII-IR Splice Trays with 3A Splice Bridges
    Technical Description The Integrated Routing (IR) single element tray is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 150 x 124 x 7mm. The IR single element tray is fitted with 2 x 3A splice protector holders at the front of the tray for ease of fibre measurement and installation. The maximum splice capacity of the tray is based on 24 double stacked heatshrink (3A) splice protectors up to 60mm long. The IR single element tray is suitable for use in the UFC-IR, FDN-IR or FML-IR closures.
    Type TRAY-SE-MKII-IR-GN-2X3A-06
    Type of Tray Integrated Routing SE MKII
    Depth (D) 7mm
    Height (H) 124mm
    Recov. ∅ d max. 2.4mm
    Width (W) 150mm
    Country of Origin GB
    GTIN-13 / EAN 5022660174773
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.3kg
    ETIM 7.0 Key EC000762
    ETIM 8.0 Key EC000762
    ETIM 9.0 Key EC000762
