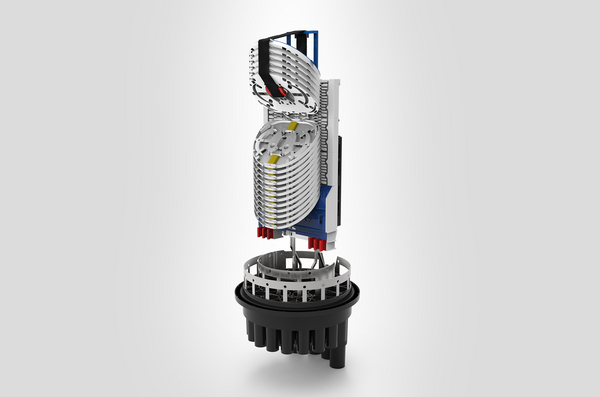

UFC IR BC length closure with basket and 18 SE-IR MKI trays with ANT/Crimp splice bridges
Art.-No. 857-02079 | UFCIR-BCBCSX | Details

Maximum 432 fibre splice capacity
28 round ports and 2 oval ports
Positive fibre management to ensure consistent 30mm minimum fibre bend radius throughout
Fibre storage basket for loop through applications
Bi-directional fibre routing
Supplied with 18 SE-IR MKI trays with ANT/Crimp splice bridges
Maximum 24 splices per tray without double stacking
Splitter accommodation
Cablelok compatible for all port sizes
Quick release cover
Optional pressure release valve

Add to watchlist

Distributors near you

Downloads

More products in this product group:

UFC Integrated Routing Closure >

Base Data

Colour	Black (BK)
Content	UFC IR Base Anchor Rings (Inner and Outer) BC-Length Cover (Dome) Quick Release Clamp Sealing ‘O’ Ring Fibre Storage Basket Fibre Optic Routing Module Fibre Optic Storage Unit Fibre Optic Storage Unit Lid Fibre Slot Entry Module Fibre Slot Retaining Block 18 x SE-IR Trays with Crimp/ANT Splice Bridges Tray Lid Tray Tool Anchor Fixing Kit (3) Reusable Cable Ties Spiral Binding Isopropyl Alcohol Wipes Desiccant Installation Guide Marker Kit Red Marker 1 – 12 Green Marker 1 – 12
Cover Type	BC
Material	Polypropylene (PP)
Method of Sealing	Cablelok
PART DESCRIPTION	UFCIR-BCBCSX
Package Content packed in	box
Port	L, LM, T, S, B
Port count	1, 1, 2, 10, 16
Product Family	BC Length Single Stack with Basket
Product Group	UFC Integrated Routing Closure
Qty Trays	18
Short Description	UFC IR BC length closure with basket and 18 SE-IR MKI trays with ANT/Crimp splice bridges
Splice Capacity	432
Technical Description	The UFC Integrated Routing (IR) BC Length Single Stack closure with basket is available with a Cablelok (Polypropylene) or Heatshrink (Flame Retardant Polypropylene) base. The base configuration of 28 round ports and 2 oval ports covers a cable diameter range of 4.0 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and the backplane is an aluminium extrusion which manages 18 SE-IR MKI Crimp/ANT Splice Trays. The position of the mounting system allows easy access for the routing of the fibre on to the trays and the basket provides storage space for the storage of fibre loops. The trays and fibre optic routing module are white which makes it easy to see the colour of the fibre elements as they are routed through the positive fibre management system. Fibre slot retaining blocks guide fibre elements in to the IR system, the foam pad on the retainer is partially cut through to accommodate a range of fibre counts. All IR system cover plates are coloured blue identifying them as removable parts allowing access to the fibre, the fibre slot retaining block and tray retaining clips are coloured red to aid in identification if they are dropped.
Type	UFCIR-BCBCSX
Type of Tray	Integrated Routing SE, 250µm
Variant	Outdoor FTTx Enclosures

Product Dimensions

Length (mm)	598mm
Width D1	275mm
Width D2	310mm

Downloads

Specifications

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660175190
Packaging 1 - Height (m)	0.313m
Packaging 1 - Length (m)	0.728m
Packaging 1 - Qty	1
Packaging 1 - Type	box
Packaging 1 - Volume (m³)	0.07337m³
Packaging 1 - Weight (kg)	7.2kg
Packaging 1 - Width (m)	0.322m
