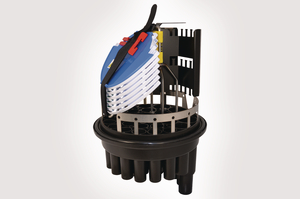

UFC A length tubed closure with basket and 6 x SMF SE-A 3A splice trays
Art.-No. 857-00694
| UFCTB-AXBCH1X
|
Details
- Maximum 144 fibre splice capacity when using NZDF SE-A trays
- 28 round ports and 2 oval ports
- Supplied with 6 x SMF SE-A 3A Splice Trays
- Fibre storage basket for loop through applications
- Maximum 24 splices per tray
- Cablelok compatible for all port sizes
- Quick release cover
- Optional flash test valve and/or grounding feed-through
More products in this product group:
| Colour | Black (BK) |
| Content |
UFC Base Anchor Rings (Inner and Outer) A-Length Cover (Dome) Quick Release Clamp Sealing ‘O’ Ring Fibre Storage Basket Tray Support Frame Anchor Fixing Kit (3) 6 x SMF SE-A 3A Splice Trays Tray Tool Hook and Loop Tray Securing Straps Transportation Tubing Tubefix – Tube to Tray Securing Blocks Hook and Loop Management Ties Isopropyl Alcohol Wipes Desiccant Installation Guide Marker Kit Red Marker 1 – 12 Green Marker 1 – 12 |
| Cover Type | A |
| Method of Sealing | Cablelok |
| PART DESCRIPTION | UFCTB-AXBCH1X |
| Package Content packed in | kit |
| Port | L, LM, T, S, B |
| Port count | 1, 1, 2, 10, 16 |
| Product Family | A Length Single Stack with Basket |
| Product Group | UFC Tubed Closure |
| Qty Trays | 6 |
| Short Description | UFC A length tubed closure with basket and 6 x SMF SE-A 3A splice trays |
| Technical Description | The UFC A Length Single Stack closure with Basket is available with a Cablelok (Polypropylene) or Heatshrink (ABS/PA) base. The base configuration of 28 round ports and 2 oval ports covers a cable diameter range of 4.0 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting and support system is manufactured from Grade 304 stainless steel and is supplied 6 x SMF SE-A trays giving a maximum of 144 fibre splices. The tubed closure and position of the mounting system allows for ease of access and traceability of the fibre into the trays and the basket provides storage space for the storage of fibre loops. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and into the trays. |
| Type | UFCTB-AXBCH1X |
| Type of Tray | Hellipse SMF SE-A |
